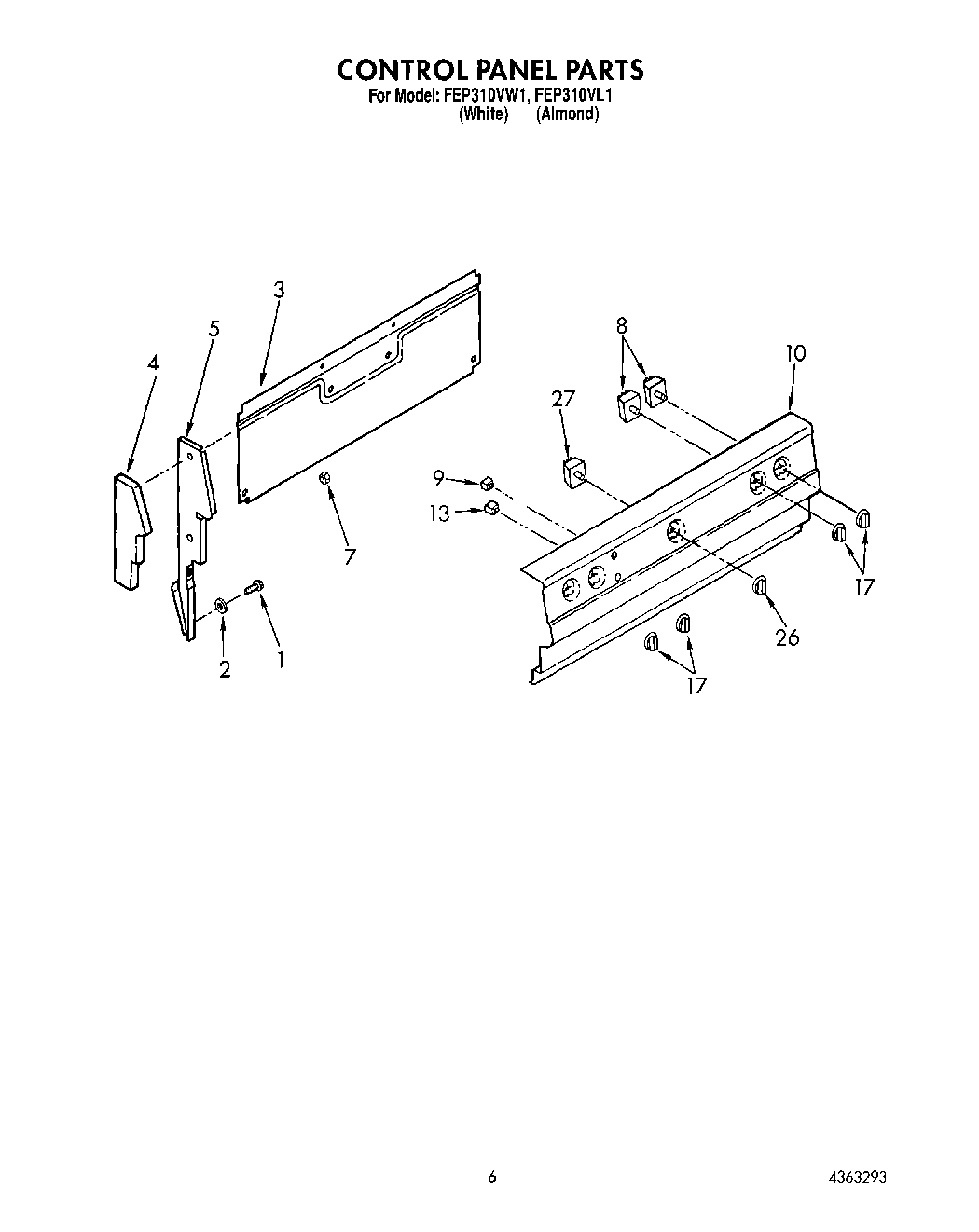

FEP310VL1 04 – CONTROL PANEL, LITERATURE

Products

PositionProduct
Installation Guide
Use & Care Manual
1WP308685 Whirlpool Microwave Screw
2Spacer (2)
3Cover, Wire
4End Cap (Right)
4End Cap (Left)
5Support, Backguard (Right)
5Support, Backguard (Left)
7WP308499 Whirlpool Nut
8W10900107 Whirlpool Oven Surface Element Switch
9Indicator Light, Burner
10Panel, Control (White)
10Panel, Control (Almond)
13Light, Indicator Oven
17Knob, Burner (4)
26Knob, Thermostat
27Thermostat
