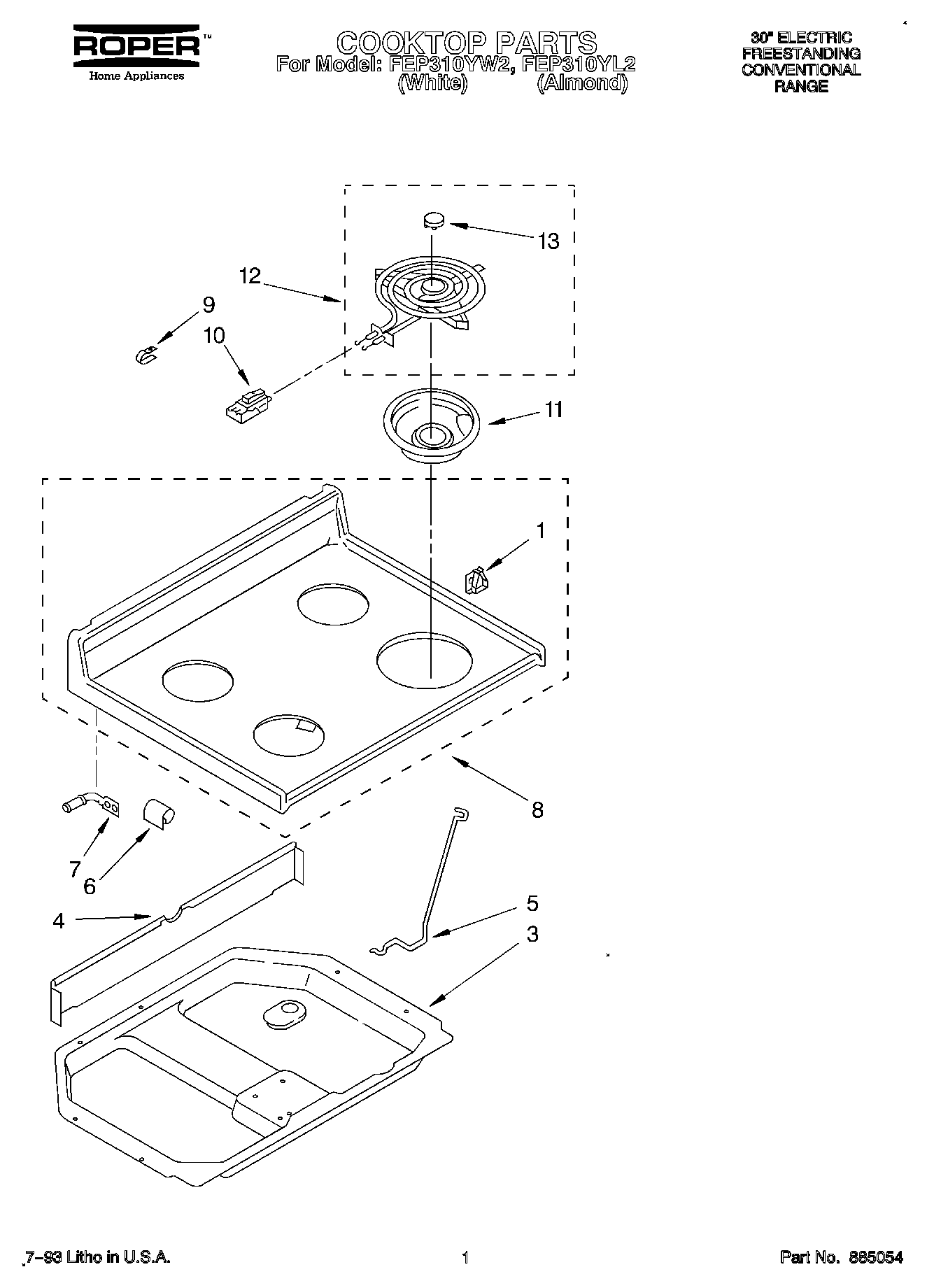

FEP310YW2 01 – COOKTOP, LITERATURE

Products

PositionProduct
Guide, Use & Care
Instructions, Installation
WPL LIT3150655
WP660533 Whirlpool Oven 8" Surface Element
WPL LIT3150400
1Nut (4)
1814103 Whirlpool Clip
1WP487887 Whirlpool Refrigerator Screw
3Box, Burner
3WP3390631 Whirlpool Screw
4Shield, Wiring
5Rod, Cooktop
6Bracket, Cooktop (2)
7Pin, Cooktop (2)
8Cooktop (White)
8Cooktop (Almond)
9WP308605 Whirlpool Refrigerator Clamp
9SCREW
10WP313808 Whirlpool Screw
10WP4332752 Whirlpool Clip
11WPW10196406 Whirlpool 6" Chrome Drip Bowl
11DRIP BOWL 8" W/HOLE CHROME
12WP660532 Whirlpool Oven Surface Element
13Medallion (4)
