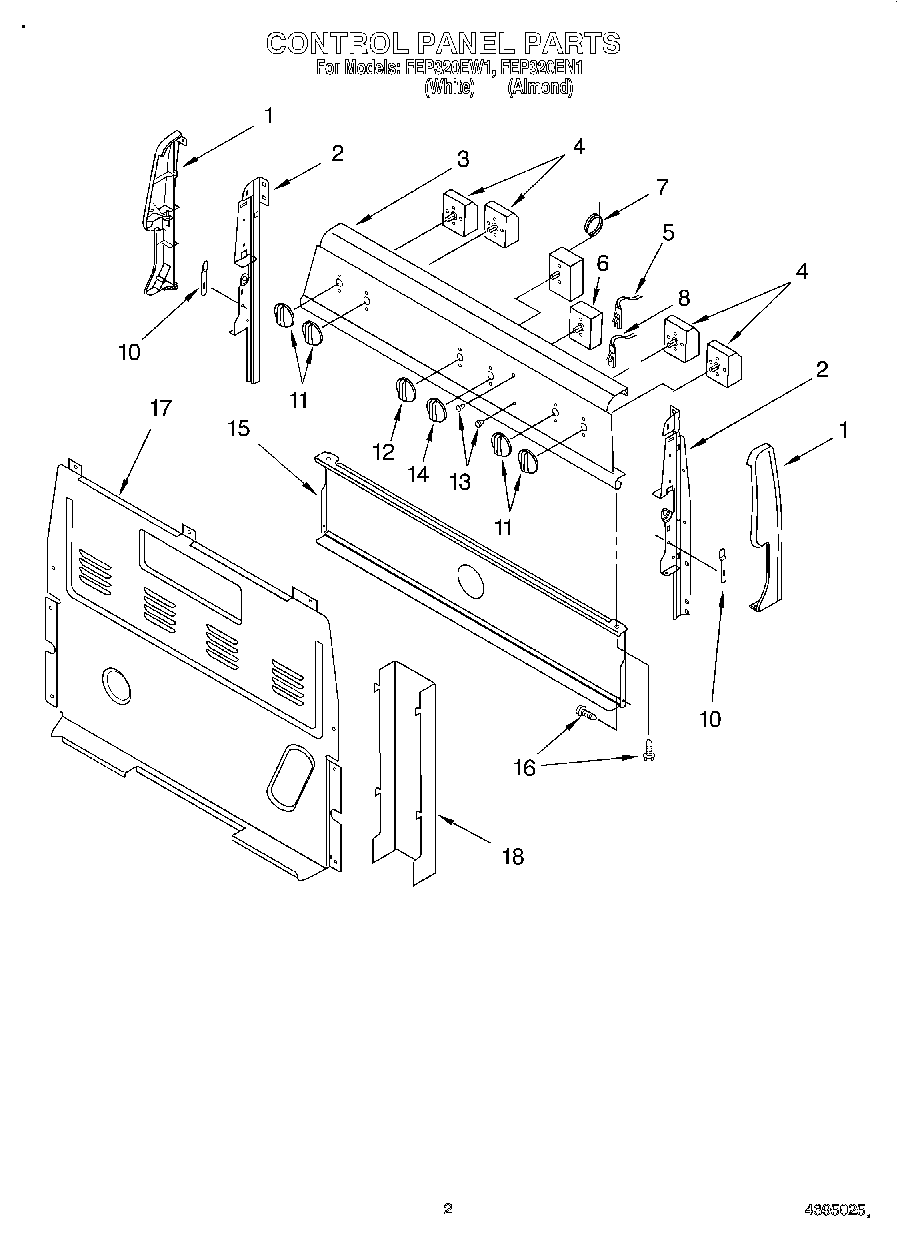

FEP320EN1 02 – CONTROL PANEL

Products

PositionProduct
1Endcap (Right Hand)
1Endcap (Left Hand)
2Support, Endcap (Left Hand)
2Support, Endcap (Right Hand)
3Panel, Backguard
4SWITCH-INF
4WP3149404 Whirlpool Oven Surface Element Switch
5Indicator, Surface
6Switch, Infinite (Screw (8))
6WP3188987 Whirlpool Oven Switch
7WP3196803 Whirlpool Oven Thermostat
7WP3196170 Whirlpool Screw
8Light, Indicator (250V)
103196200 Whirlpool Clip
11WP3196027 Whirlpool Knob
12WP3196048 Whirlpool Knob
13WP3196068 Whirlpool Light Lens
14Knob, Selector
15Shield, Heat
16Screw
17WP8272473 Whirlpool Rear Cover
18WPW10326122 Whirlpool Black Cover
18SCREW
