| Repair Parts List |
| Guide, Use & Care |
| Instructions, Installation |
| WPL LIT3150655 |

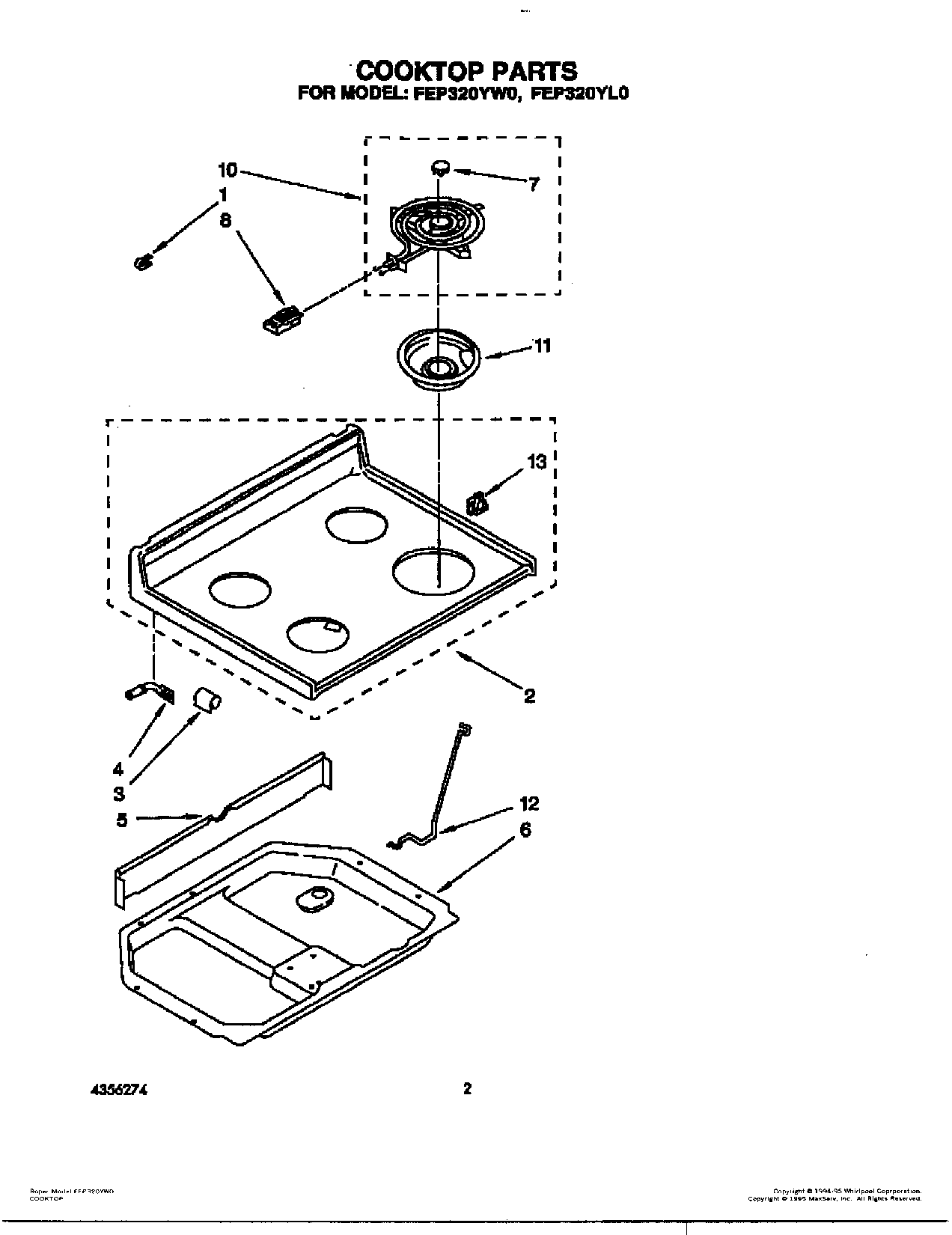

| 1 | WP308605 Whirlpool Refrigerator Clamp |
| 2 | Cooktop (Almond) |
| 2 | Cooktop (White) |
| 3 | Bracket, Cooktop (2) |
| 4 | Pin, Cooktop (2) |
| 5 | Shield, Wiring |
| 5 | SCREW |
| 6 | Box, Burner |
| 6 | WP3390631 Whirlpool Screw |
| 7 | Medallion (4) |
| 8 | WP313808 Whirlpool Screw |
| 8 | WP4332752 Whirlpool Clip |
| 10 | WP660533 Whirlpool Oven 8" Surface Element |
| 10 | WP660532 Whirlpool Oven Surface Element |
| 11 | WPW10196406 Whirlpool 6" Chrome Drip Bowl |
| 11 | DRIP BOWL 8" W/HOLE CHROME |
| 12 | Rod, Cooktop |
| 13 | 814103 Whirlpool Clip |
| 13 | WP487887 Whirlpool Refrigerator Screw |
| 13 | Nut (4) |
