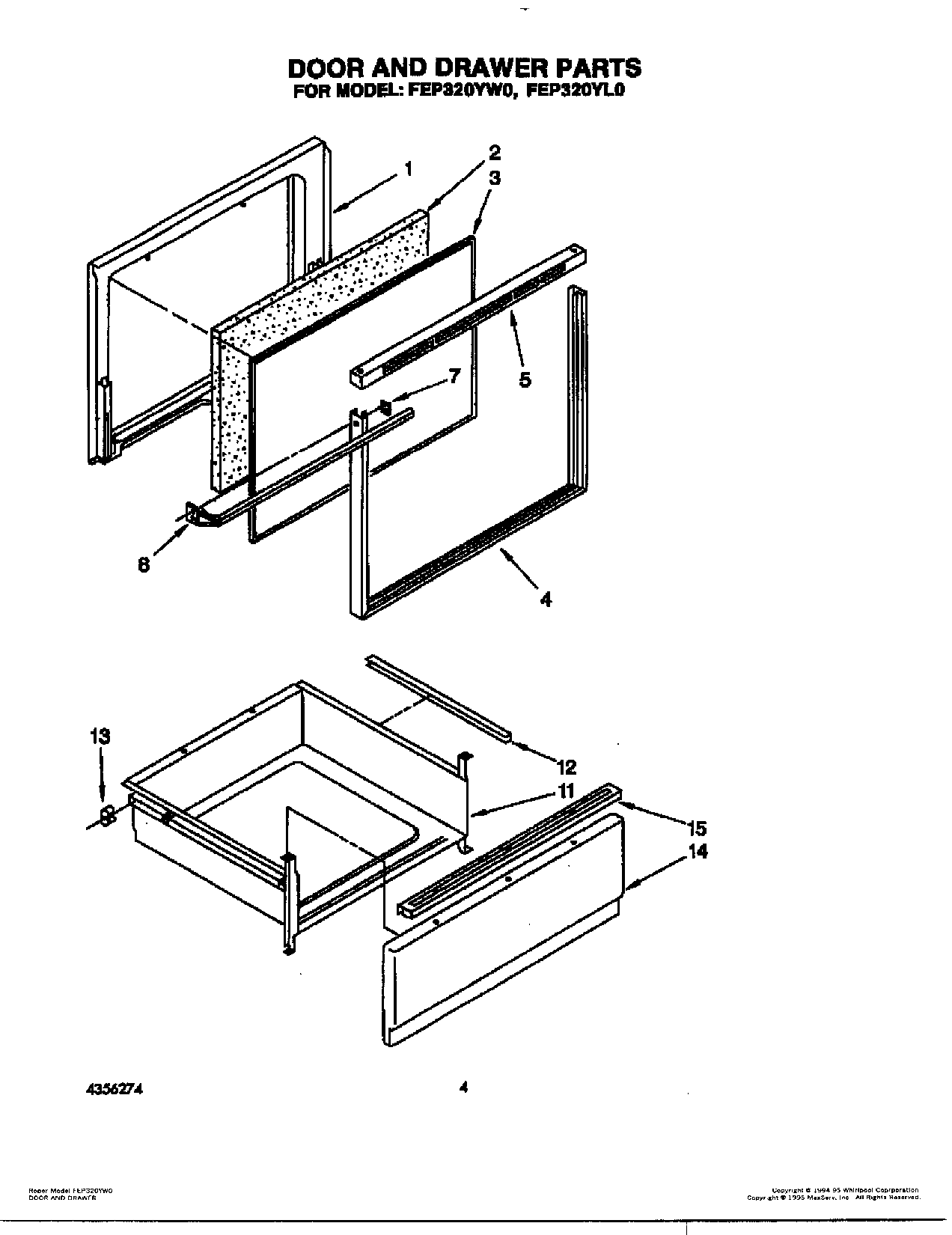

FEP320YL0 04 – DOOR AND DRAWER

Products

Position	Product
1	Liner, Door
2	WPW10208653 Whirlpool Insulation
2	Screw, 10A x 1/2 (2) (Black)
3	Panel, Door (Black Glass)
4	Frame, Panel (Black Model)
5	Back Splash (Screw (4) 10AB x 1/2“)
5	Top, Door (Black Model)
7	Clip, Mtg (2)
8	Handle, Door
8	Handle, Door (Screw (4))
11	Drawer, Utility
12	Protector, Drawer (2)
13	Glide, Rear (2)
14	Panel Drawer (Black)
14	WP488627 Whirlpool Refrigerator Screw
15	Screw
15	Handle, Drawer
