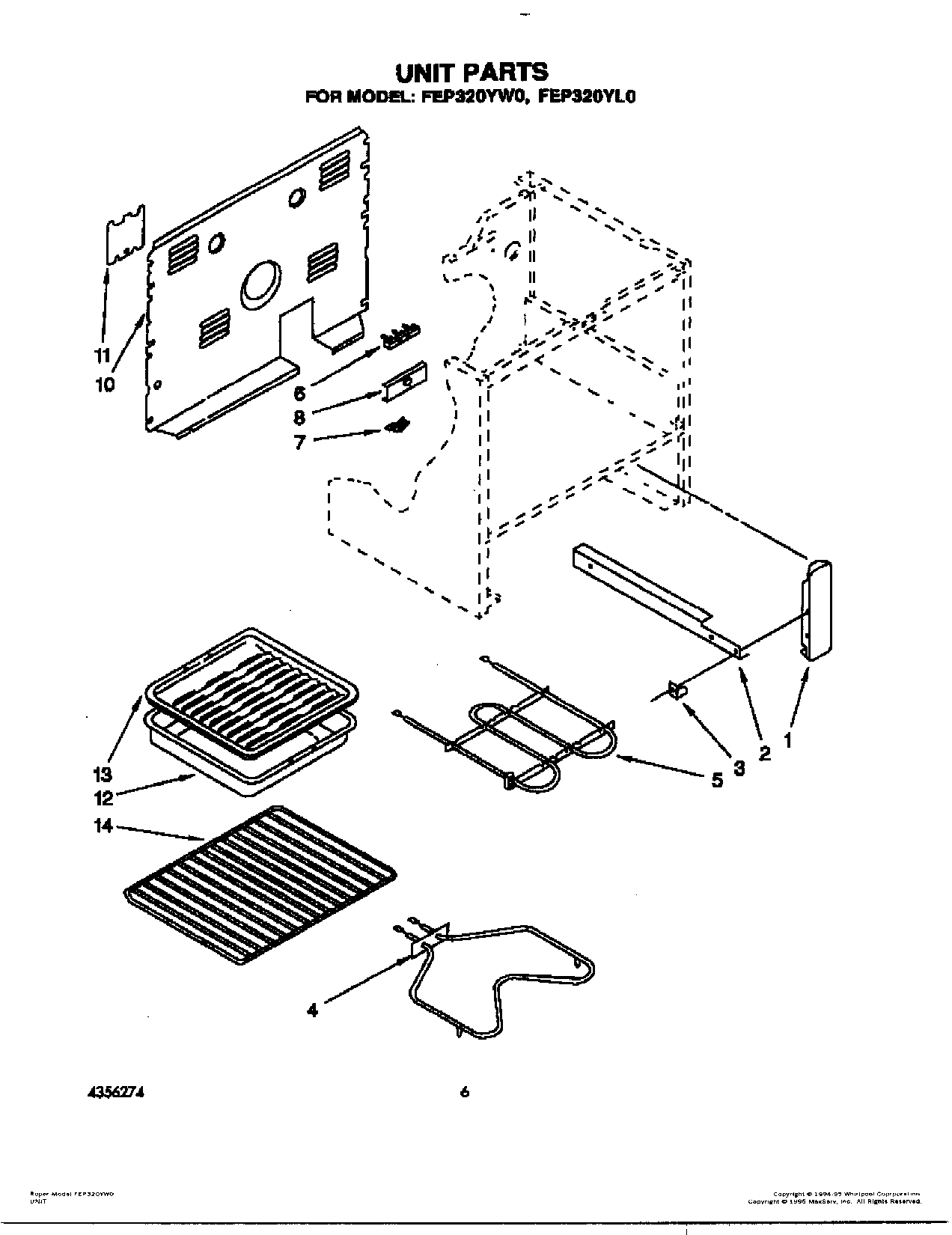

FEP320YL0 06 – UNIT

FEP320YL0 06 – UNIT

Written by

in

FEP320YL0 06 – UNIT

Products

Position	Product
1	Bracket, Mounting (2)
2	Screw, 10A x 1/2 (2) (Black)
2	Rail L.H. (Includes Illus. 3)
2	Rail R.H. (Includes Illus. 3)
3	Glide, Front (2)
4	ELMNT-BAKE
5	Screw (2)
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6	WP8203546 Whirlpool Terminal Block
6	WP112432 Whirlpool Nut Assembly
6	Screw, (2) 10-16 x 1
7	Clip, Ground Wire
7	WPL 308498
8	Bracket, Service
10	Cover, Rear
11	SCREW
11	Cover, Service
13	4396923 Whirlpool Broil Pan Set Gray Porcelain
14	Wire (14 Ga. 150 c Brown)
14	Wire (14 Ga. 150 c Blue)
14	Wire (14 Ga. 150 c Green)
14	242831 Whirlpool Oven Wire
14	Wire (14 Ga. 150 c Orange)
14	WPL 308173
14	Wire (14 Ga. 150 c Yellow)
14	Wire (12 Ga. 150 c Black)
14	72113 Whirlpool Touch-Up Paint
14	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
14	Grease
14	8212471 Whirlpool Oven Paint
14	Leveler (Thinner) (2oz.)
14	1
14	Wire (14 Ga. 200 c Brown)
14	18 Ga. 80~c Rating (Red)
14	Insulation, Wrap
14	Wire, 25` Roll (Red 14 Ga.)
14	Enamal, Toast (1 Qt. Uncut)
14	Paint, Spray (13 Oz.) (Platinum)
14	Toast
14	Golden Harvest (Uncut)
14	Golden Harvest
14	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
14	Almond (Uncut)
14	WP72107 Whirlpool Touchup
14	799344 Whirlpool Refrigerator Paint
14	72017 Whirlpool Appliance Touch-Up Paint White
14	350956 Whirlpool Spray Assembly
14	Platinum (Uncut)
14	WPL 72112
14	350942 Whirlpool Spray Paint
14	Paint, Spray 13 Oz. (Avocado)
14	paint, spray 13 oz. (coffee)
14	Paint, Touch-Up 1/2 Oz. (Coffee)
14	72109 Whirlpool Dacor Avocado Touch-Up Paint
14	285006 Whirlpool Spray
14	Wire, 25“ Roll (White 14 GA.)
14	Wire, 25` Roll (Black 14 Ga.)
14	FOIL, ALUMINUM OVEN (18“ X 25 )
14	WPW10208653 Whirlpool Insulation
14	WPL 799832
14	511873 Whirlpool Refrigerator Paint
14	350930 Whirlpool White Spray Paint
