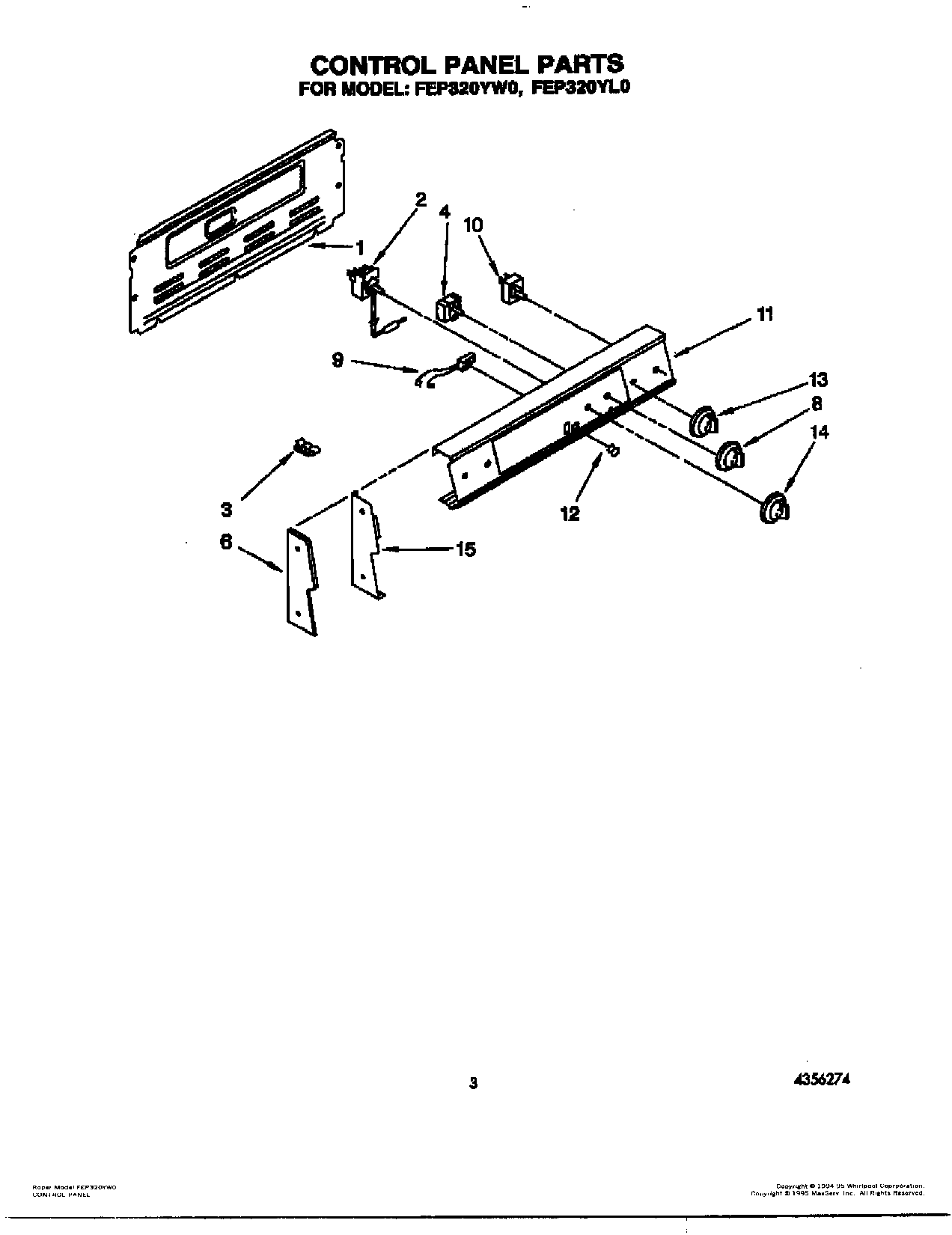

FEP320YW0 03 – CONTROL PANEL

Products

Position	Product
1	Harness-Conduit Asm.
2	Thermostat, Oven (Alt.)
2	WP313808 Whirlpool Screw
2	Thermostat, Oven (Alt.)
2	Thermostat, Oven
3	Clip, Tube
4	Switch, Selector
6	End Cap L.H.
6	End Cap R.H.
6	WP3390631 Whirlpool Screw
6	Screw
6	SCREW
8	Knob, Selector
9	Light, Indicator (250V)
9	Light, Indicator (Surface Unit On)
10	WP3149404 Whirlpool Oven Surface Element Switch
10	SWITCH-INF
10	WP486579 Whirlpool Air Conditioner Screw
11	Panel, Control
12	Lens, Amber
13	WP3149983 Whirlpool Knob
14	Knob, Temperature
15	WP965173 Whirlpool Dishwasher Screw
15	SHIELD (LH-White/Almond)
15	SHIELD (RH-White/Almond)
