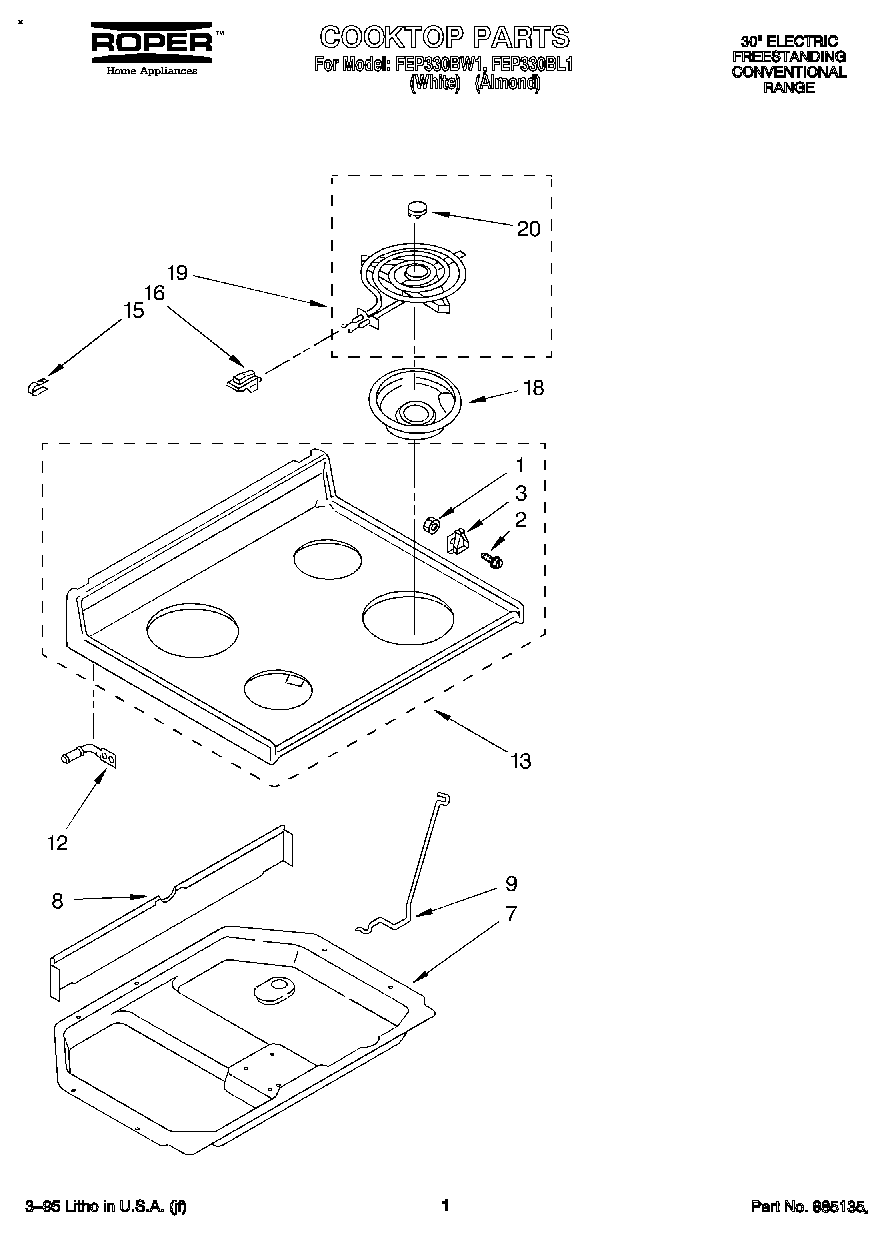

FEP330BL1 01 – COOKTOP

Products

PositionProduct
1Nut (4)
2WP487887 Whirlpool Refrigerator Screw
3814103 Whirlpool Clip
7WP3390631 Whirlpool Screw
7Box, Burner
8Shield, Wiring
9Rod, Cooktop
12Pin, Cooktop (2)
13Cooktop (White)
13Cooktop (Almond)
15WP308605 Whirlpool Refrigerator Clamp
15SCREW
16Screw, 6-32 x 9/32 (4)
16WP4332752 Whirlpool Clip
18DRIP BOWL 8" W/HOLE CHROME
18WPW10196406 Whirlpool 6" Chrome Drip Bowl
19WP660532 Whirlpool Oven Surface Element
19WP660533 Whirlpool Oven 8" Surface Element
20Medallion (4)
