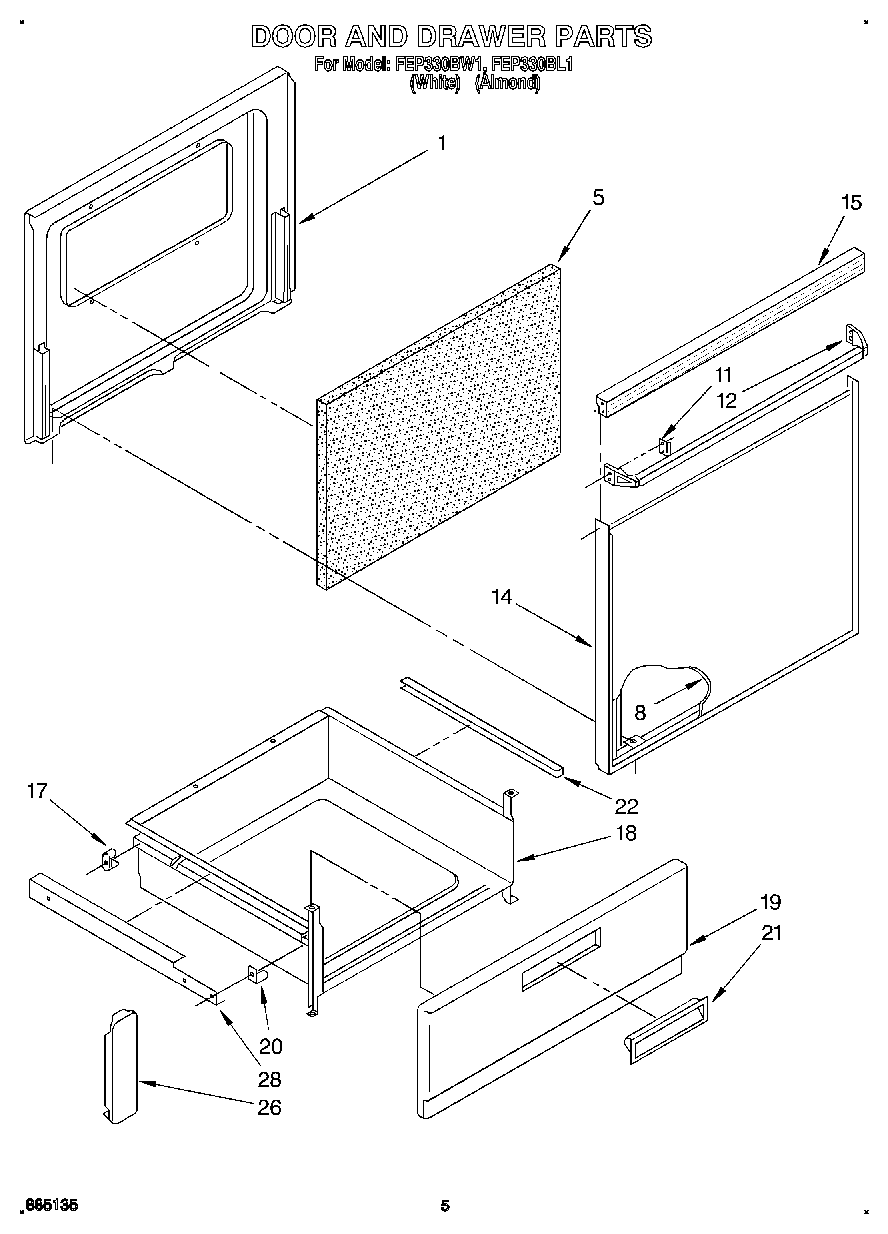

FEP330BL1 04 – DOOR AND DRAWER

Products

PositionProduct
1Liner, Door
5WPW10208653 Whirlpool Insulation
8Panel, Door (Black Glass)
11Clip, Mtg (2)
12WP308499 Whirlpool Nut
12Handle, Door (White/Almond)
14Handle, Door (Screw (4))
14Frame, Door (Black)
15Top, Door Vent
17WP308685 Whirlpool Microwave Screw
17Glide, Rear (2)
18Drawer, Utility
19Panel, Drawer (Black)
19WP488627 Whirlpool Refrigerator Screw
20Glide, Front (2)
21Handle, Drawer
21Grill, Bottom (Screw (3))
22Protector, Drawer (2)
26Bracket, Mounting (2)
28Rail R.H. (Includes Illus. 3)
28Screw, 10A x 1/2 (2) (Black)
28Rail L.H. (Includes Illus. 3)
