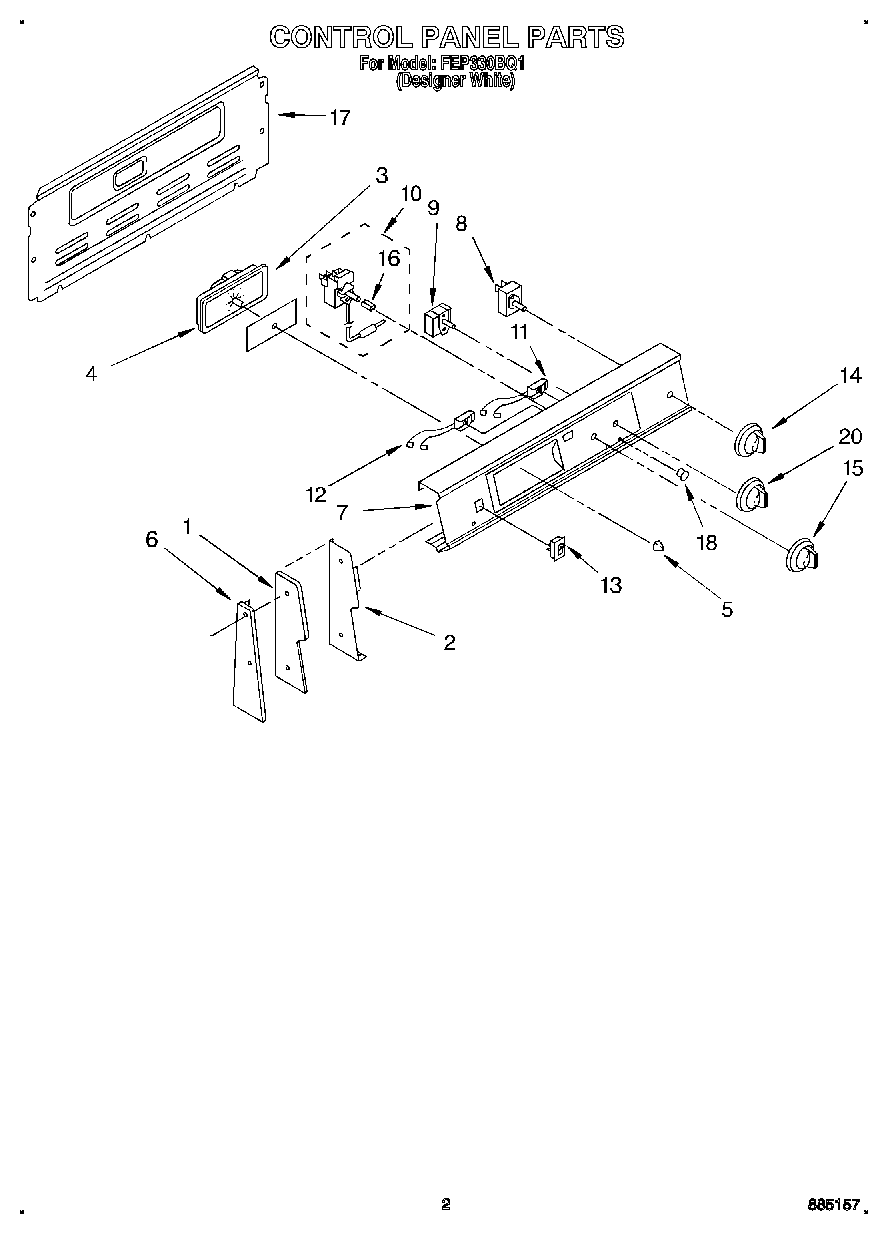

FEP330BQ1 02 – CONTROL PANEL

Written by

Products

Position	Product
1	End Cap R.H.
1	End Cap L.H.
1	Screw,
2	Shield (2)
3	Timer, Control (Designer White Mdl)
3	WP965173 Whirlpool Dishwasher Screw
4	Glass, Timer
5	WP3169181 Whirlpool Knob
6	Panel, Control (White)
6	End Trim (LH, Designer White)
6	End Trim R.H. (Designer White)
7	(Designer Model)
8	SWITCH-INF
8	WP3149404 Whirlpool Oven Surface Element Switch
9	Switch, Selector
9	Screw, 8-32 x 3/16 (2)
10	WP313808 Whirlpool Screw
10	Thermostat, 0ven
11	Light, Indicator (250V)
12	Light, Indicator (Includes No. 12) (Surface Unit On)
13	3149360 Whirlpool Light Switch
14	WP3149983 Whirlpool Knob
15	Knob, Temperature (Designer Mdl)
16	WPL 3169525
17	Rear Cover Contr
17	SCREW
18	Lens, Amber
20	Knob, Selector (Designer Mdl)
