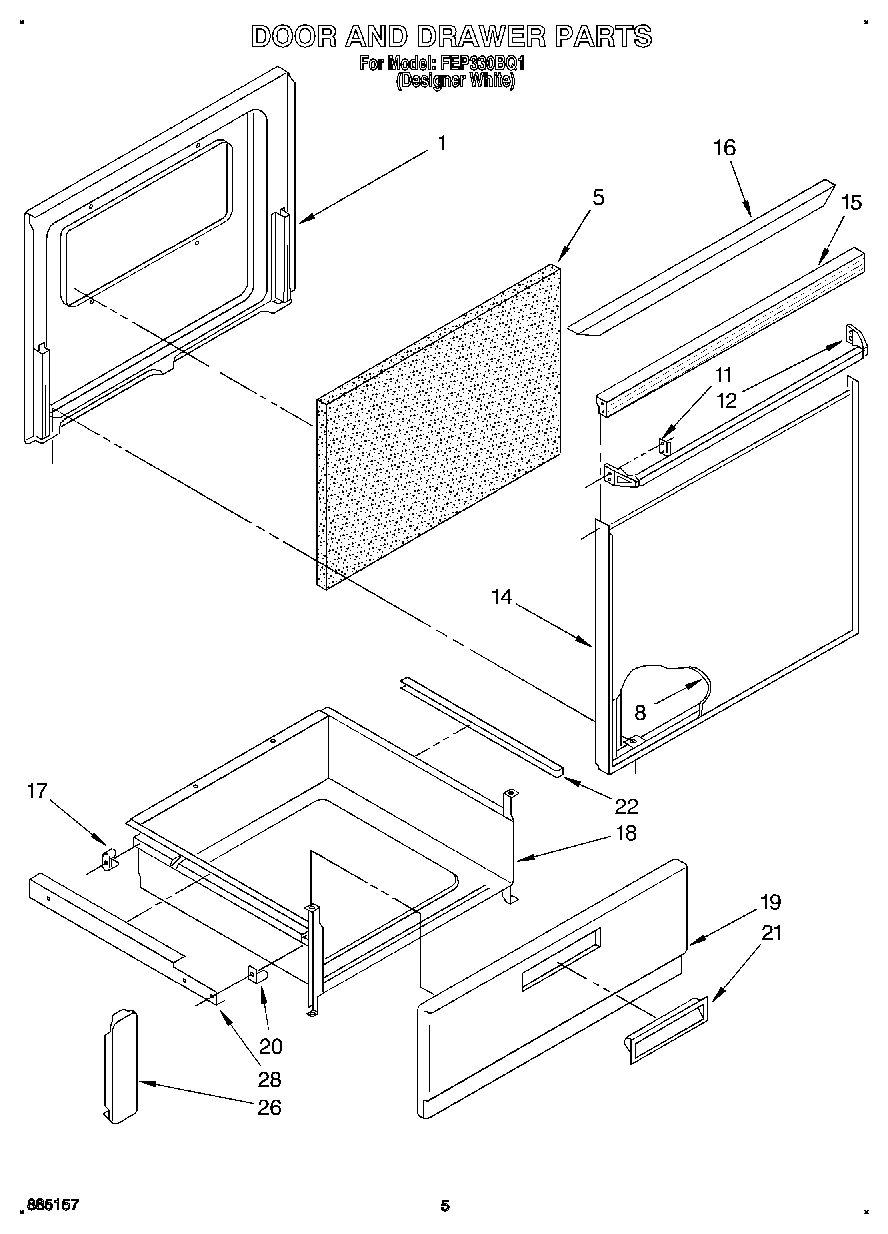

FEP330BQ1 04 – DOOR AND DRAWER

Products

Position	Product
1	Liner, Door
5	WPW10208653 Whirlpool Insulation
8	Outer Glass Panel (Designer White)
11	Clip, Mtg (2)
12	Handle, Door
12	WP308499 Whirlpool Nut
14	Handle, Door (Screw)
14	Frame, Door (White)
15	Top, Door
16	Top, Door Frame (Screw (2))
16	Cap, Top (Designer White)
17	Glide, Rear (2)
17	WP308685 Whirlpool Microwave Screw
18	Drawer, Utility
19	Panel, Drawer (White)
19	WP488627 Whirlpool Refrigerator Screw
20	Glide, Front (2)
21	Handle, Snap-In (White)
22	Protector, Drawer (2)
26	Bracket, Mounting (2)
28	Rail L.H. (Includes Illus. 3)
28	Rail R.H. (Includes Illus. 3)
28	Screw, 10A x 1/2 (2) (Black)
