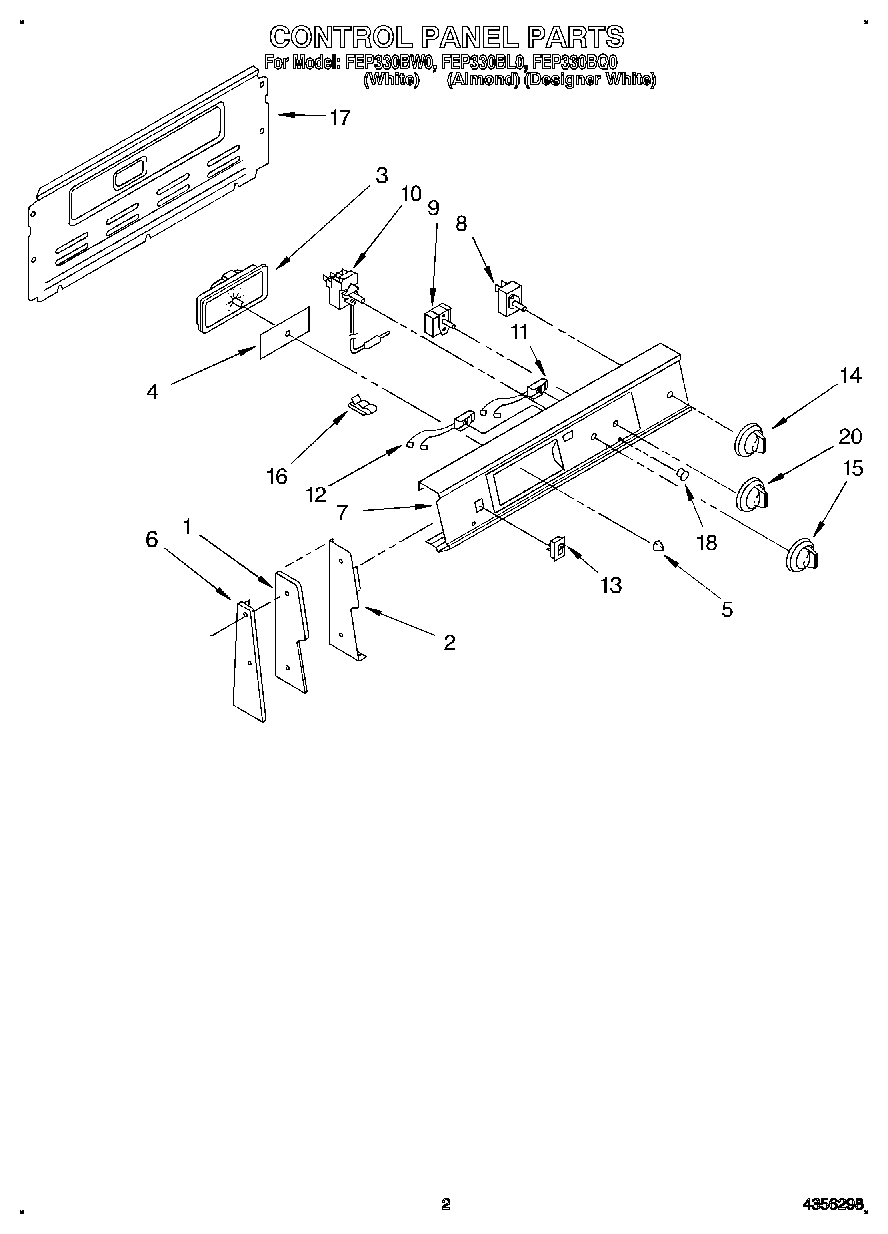

FEP330BW0 02 – CONTROL PANEL

Products

Position	Product
1	End Cap R.H.
1	Screw,
1	End Cap, R.H. (White/Almond/Gold)
1	End Cap L.H.
1	End Cap, R.H. (White/Almond/Gold)
2	Shield (2)
3	WP965173 Whirlpool Dishwasher Screw
3	Timer, Clock
3	Timer, Control (Designer White Mdl)
4	Glass, Timer
5	WP3169181 Whirlpool Knob
6	Screw 10-32×1“
6	End Trim R.H. (Black)
6	Panel, Control (Screw, 8-18 x 5/8 (4))
6	End Trim (LH, Black)
6	Screw 10-32×7/16“
7	(Designer Model)
7	Panel, Control
8	WP3149404 Whirlpool Oven Surface Element Switch
8	SWITCH-INF
9	Screw, 8-32 x 3/16 (2)
9	Switch, Selector
10	Thermostat, 0ven
10	WP313808 Whirlpool Screw
11	Light, Indicator (250V)
12	Light, Indicator (Includes No. 12) (Surface Unit On)
13	3149360 Whirlpool Light Switch
13	WP4314961 Whirlpool Lite Switch
14	WP3149983 Whirlpool Knob
15	Knob, Temperature (Designer Mdl)
15	Knob, Temperature
16	Clip, Tube
17	Rear Cover Contr
17	SCREW
18	Lens, Amber
20	Knob, Selector (Designer Mdl)
20	Knob, Selector
