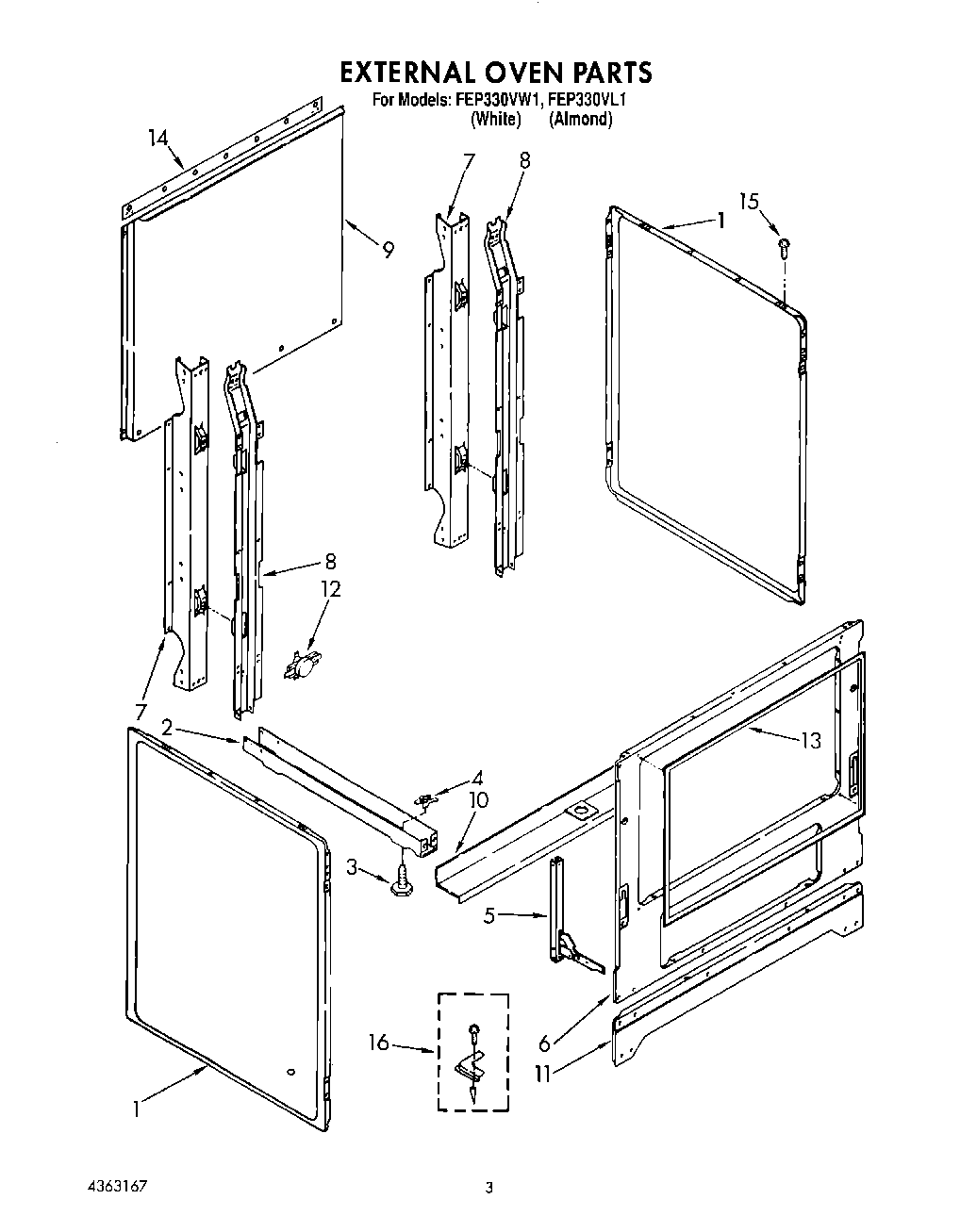

FEP330VL1 02 – EXTERNAL OVEN

FEP330VL1 02 – EXTERNAL OVEN

Written by

in

FEP330VL1 02 – EXTERNAL OVEN

Products

PositionProduct
1Panel, Side (2) (White)
1Panel, Side (2) (Almond)
2Rail, Base (2)
3Leg, Leveler (4)
4Nut (4)
5Hinge
6Main Front
7Support, Rear (2)
8Support, Main (2)
9Main Back
10Support, Oven
11Base, Front
12Disc, Thermo
13Seal, Door (2)
14Cover, Rear
15Locator stud (2)
16Anti-Tip Kit
