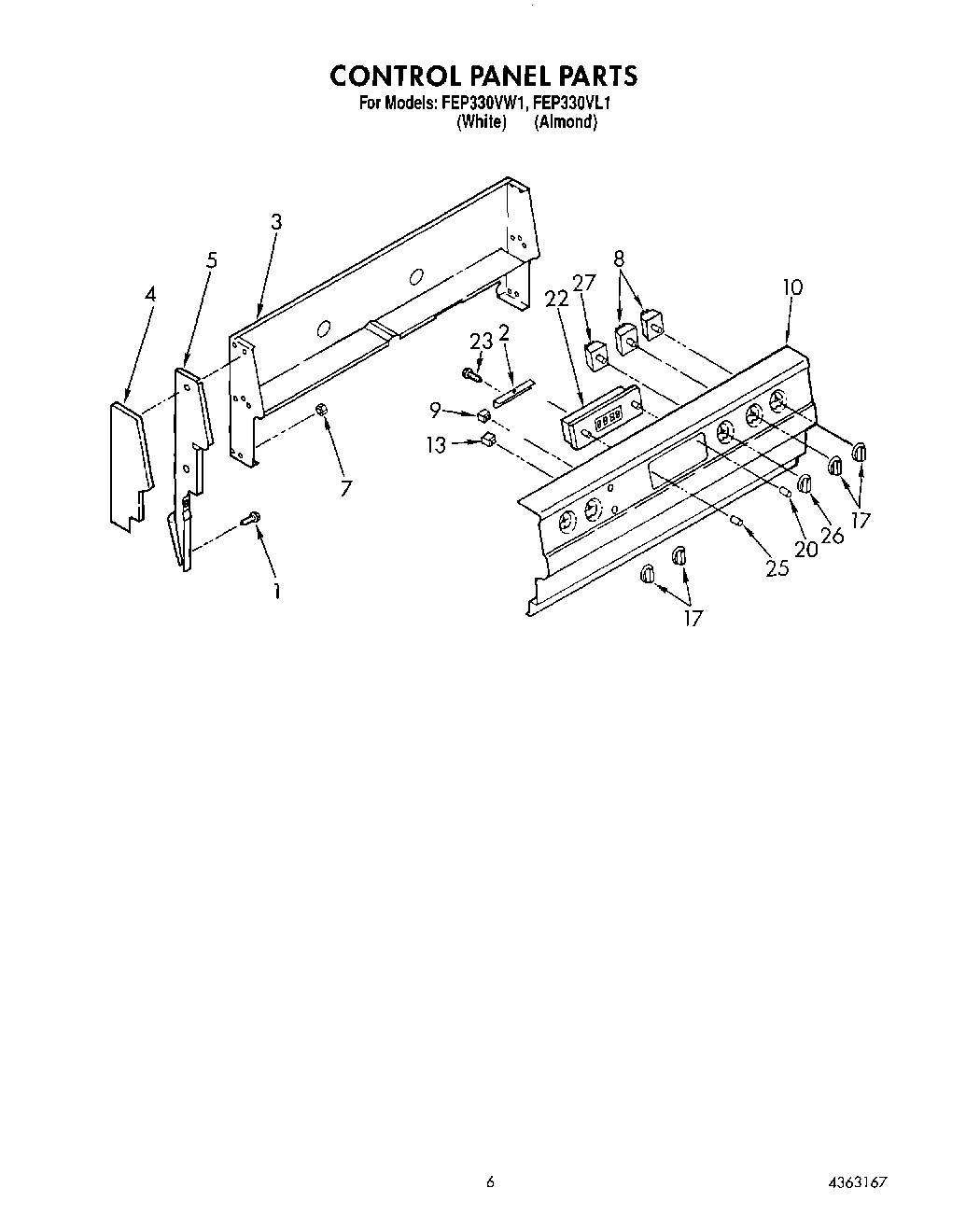

FEP330VL1 04 – CONTROL PANEL, LIT/OPTIONALadmin2025-04-26T11:37:55+00:00FEP330VL1 04 – CONTROL PANEL, LIT/OPTIONAL
Products
| Position | Product |
|---|
| Use & Care Manual |
| Installation Guide |
| Repair Parts List |
| 1 | WP308685 Whirlpool Microwave Screw |
| 2 | Bracket, Timer Support (2) |
| 3 | Cover, Wire |
| 4 | End Cap (Left) |
| 4 | End Cap (Right) |
| 5 | Support, Backguard (Right) |
| 5 | Support, Backguard (Left) |
| 7 | WP308499 Whirlpool Nut |
| 8 | W10900107 Whirlpool Oven Surface Element Switch |
| 9 | Indicator Light, Burner |
| 10 | Backguard (White) |
| 10 | Backguard (Almond) |
| 13 | Light, Indicator Oven |
| 17 | Knob, Burner (4) |
| 20 | Knob, Clock |
| 22 | Clock/Oven Control With Lens |
| 23 | WP488729 Whirlpool Refrigerator Door Screw |
| 25 | Knob, Set |
| 26 | Knob, Thermostat |
| 27 | Thermostat |
