FEP330YW0 05 – DOOR AND DRAWER, LIT/OPTIONAL

FEP330YW0 05 – DOOR AND DRAWER, LIT/OPTIONAL

Written by

in

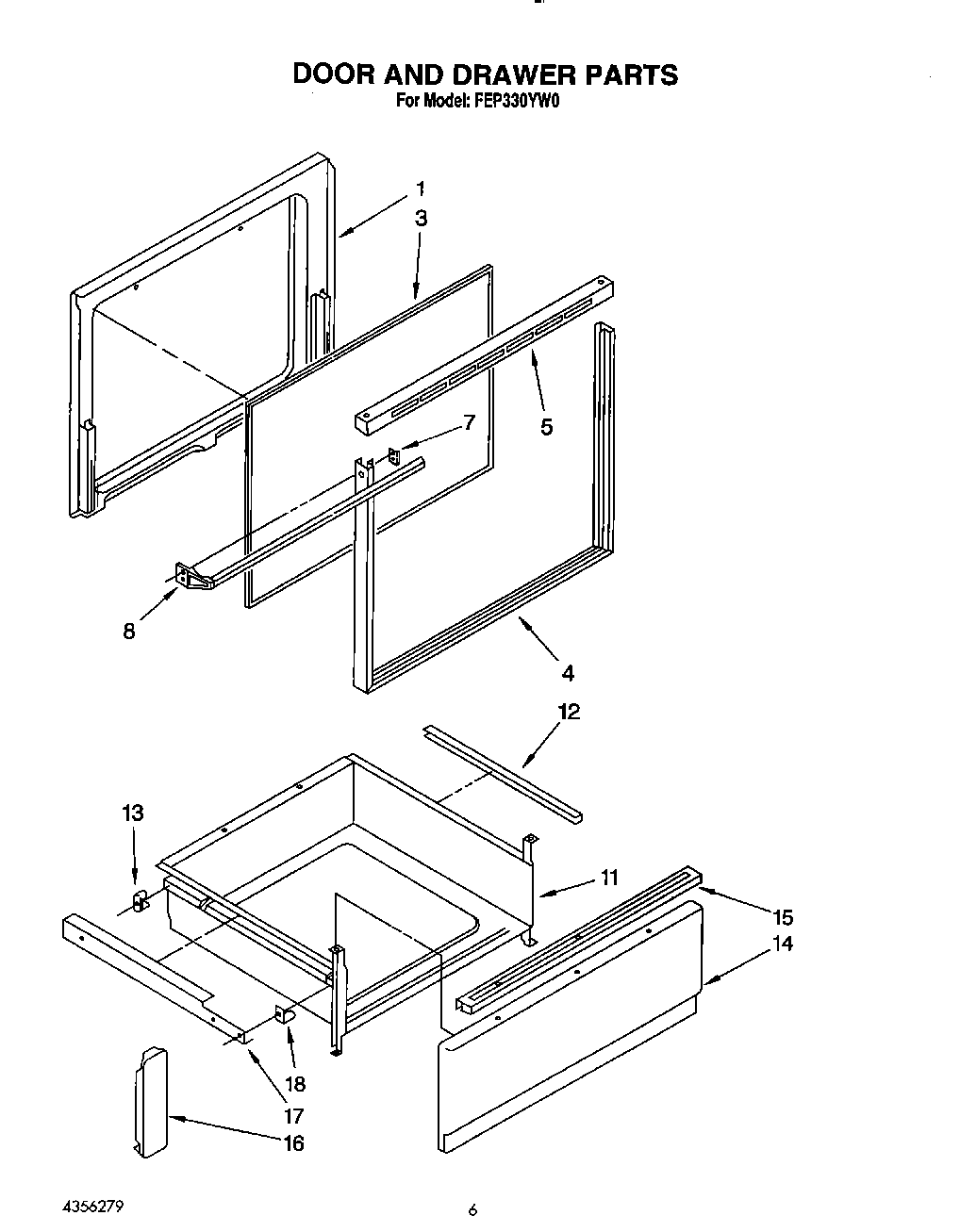

FEP330YW0 05 – DOOR AND DRAWER, LIT/OPTIONAL

Products

PositionProduct
WPL LIT4356279
WPL LIT3184578
WPL LIT3184006
Instructions, Installation
1Back Splash (Screw (4) 10AB x 1/2“)
1Liner, Door
3Panel, Door (Black Glass)
4Frame, Panel (Black Model)
5Top, Door (Black Model)
7Clip, Mtg (2)
8Handle, Door
11Drawer, Utility
12Protector, Drawer (2)
13Glide, Rear (2)
14Panel Drawer (Black)
15Handle, Drawer
15Screw
16Bracket, Mounting (2)
17Rail R.H. (Includes Illus. 3)
17WP488627 Whirlpool Refrigerator Screw
17Rail L.H. (Includes Illus. 3)
18Wire (14 Ga. 150 c Green)
1872113 Whirlpool Touch-Up Paint
18Wire (14 Ga. 150 c Orange)
18Wire (14 Ga. 150 c Yellow)
1818 Ga. 80~c Rating (Red)
18Wire (14 Ga. 200 c Brown)
181
18Screw, 10A x 1/2 (2) (Black)
18Leveler (Thinner) (2oz.)
188212471 Whirlpool Oven Paint
18Grease
18Glide, Front (2)
18Wire (14 Ga. 150 c Brown)
18Wire (14 Ga. 150 c Blue)
18Platinum (Uncut)
18Enamal, Toast (1 Qt. Uncut)
18Paint, Spray (13 Oz.) (Platinum)
18Toast
18Golden Harvest (Uncut)
18Golden Harvest
1872110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
18Almond (Uncut)
18WP72107 Whirlpool Touchup
18799344 Whirlpool Refrigerator Paint
1872017 Whirlpool Appliance Touch-Up Paint White
18350956 Whirlpool Spray Assembly
18WPL 72112
18350942 Whirlpool Spray Paint
18511873 Whirlpool Refrigerator Paint
18285006 Whirlpool Spray
18242831 Whirlpool Oven Wire
18Paint, Spray 13 Oz. (Avocado)
18paint, spray 13 oz. (coffee)
18Paint, Touch-Up 1/2 Oz. (Coffee)
1872109 Whirlpool Dacor Avocado Touch-Up Paint
18Wire, 25“ Roll (White 14 GA.)
18Wire, 25` Roll (Red 14 Ga.)
18Wire, 25` Roll (Black 14 Ga.)
18FOIL, ALUMINUM OVEN (18“ X 25 )
18WPW10208653 Whirlpool Insulation
18WPL 799832
18350930 Whirlpool White Spray Paint
