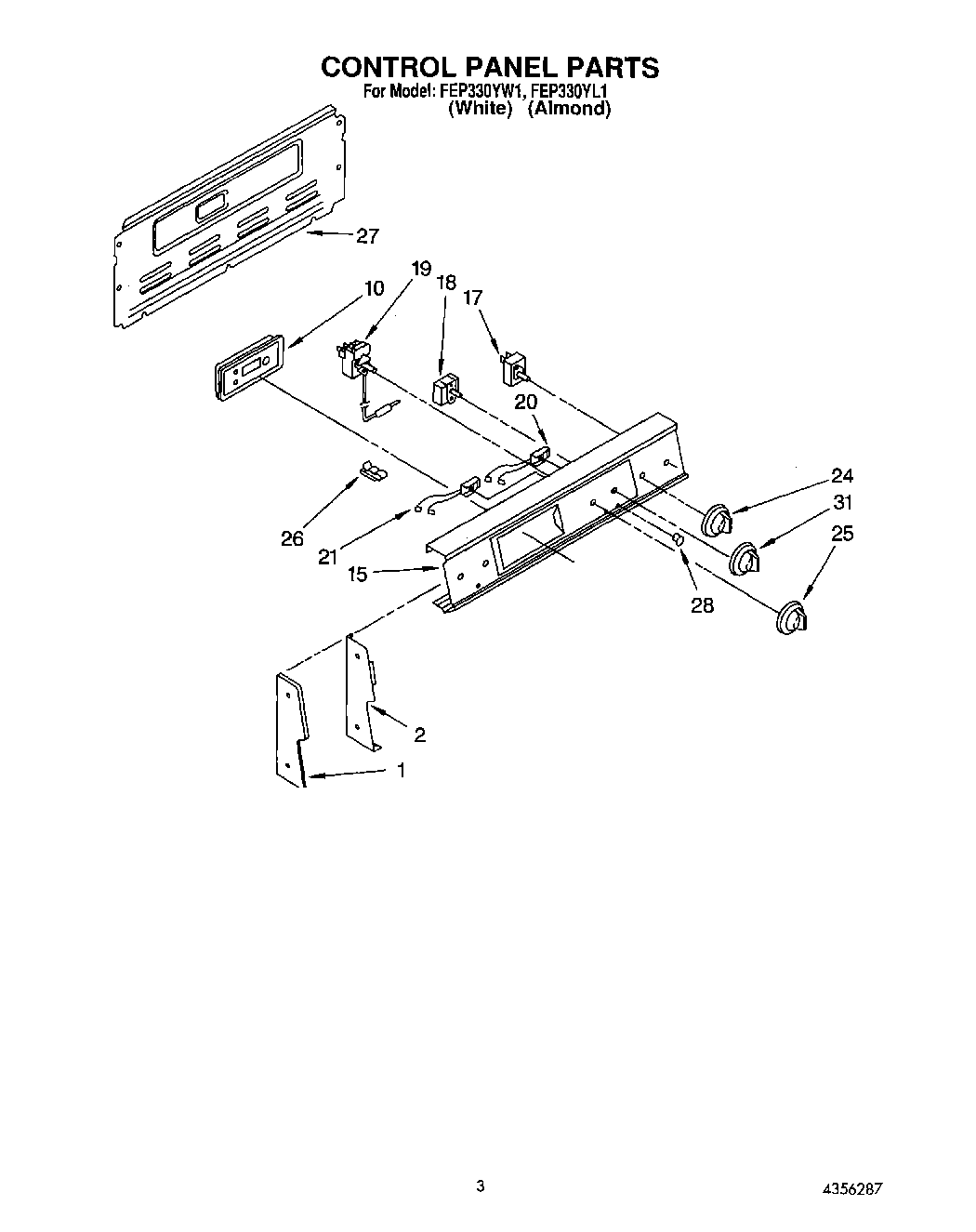

FEP330YW1 02 – CONTROL PANEL

Products

Position	Product
1	End Cap R.H.
1	End Cap L.H.
1	Screw, 8 x 3/8 (4)
2	SHIELD (LH-White/Almond)
2	SHIELD (RH-White/Almond)
10	WP965173 Whirlpool Dishwasher Screw
10	Timer, Clock Knobs Included
15	Panel, Control
17	WP3149404 Whirlpool Oven Surface Element Switch
17	SWITCH-INF
18	WP486579 Whirlpool Air Conditioner Screw
18	Switch, Selector
19	Thermostat, Oven
19	WP313808 Whirlpool Screw
20	Light, Indicator (250V)
21	Light, Indicator (Includes No. 12) (Surface Unit On)
24	WP3149983 Whirlpool Knob
25	Knob, Temperature
26	Clip, Tube
27	SCREW
27	Harness-Conduit Asm.
28	Lens, Amber
31	Knob, Selector
