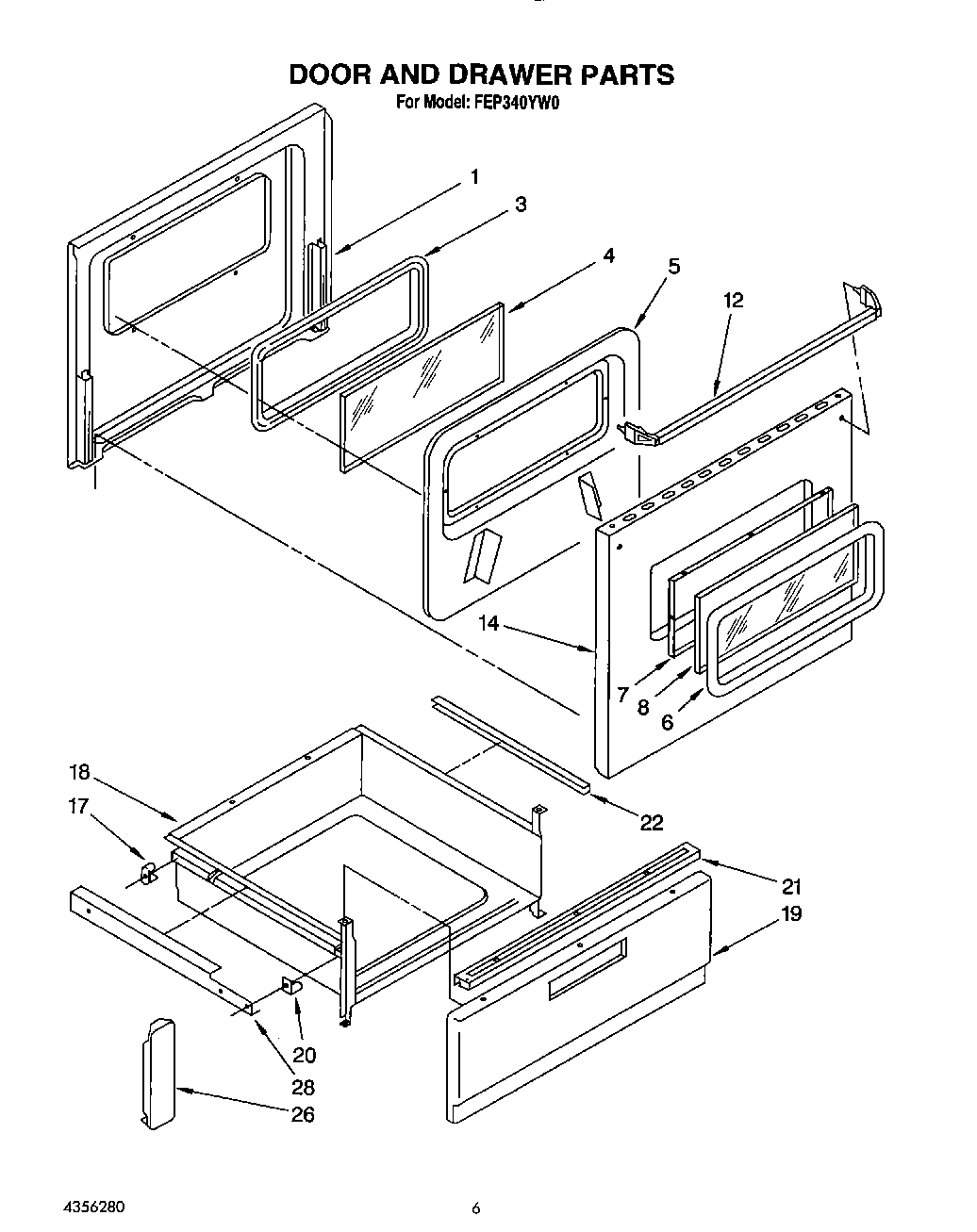

FEP340YL0 05 – DOOR AND DRAWER

Products

PositionProduct
1Liner, Door
3Seal, Door
4Glass, Inner
5Retainer, Insulation
5Screw
6Window, Frame
7Hinge-Lt. or Rt.
7Retainer, Glass
8Glass, Outer
8Clip, Frame
12Handle, Door (White/Almond)
12WP308499 Whirlpool Nut
14Panel, Door (White)
14Panel, Door (Almond)
14Back Splash (Screw (4) 10AB x 1/2“)
17Glide, Rear (2)
17WP488627 Whirlpool Refrigerator Screw
18Drawer, Utility
19Panel, Drawer (Almond)
19Panel Drawer (White)
20Glide, Front (2)
21Handle, Drawer
21Screw
22Protector, Drawer (2)
26Bracket, Mounting (2)
28Screw, 10A x 1/2 (2) (Black)
28Rail L.H. (Includes Illus. 3)
28Rail R.H. (Includes Illus. 3)
