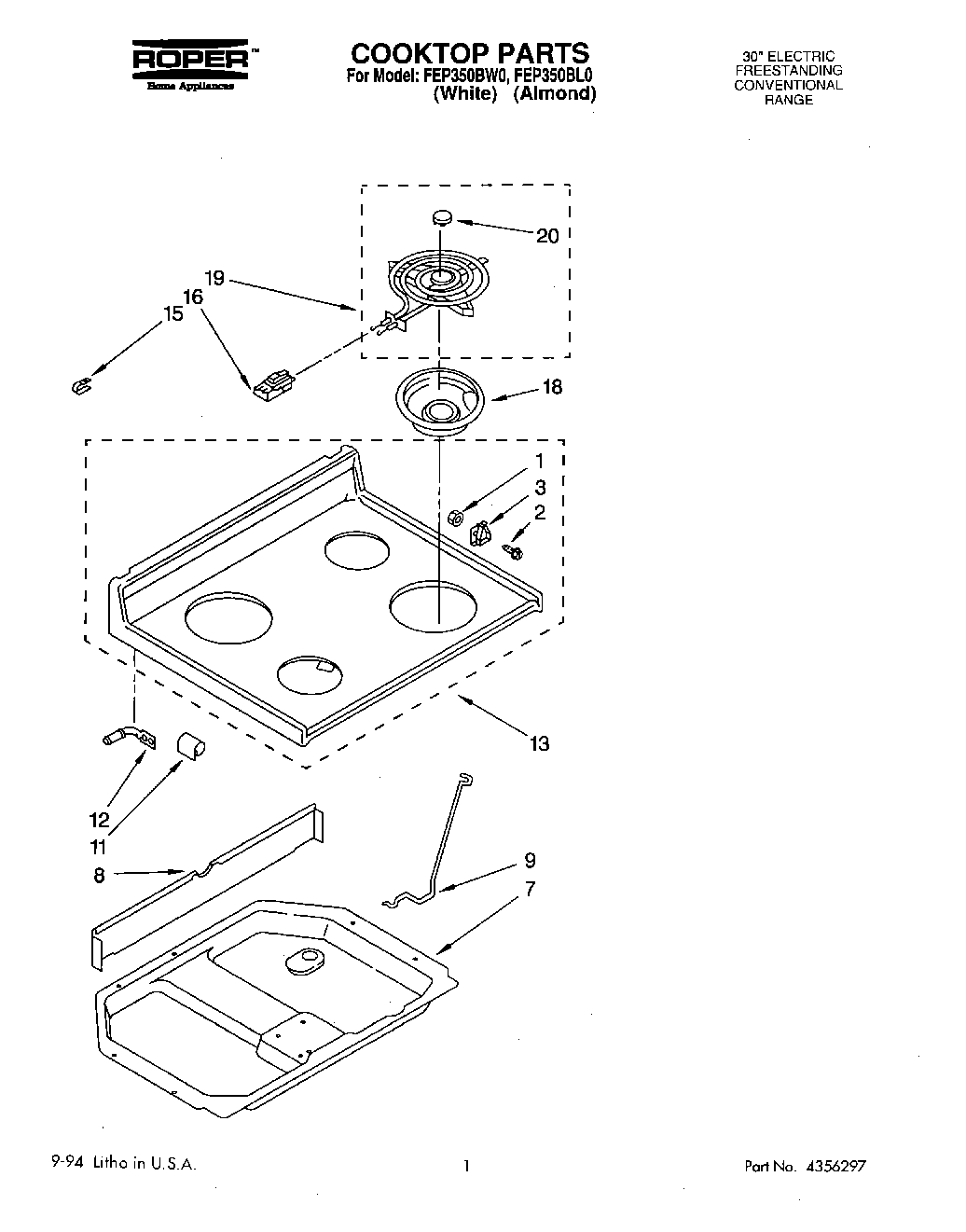

FEP350BW0 01 – COOKTOP

Products

Position	Product
1	Nut (4)
2	WP487887 Whirlpool Refrigerator Screw
3	814103 Whirlpool Clip
7	WP3390631 Whirlpool Screw
7	Box, Burner
8	Shield, Wiring
9	Rod, Cooktop
11	Bracket, Cooktop (2)
12	Pin, Cooktop (2)
13	Cooktop (White)
13	Cooktop (Almond)
15	WP308605 Whirlpool Refrigerator Clamp
15	SCREW
16	Screw, 6-32 x 9/32 (4)
16	WP4332752 Whirlpool Clip
18	WPW10196406 Whirlpool 6" Chrome Drip Bowl
18	DRIP BOWL 8" W/HOLE CHROME
19	WP660532 Whirlpool Oven Surface Element
19	WP660533 Whirlpool Oven 8" Surface Element
20	Medallion (4)
