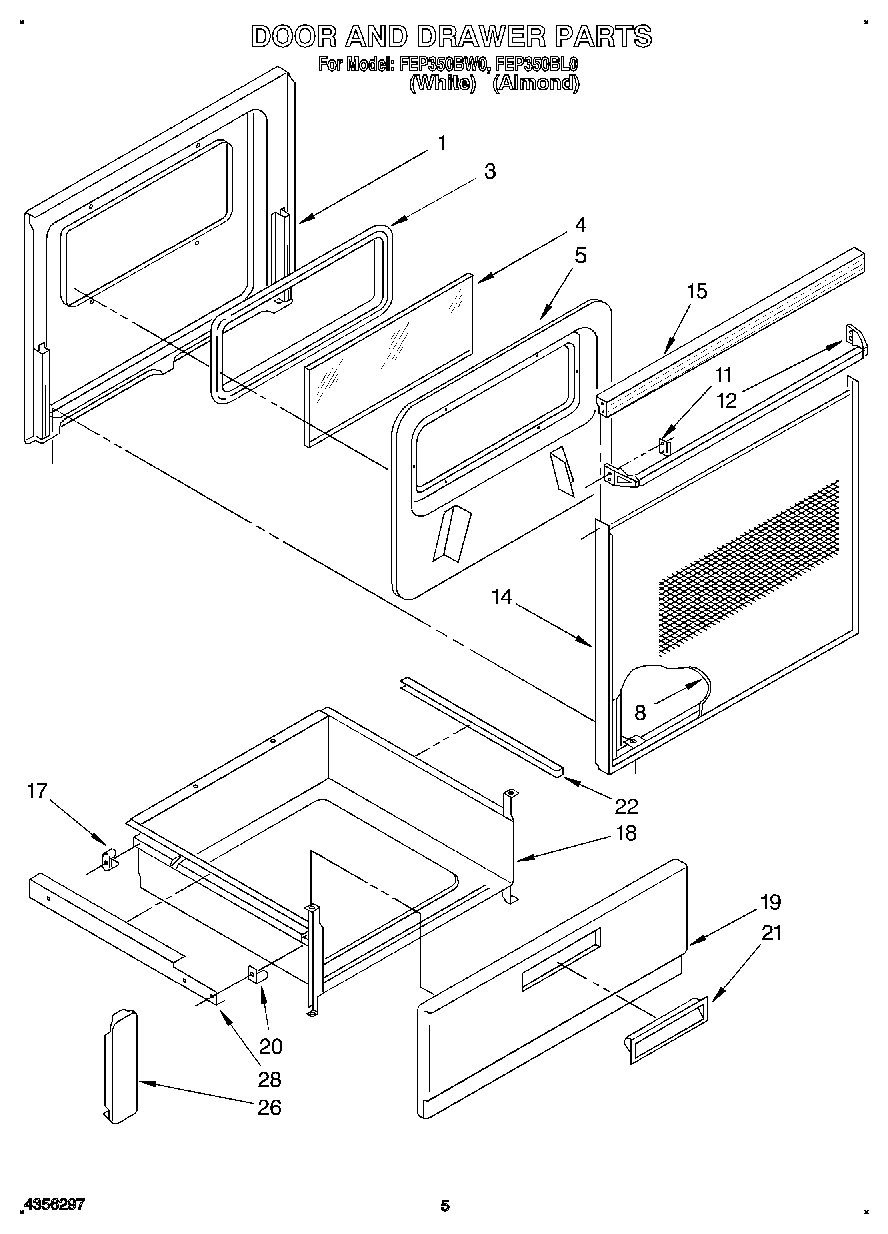

FEP350BW0 04 – DOOR AND DRAWER

Products

PositionProduct
1Liner, Door
3Seal, Door
4Glass, Clear
5Retainer, Insulation
5Screw
8Glass, Panel (Black Model)
11Clip, Mtg (2)
12Handle, Door
14Frame, Panel (Black Model)
15Top, Door (Black Model)
17Glide, Rear (2)
17WP308685 Whirlpool Microwave Screw
18Drawer, Utility
19Panel, Drawer (Black)
19Screw
20Glide, Front (2)
21Grill, Bottom (Screw (3))
21Handle, Drawer
22Protector, Drawer (2)
26Bracket, Mounting (2)
28Rail L.H. (Includes Illus. 3)
28Rail R.H. (Includes Illus. 3)
28Screw, 10A x 1/2 (2) (Black)
