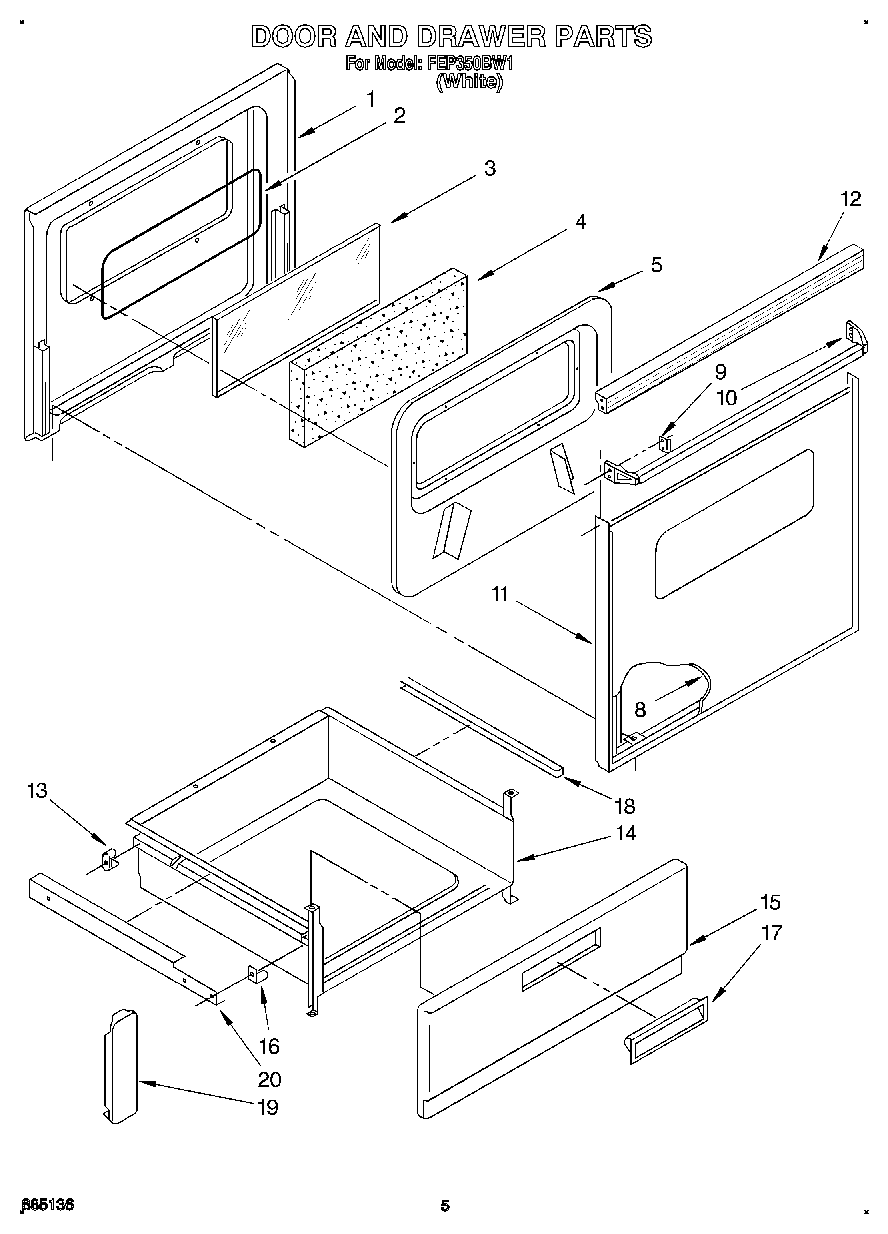

FEP350BW1 04 – DOOR AND DRAWER

Products

Position	Product
1	Liner, Door
2	Seal, Door
3	Glass, Clear
4	Insulation
5	Screw
5	Retainer, Insulation
8	Glass, Panel (Black Model)
9	Clip, Mtg (2)
10	Handle, Door (White/Almond)
10	WP308499 Whirlpool Nut
11	Handle, Door (Screw (4))
11	Frame, Door (Black)
12	Top, Door Vent
13	WP308685 Whirlpool Microwave Screw
13	Glide, Rear (2)
14	Drawer, Utility
15	Panel, Drawer (Black)
15	WP488627 Whirlpool Refrigerator Screw
16	Glide, Front (2)
17	Grill, Bottom (Screw (3))
17	Handle, Drawer
18	Protector, Drawer (2)
19	Bracket, Mounting (2)
20	Rail L.H. (Includes Illus. 3)
20	Rail R.H. (Includes Illus. 3)
20	Screw, 10A x 1/2 (2) (Black)
