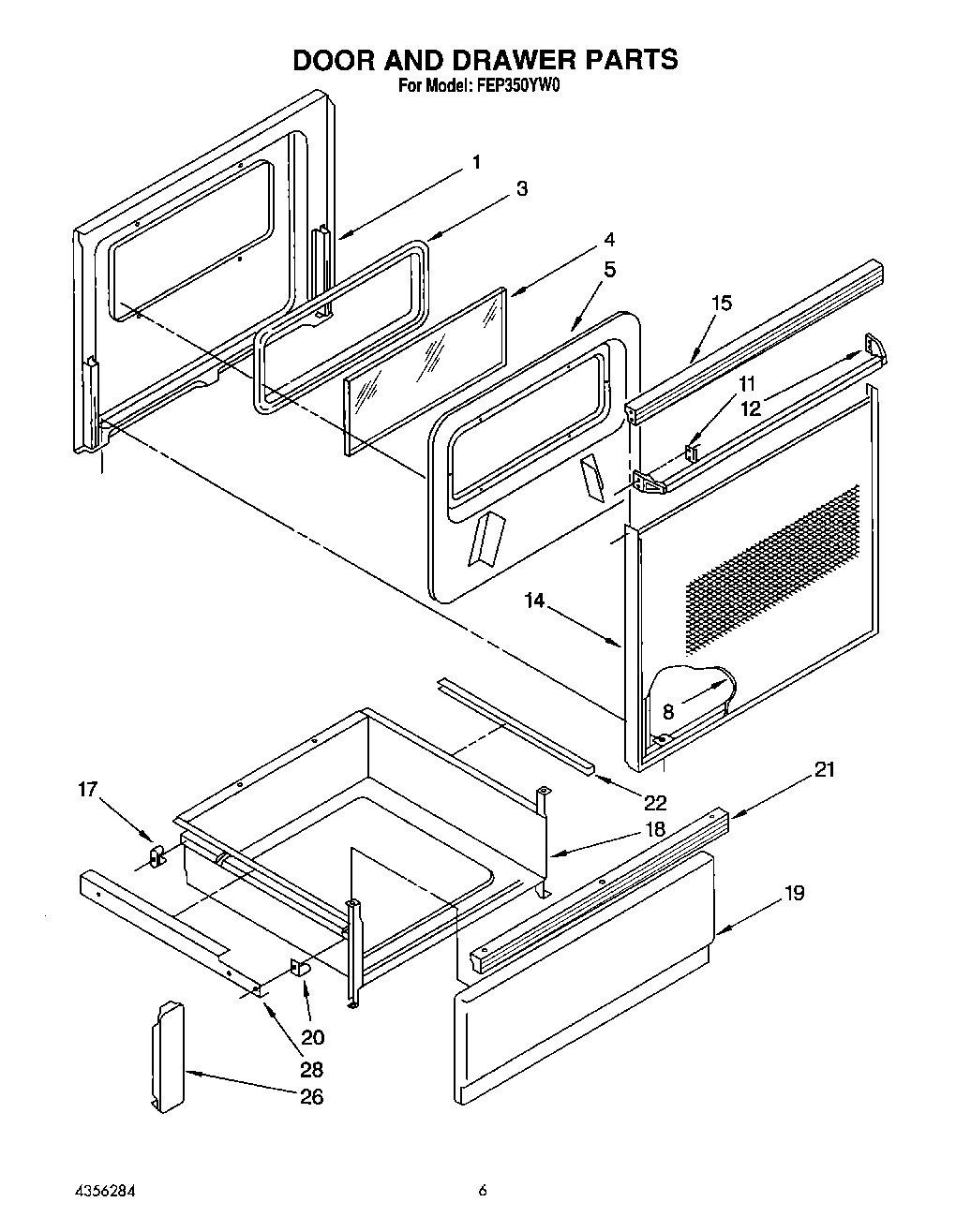

FEP350YL0 05 – DOOR AND DRAWER

Products

PositionProduct
1Liner, Door
3Seal, Door
4Glass, Clear
5Screw
5Retainer, Insulation
8Glass, Panel (Black Model)
11Clip, Mtg (2)
12Handle, Door
14Frame, Panel (Black Model)
15Top, Door (Black Model)
17WP488627 Whirlpool Refrigerator Screw
17Glide, Rear (2)
18Drawer, Utility
19Panel Drawer (Black)
20Glide, Front (2)
21Screw
21Handle, Drawer
22Protector, Drawer (2)
26Bracket, Mounting (2)
28Rail R.H. (Includes Illus. 3)
28Screw, 10A x 1/2 (2) (Black)
28Rail L.H. (Includes Illus. 3)
