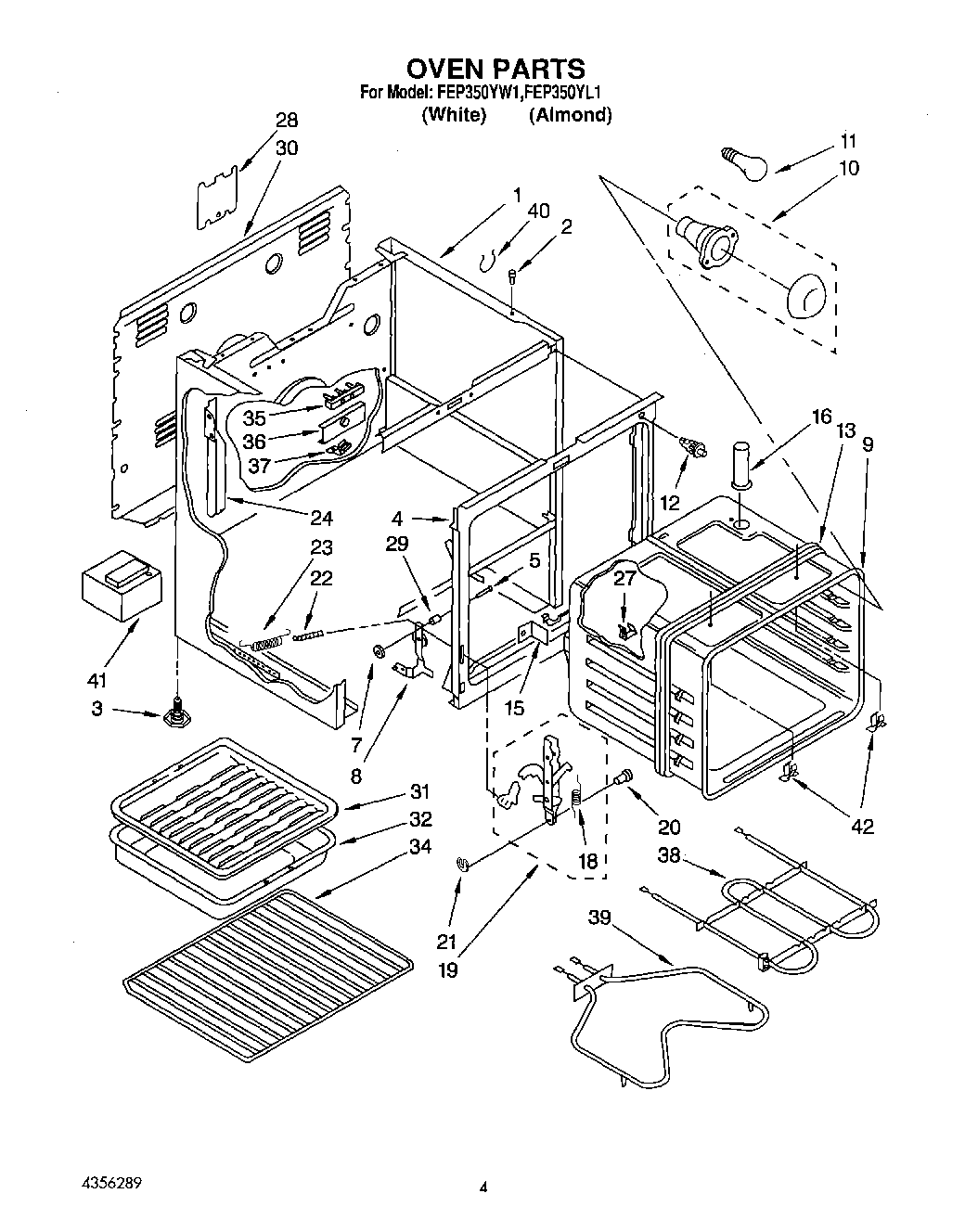

| 1 | Main Chassis (White) |
| 1 | Main Chassis (Almond) |
| 2 | 238614 Whirlpool Bumper Hinge |
| 3 | WPW10058460 Whirlpool Appliance Levelling Leg |
| 4 | Frame, Front |
| 4 | Screw (Top) |
| 5 | Pin, Hinge Ear (2) |
| 7 | Pushnut (2) |
| 8 | Hinge, R.H. |
| 8 | Hinge, L.H. |
| 9 | Screw (3) |
| 9 | Oven (30`` Pyro) |
| 10 | W11594027 Whirlpool Range Oven Light Socket |
| 11 | RANGE ONLY 40W 120V APPL BULB |
| 12 | Switch, Door |
| 13 | Heat Seal |
| 15 | Bracket, Oven (Mounting) |
| 16 | Screw, 10A x 1/2 (2) (Black) |
| 16 | 9755804 Whirlpool Oven Vent Tube |
| 18 | Spring, Door Stop |
| 19 | Channel, Arm (2) |
| 20 | WP307986 Whirlpool Hinge Pin |
| 21 | Retainer Ring (2) |
| 22 | Spring, Oven Door (2) |
| 23 | WP308125 Whirlpool Microwave Range/Cooktop Anchor |
| 24 | Wire Cover |
| 24 | Wire Cover-Controls (Right) |
| 27 | 98005642 Whirlpool Clip |
| 28 | Cover, Service |
| 29 | Snubber, Door (2) |
| 30 | Cover, Rear |
| 31 | 4396923 Whirlpool Broil Pan Set Gray Porcelain |
| 34 | WPL 308173 |
| 35 | Screw, (2) 10-16 x 1 |
| 35 | WP8203546 Whirlpool Terminal Block |
| 35 | WP112432 Whirlpool Nut Assembly |
| 36 | SCREW |
| 36 | Bracket, Service |
| 37 | Clip, Ground Wire |
| 37 | WPL 308498 |
| 38 | WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V |
| 39 | Screw (2) |
| 39 | ELMNT-BAKE |
| 40 | 16515 Whirlpool Clip |
| 41 | 340184 Whirlpool Screw |
| 41 | Block, Balance |
| 42 | 8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit |
| 42 | WPL 3169107 |
| 42 | Insulation, Wrap |
