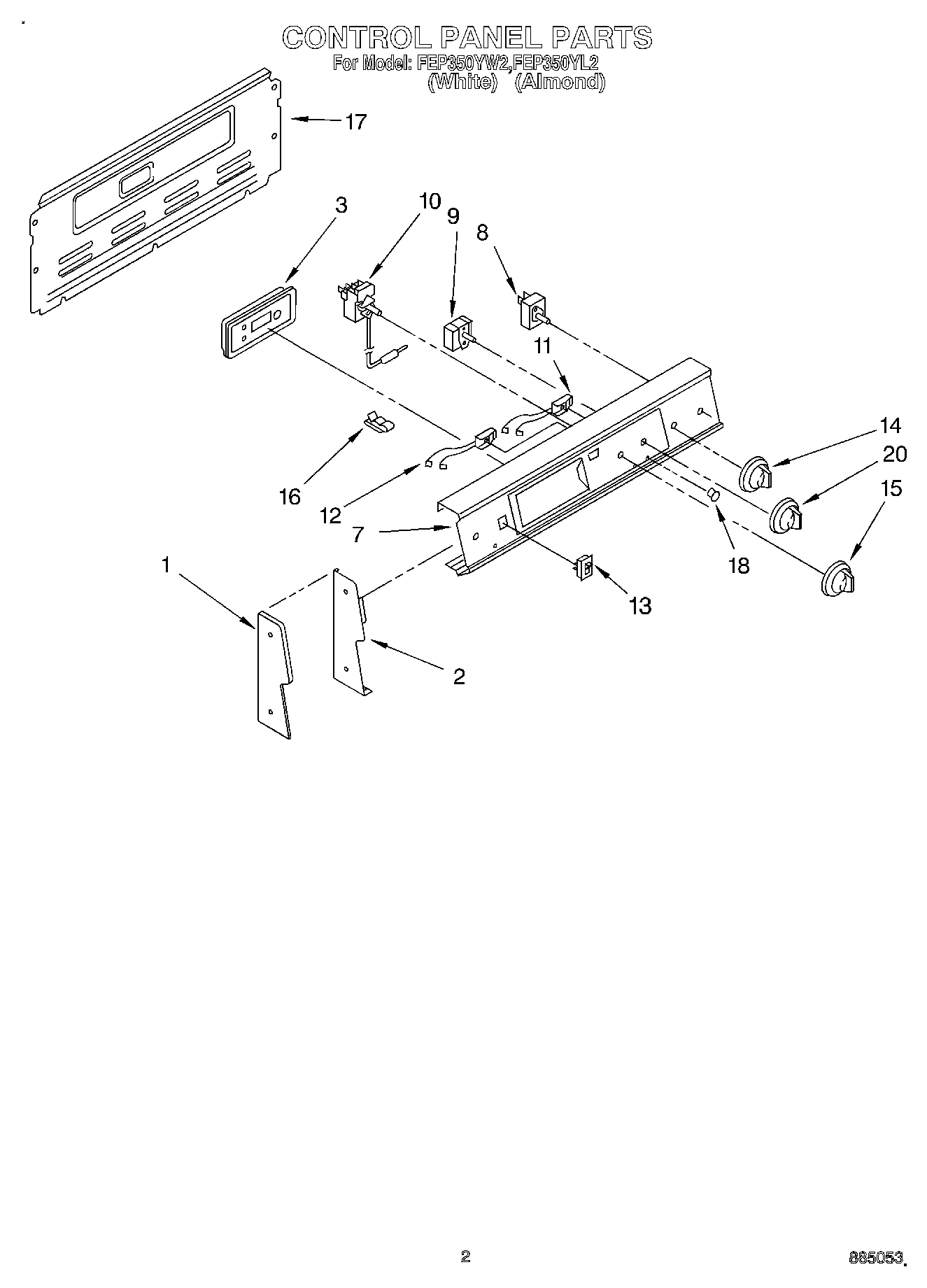

FEP350YL2 02 – CONTROL PANELadmin2025-04-26T11:29:37+00:00FEP350YL2 02 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | Screw, 8 x 3/8 (4) |
| 1 | End Cap L.H. |
| 1 | End Cap R.H. |
| 2 | SHIELD (LH-White/Almond) |
| 2 | SHIELD (RH-White/Almond) |
| 3 | WP965173 Whirlpool Dishwasher Screw |
| 3 | Timer, Clock (Oven Control Assembly) |
| 7 | Panel, Control |
| 8 | SWITCH-INF |
| 8 | WP3149404 Whirlpool Oven Surface Element Switch |
| 8 | Screw, 8-32 x 3/16 (2) |
| 9 | Switch, Selector (4 Position) |
| 10 | WP313808 Whirlpool Screw |
| 10 | Thermostat, Oven |
| 11 | Light, Indicator (250V) |
| 12 | Light, Indicator (Includes No. 12) (Surface Unit On) |
| 13 | WP4314961 Whirlpool Lite Switch |
| 14 | WP3149983 Whirlpool Knob |
| 15 | Knob, Temperature |
| 16 | Clip, Tube |
| 17 | Rear Cover Contr |
| 17 | SCREW |
| 18 | Lens, Amber |
| 20 | Knob, Control (Selector) |
