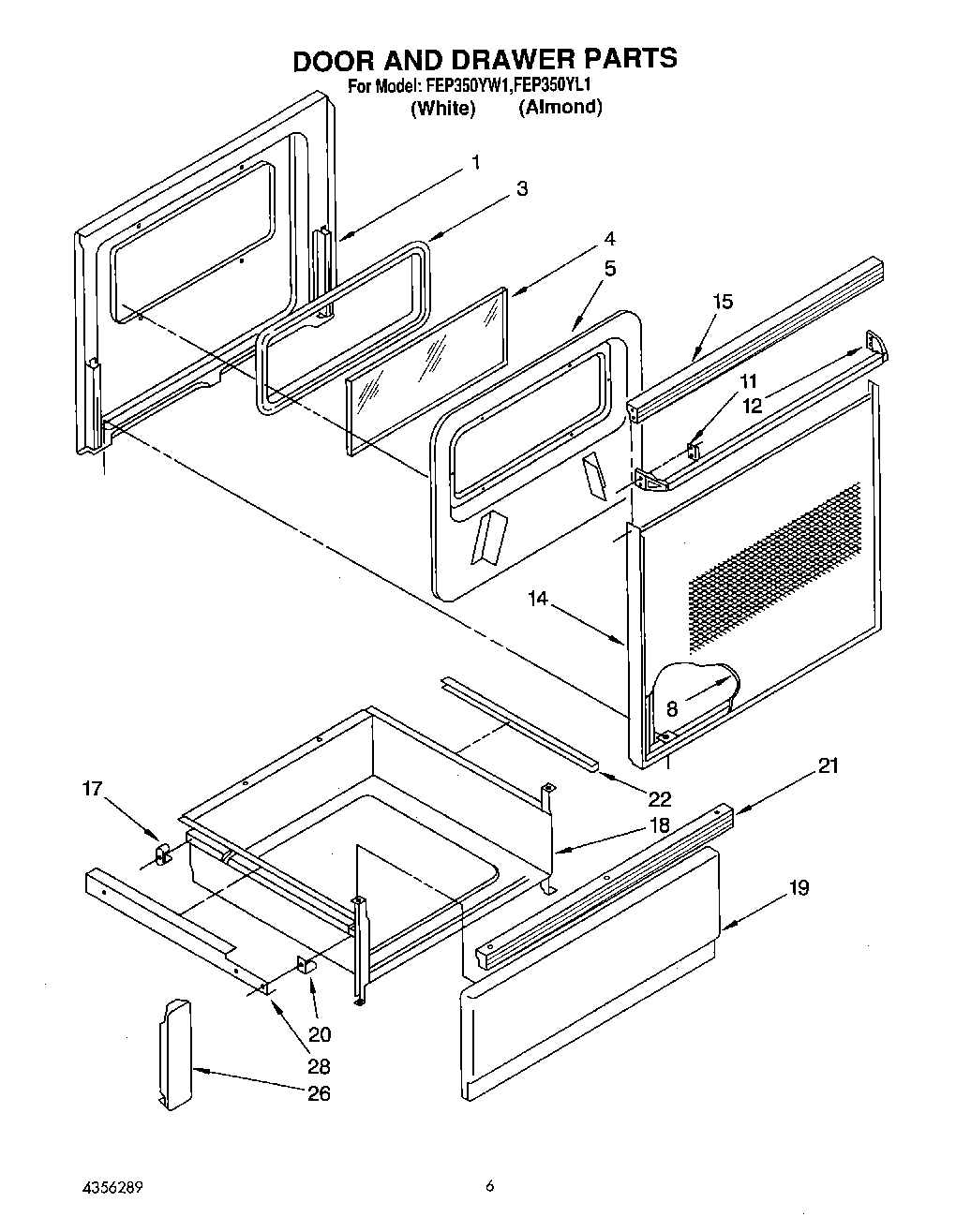

FEP350YW1 04 – DOOR AND DRAWER

Products

PositionProduct
1Liner, Door
3Seal, Door
4Glass, Clear
5Retainer, Insulation
5Screw
8Glass, Panel (Black Model)
11Clip, Mtg (2)
12Handle, Door
14Frame, Panel (Black Model)
15Top, Door (Black Model)
17Glide, Rear (2)
17WP488627 Whirlpool Refrigerator Screw
18Drawer, Utility
19Screw
19Panel Drawer (Black)
20Glide, Front (2)
21Grill, Bottom (Screw (3))
21Handle, Drawer
22Protector, Drawer (2)
26Bracket, Mounting (2)
28Rail L.H. (Includes Illus. 3)
28Rail R.H. (Includes Illus. 3)
28Screw, 10A x 1/2 (2) (Black)
