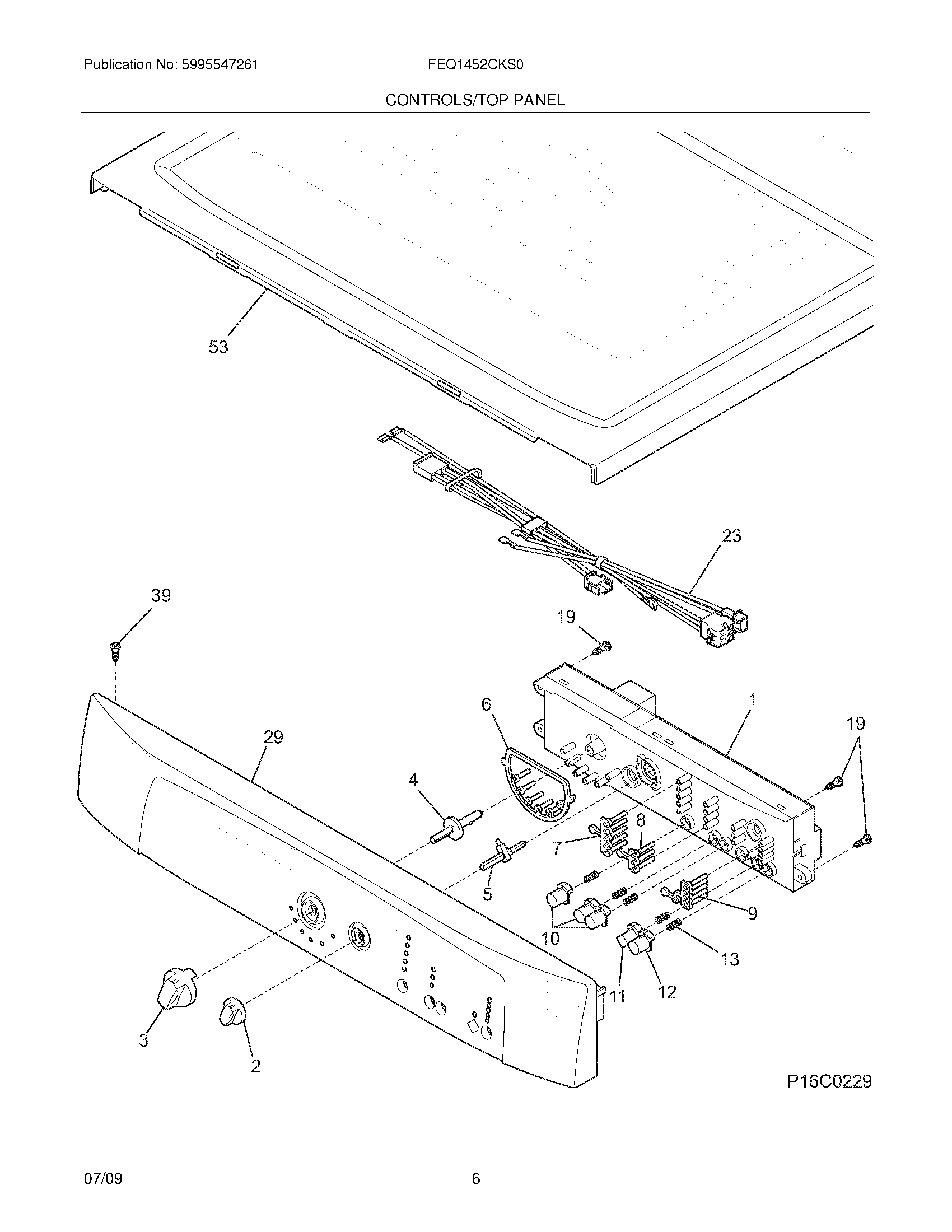

FEQ1452CKS0 07 – CONTROLS/TOP PANEL

Products

Position	Product
NI	WCI 134394200
NI	134101400 Frigidaire Dryer Kit Terminal Block
1	134484212 Frigidaire Printed Circuit Board User Control and Display
2	WCI 134432000
3	WCI 134431800
4	WCI 134347700
5	WCI 134347300
6	WCI 134447600
7	WCI 134429100
8	WCI 134429200
9	WCI 134429400
10	WCI 134385100
11	WCI 134385201
12	WCI 134385301
13	WCI 134349400
19	134402900 Frigidaire Screw
23	WCI 134394400
29	WCI 134442400
39	134178901 Frigidaire Screw
53	137371700 Frigidaire Panel
