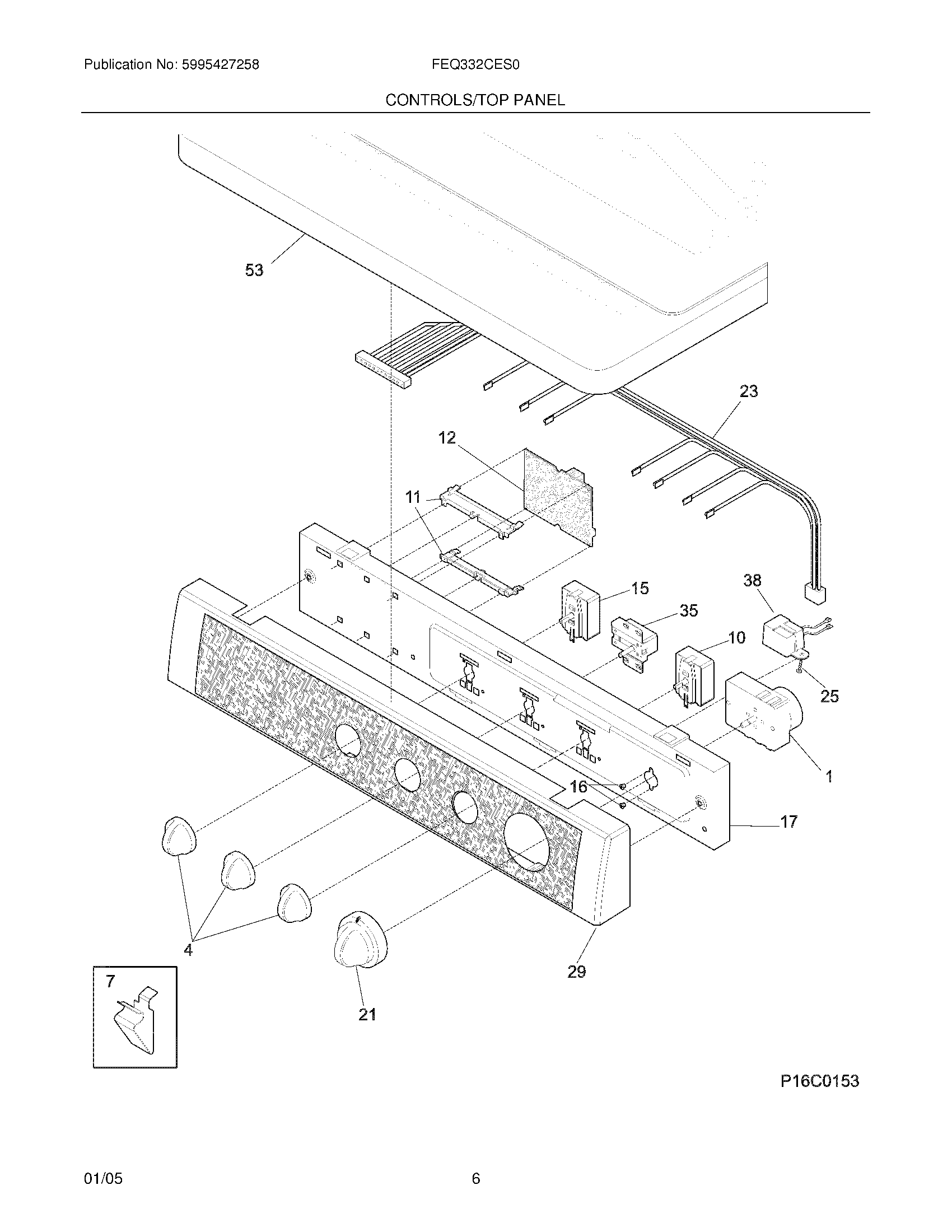

FEQ332CES0 07 – CONTROLS/TOP PANEL

FEQ332CES0 07 – CONTROLS/TOP PANEL

Written by

in

FEQ332CES0 07 – CONTROLS/TOP PANEL

Products

PositionProduct
NIWCI 134487600
NIWIRING HARNESS, MAIN
NI134101400 Frigidaire Dryer Kit Terminal Block
NIINSTRUCTIONS,INSTALLATION
1131789200 Frigidaire L-Dryer P-1 Timer
4134042800 Frigidaire Washer Rotary Knob
73205821 Frigidaire Clip
10134398300 Frigidaire Washer Dryer Turn-to-Start Switch
11BRACKET-CONTROL BOARD
12WCI 134216300
15SWITCH, TEMP CONTROL, 3 POSN ROTARY
16218359202 Frigidaire Refrigerator Screw
17BRKT-CONT MTG-STACK DRYER
21DRYER TIMER KNOB WHITE
23WIRING HARNESS, CONTROL
255303015671 Frigidaire Bracket Termination Screw
29Console,frame ,w/trim
35Switch,2 position
38WCI 5303210285
53PANEL-TOP WHITE
