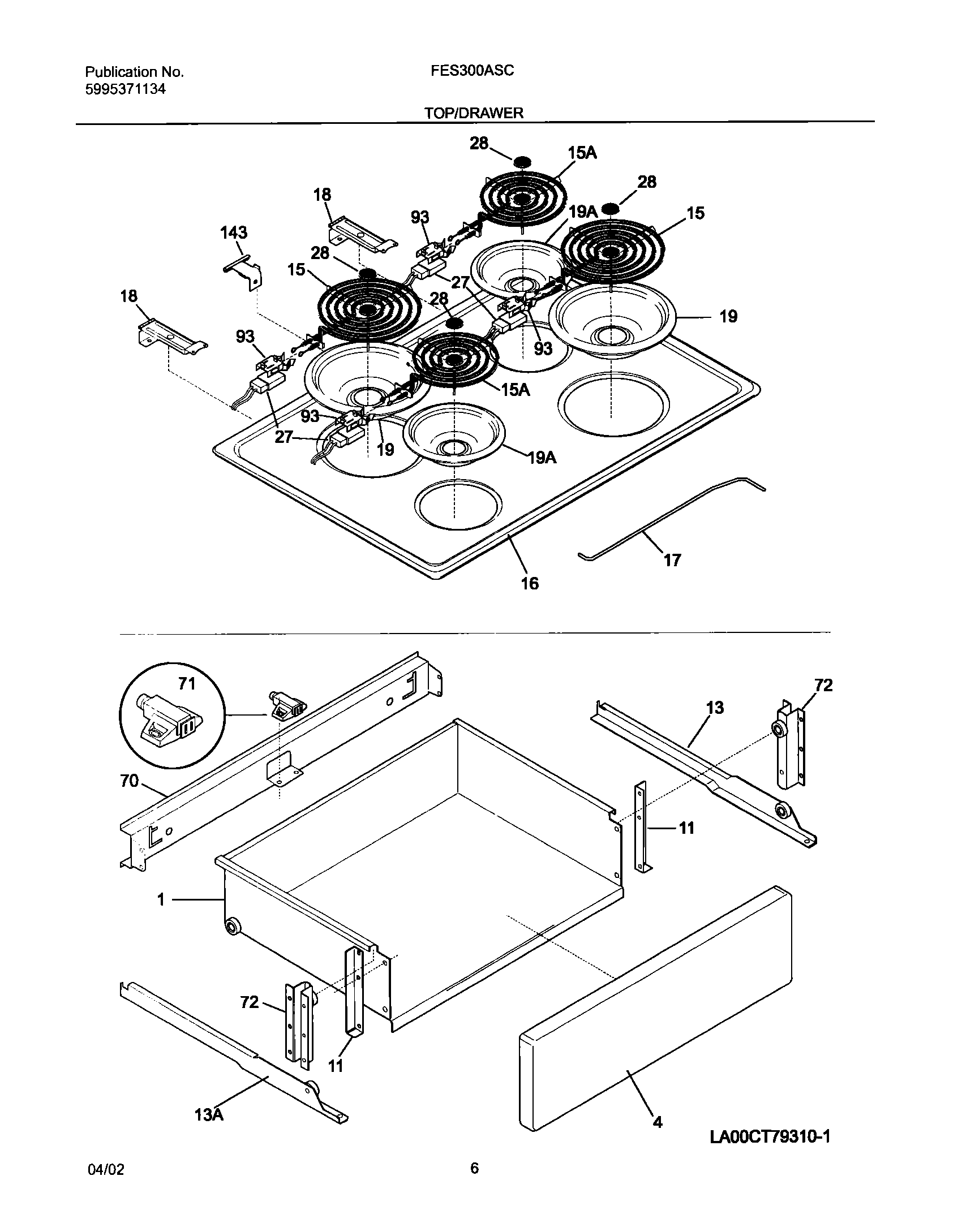

FES300ASC 07 – TOP/DRAWER

FES300ASC 07 – TOP/DRAWER

Written by

in

FES300ASC 07 – TOP/DRAWER

Products

PositionProduct
NISCREW,TRUSS HEAD,8-18 X 0.375
NI08002868 Frigidaire 0 Screw Assembly
NI5303211311 Frigidaire Refrigerator Screw
15304505701 Frigidaire Drawer Body with Roller
4WCI 318134011
11WCI 5303311125
13AWCI 5303311130
13WCI 5303311129
15AELEMENT-SURFACE 1250W
155308011964 Frigidaire Surface Element P1
16WCI 5303300166
17ROD-TOP SUPPORT
18WCI 5303305530
19316048413 Frigidaire Oven Range Chrome 8" Drip Bow
19A316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
27TERMINAL BLOCK, SURFACE ELEMENT
28WCI 5303301461
70WCI 5303311143
71WCI 5303311144
72WCI 5303311145
93WCI 318122500
143WCI 5303300148
