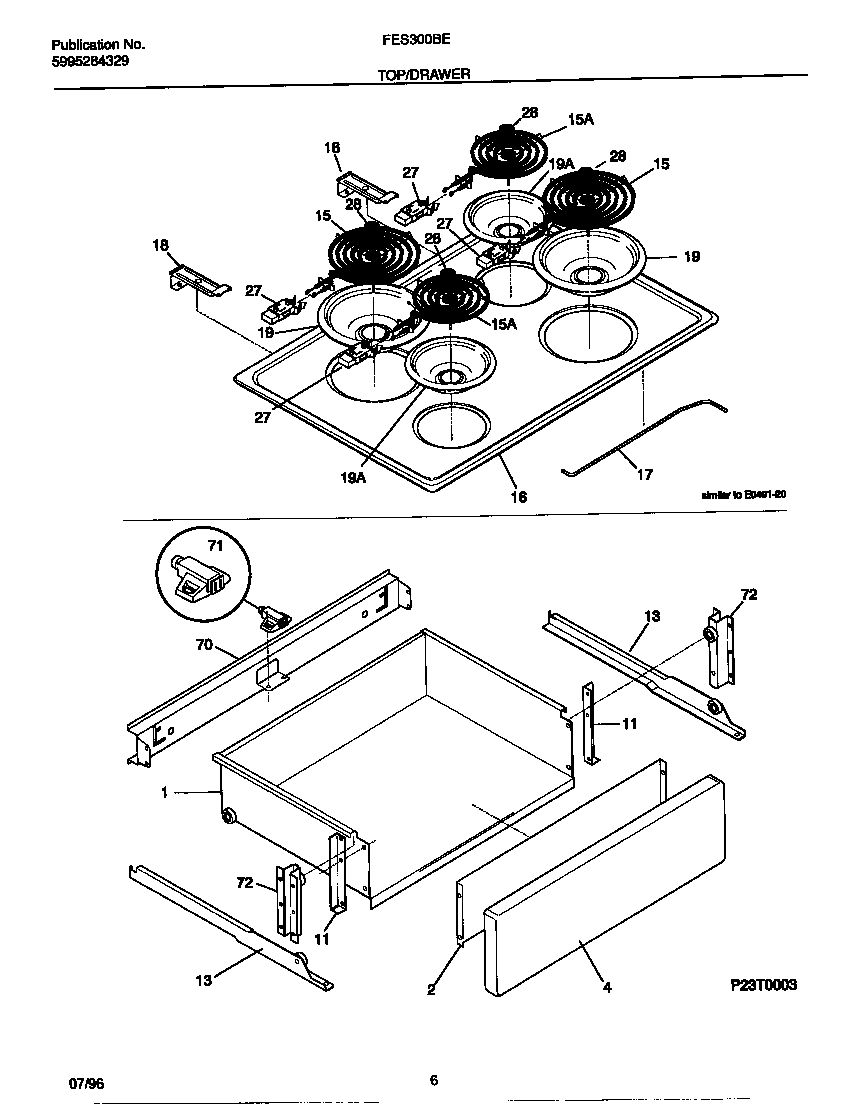

FES300BEBA 04 – TOP/DRAWER

FES300BEBA 04 – TOP/DRAWER

Written by

in

FES300BEBA 04 – TOP/DRAWER

Products

PositionProduct
*18251SCREW, 10-24 X 29/32, TERMINAL BLOCK (NOT ILLUSTRATED)
*18250RIVET-POP, WARING-PLATE
*18253WCI 5303300414
*182525303311174 Frigidaire Oven Screw
15304505701 Frigidaire Drawer Body with Roller
2WCI 318108000
4WCI 5303311178
11WCI 5303311125
13WCI 5303311130
13WCI 5303311129
15WCI 5303301459
155308011964 Frigidaire Surface Element P1
16TOP-CHROME
17ROD-TOP SUPPORT
18WCI 5303305530
19316048413 Frigidaire Oven Range Chrome 8" Drip Bow
19316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
275303935058 Frigidaire Oven Burner Receptacle Kit
28WCI 5303301461
70WCI 5303311143
71WCI 5303311144
72WCI 5303311145
