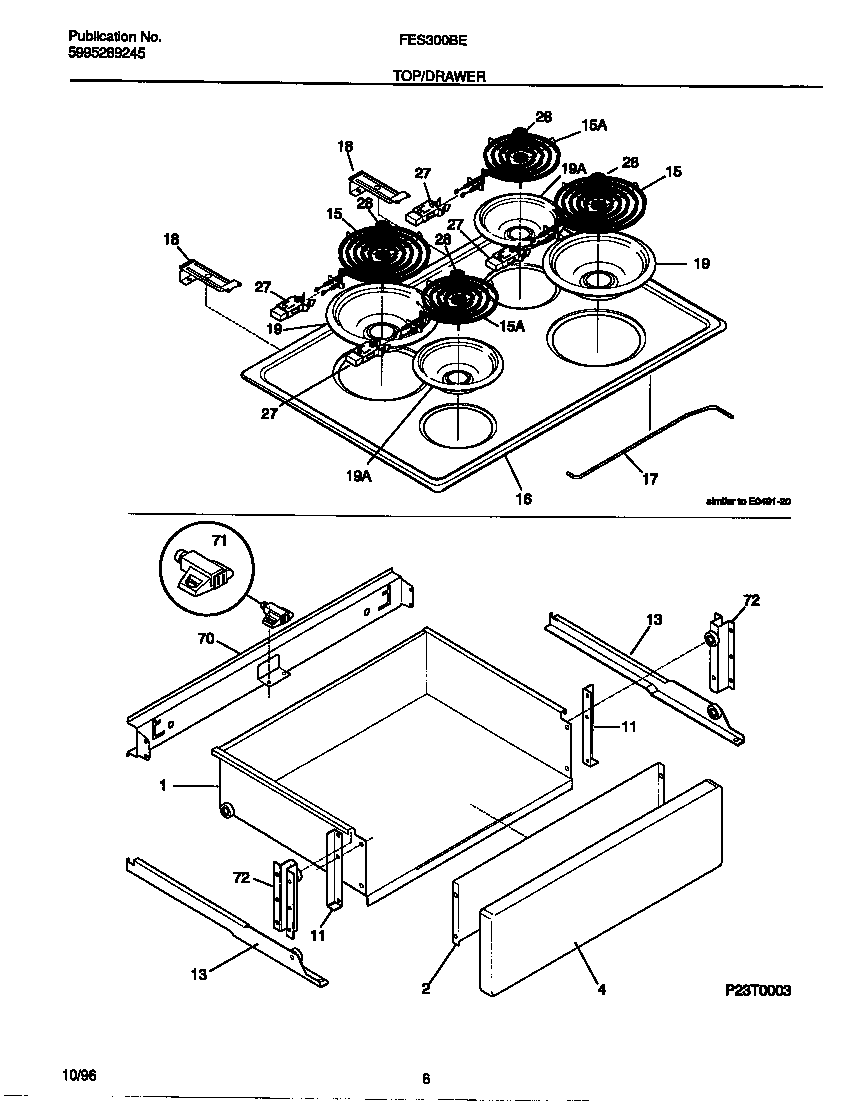

FES300BEBB 04 – TOP/DRAWER

FES300BEBB 04 – TOP/DRAWER

Written by

in

FES300BEBB 04 – TOP/DRAWER

Products

PositionProduct
*65848RIVET-POP, WARING-PLATE
*65850WCI 5303300414
*658495303311174 Frigidaire Oven Screw
15304505701 Frigidaire Drawer Body with Roller
2WCI 318108000
4WCI 5303311178
11WCI 5303311125
13WCI 5303311130
13WCI 5303311129
15WCI 5303301459
155308011964 Frigidaire Surface Element P1
16TOP-CHROME
17ROD-TOP SUPPORT
18WCI 5303305530
19316048413 Frigidaire Oven Range Chrome 8" Drip Bow
19316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
275303935058 Frigidaire Oven Burner Receptacle Kit
27SCREW, 10-24 X 29/32, TERMINAL BLOCK (NOT ILLUSTRATED)
28WCI 5303301461
70WCI 5303311143
71WCI 5303311144
72WCI 5303311145
