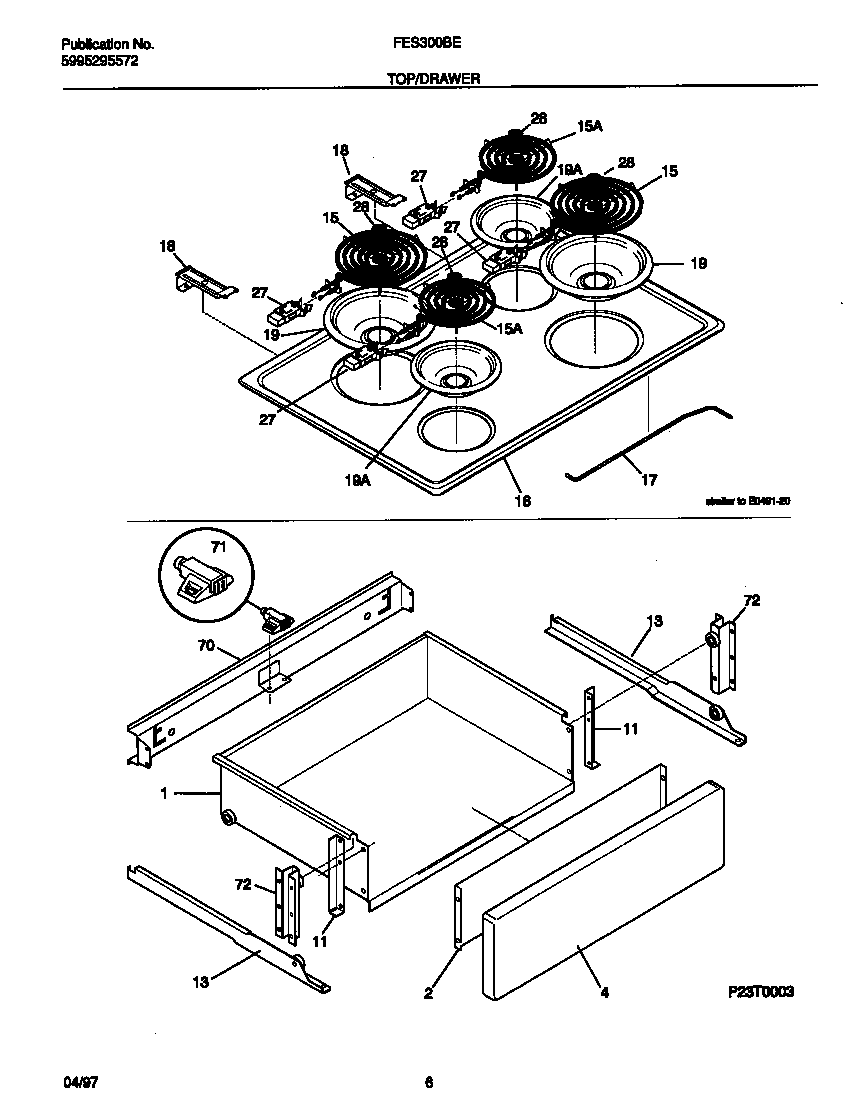

FES300BEBC 04 – TOP/DRAWER

FES300BEBC 04 – TOP/DRAWER

Written by

in

FES300BEBC 04 – TOP/DRAWER

Products

PositionProduct
*16534RIVET-POP, WARING-PLATE
*16536CAP-SCREW
*165355303311174 Frigidaire Oven Screw
15304505701 Frigidaire Drawer Body with Roller
2WCI 318108000
4WCI 5303311178
11WCI 5303311125
13WCI 5303311129
13WCI 5303311130
15ELEMENT-SURFACE 1250W
155308011964 Frigidaire Surface Element P1
16TOP-CHROME
17ROD-TOP SUPPORT
18WCI 5303305530
19316048413 Frigidaire Oven Range Chrome 8" Drip Bow
19316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
235300809968 Frigidaire Dishwasher P-1 Washer
27WCI 318122500
27TERMINAL BLOCK, SURFACE ELEMENT
28WCI 5303301461
70WCI 5303311143
71WCI 5303311144
72WCI 5303311145
