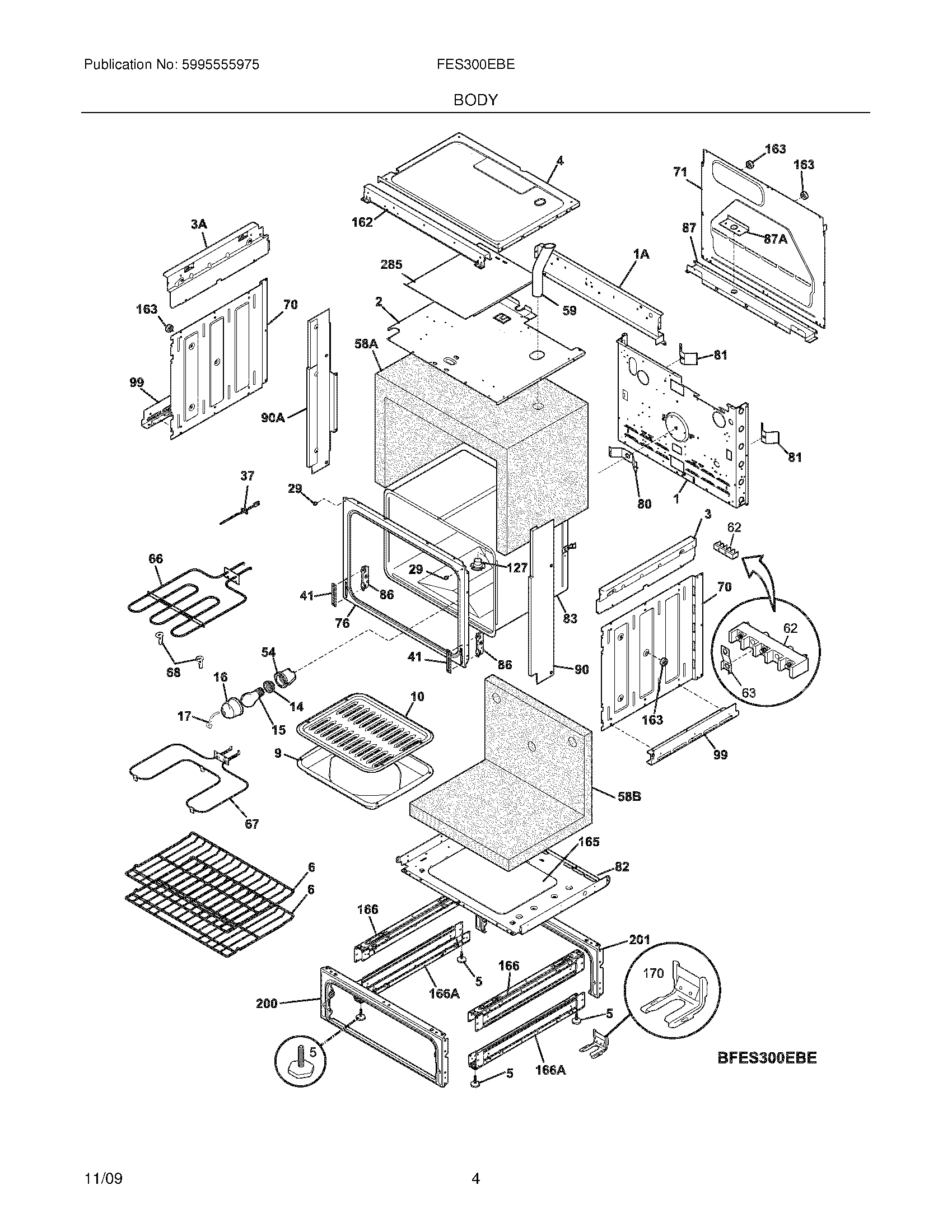

FES300EBE 05 – BODY

FES300EBE 05 – BODY

Written by

in

FES300EBE 05 – BODY

Products

PositionProduct
NI5304436875 Frigidaire Oven Screw
NISCREW-SHOULDER
NI316205500 Frigidaire Oven Nut
NI5304415832 Frigidaire Oven Screw
NI5303323139 Frigidaire Oven Screw
NI5303323129 Frigidaire Oven Screw
NIWCI 318224920
NI318235301 Frigidaire Assembly Connector
NISCREW,TRUSS HEAD,8-18 X 0.375
NI5303211311 Frigidaire Refrigerator Screw
1AWCI 318225110
1WCI 318259220
2WCI 318258902
3WCI 318225210
3AWCI 318225211
4WCI 318073906
5Screw,leveling ,w/tee nut
6WCI 318345207
9WCI 316081900
10Insert,broiler panOPTIONAL ACCESS0RY
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WCI 5304400195
29316517600 Frigidaire Oven Spacer
37316217002 Frigidaire Oven Temperature Probe
41WCI 5303310526
54WCI 318222400
58AWCI 318285074
58BWCI 318285075
59WCI 318549815
625304409888 Frigidaire Oven Terminal Block with Hardware
63318264200 Frigidaire Oven Plate
66318255605 Frigidaire Oven Broil Element Range
67BAKE ELEMENT
685304403015 Frigidaire Oven Support
70WCI 318259105
71WCI 318260007
76WCI 318056216
80WCI 5303320846
81WCI 318192400
82WCI 318258765
83WCI 318261403
86WCI 318342400
87BRACKET, CABLE MTG.
87AWCI 318111806
90A5304511890 Frigidaire Oven Panel
905304511889 Frigidaire Oven Panel
127WCI 318317000
162WCI 318225810
163318531701 Frigidaire Spacer
165WCI 318322600
166318298410 Frigidaire Oven Bracket
166WCI 318298403
170WCI 318335500
200WCI 318335600
201318298233 Frigidaire Oven Frame
285WCI 318236201
