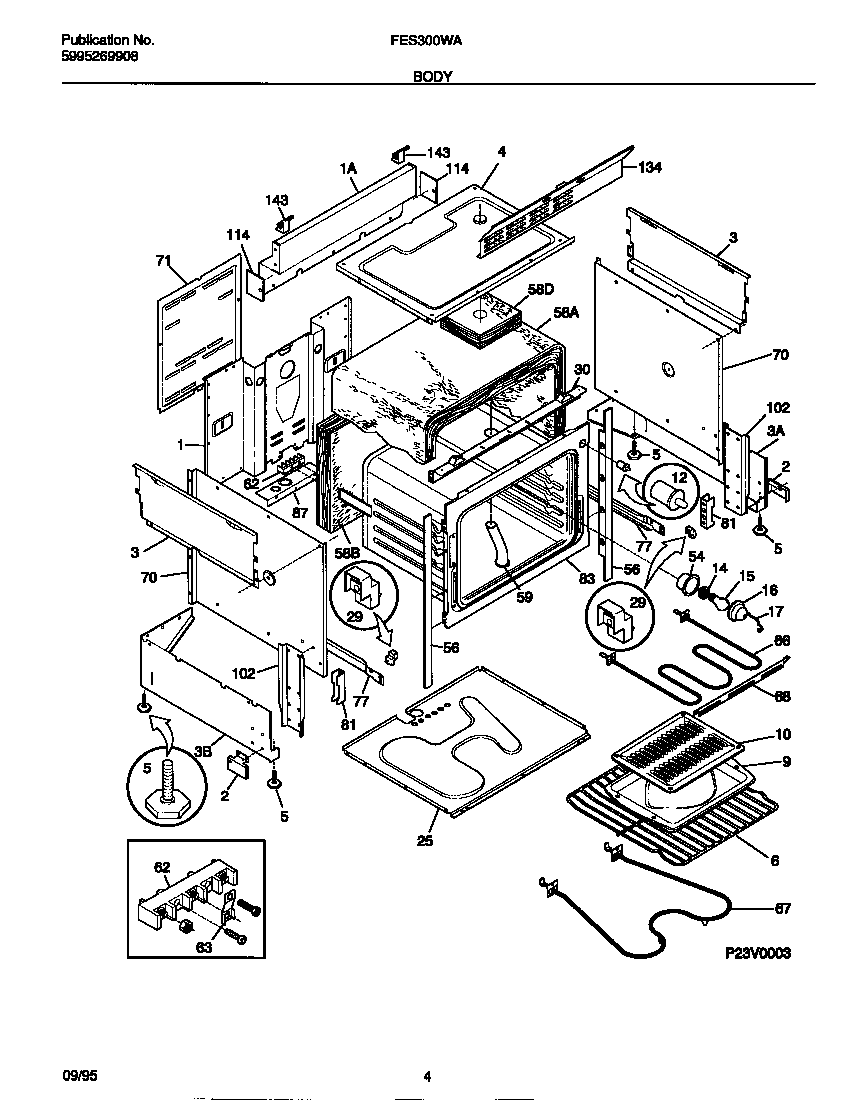

FES300WAD3 03 – BODY

FES300WAD3 03 – BODY

Written by

in

FES300WAD3 03 – BODY

Products

PositionProduct
*80765WCI 5303311108
*80763SCREW, 10-24 X 29/32, TERMINAL BLOCK (NOT ILLUSTRATED)
*80761WCI 3203576
*80760WCI 3203575
*80764WCI 5303280340
*80762316205500 Frigidaire Oven Nut
1PANEL-BACK
1WCI 5303286183
2SHIELD-TOE (2)
3WCI 5303300143
3PANEL-SIDE RH
3PANEL-SIDE LH
4WCI 5303293414
65304531722 Frigidaire Rack
9WCI 5303310521
10WCI 5303310520
12SWITCH-DOOR
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17RETAINER-LENS
25WCI 5303300145
29GUIDE-DRAWER FRNT (2)
30WCI 5303293900
54WCI 3051511
56WCI 5303300146
58WCI 5303300144
58INSULATION – OVEN WRAP
58WCI 3008673
59WCI 08012254
625304409888 Frigidaire Oven Terminal Block with Hardware
63WCI 5303310517
665303051516 Frigidaire Broil Element
675303051519 Frigidaire Oven 2600W Bake Element
68WCI 5303300179
70WCI 5303300142
71WCI 5303311107
77ARAIL-DRAWER RH
77BRAIL-DRAWER LH
81SPACER, DRAWER RAIL (2)
83WCI 5303293899
87WCI 3203574
102SUPPORT-FRONT (2)
114PLATE-FILLER
134WCI 316039801
143WCI 5303300148
