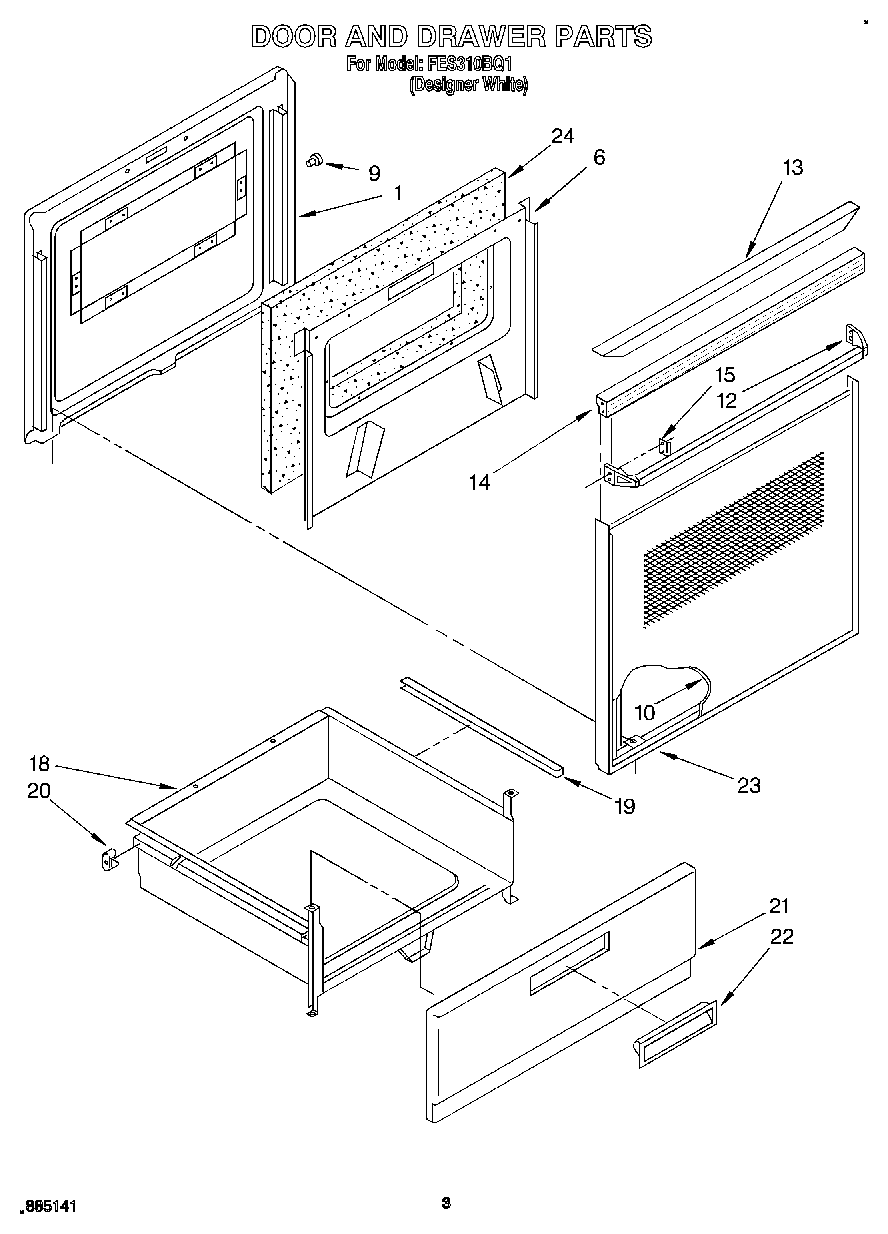

FES310BQ1 03 – DOOR AND DRAWERadmin2025-04-26T11:32:24+00:00FES310BQ1 03 – DOOR AND DRAWER
Products
| Position | Product |
|---|
| 1 | Liner, Oven Door |
| 6 | Screw |
| 6 | Retainer, Insulation |
| 9 | Bumper (4) |
| 10 | Outer Glass Panel (Designer White) |
| 12 | WP308499 Whirlpool Nut |
| 12 | Handle, Door |
| 13 | Top, Door Frame (Screw (2)) |
| 13 | Cap, Top (Designer White) |
| 14 | Top, Door |
| 15 | Clip, Mtg (2) |
| 18 | Drawer, Utility |
| 19 | Protector, Drawer (2) |
| 20 | Glide, Rear (2) |
| 20 | WP308685 Whirlpool Microwave Screw |
| 21 | Panel, Drawer (White) |
| 22 | Handle, Snap-In (White) |
| 22 | WP488627 Whirlpool Refrigerator Screw |
| 23 | Screw, 10A x 1/2 (2) (Black) |
| 23 | Frame, Door (White) |
| 23 | Handle, Door (Screw) |
| 24 | Insulation, Door |
