FES310BQ1 04 – UNIT, LITERATUREadmin2025-04-26T11:30:51+00:00FES310BQ1 04 – UNIT, LITERATURE
Products

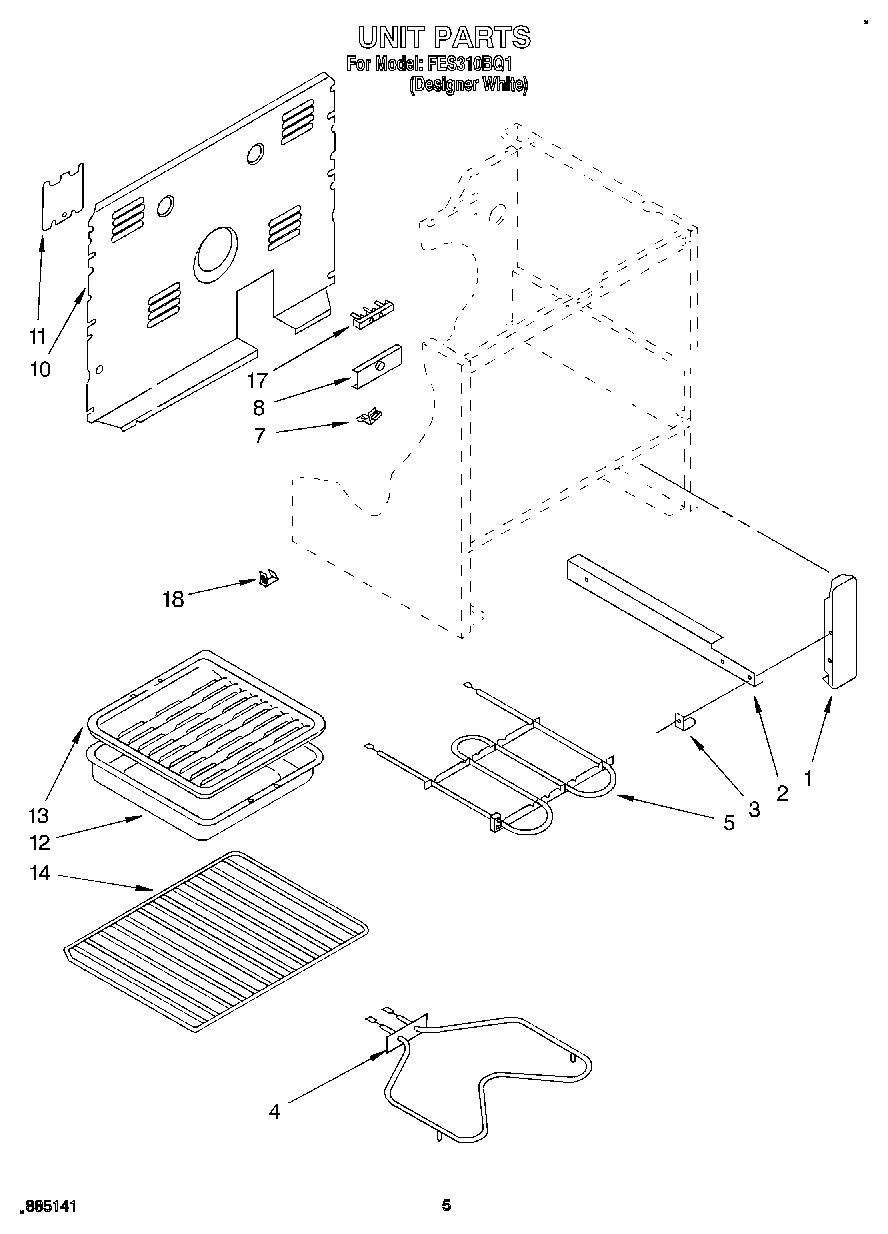

| Position | Product |
|---|
| WPL LIT3187693 |
| Wiring Diagram |
| Instructions, Installation |
| WPL LIT3150400 |
| 1 | Bracket, Mounting (2) |
| 2 | Rail L.H. (Includes Illus. 3) |
| 2 | Rail R.H. (Includes Illus. 3) |
| 3 | Screw, 10A x 1/2 (2) (Black) |
| 3 | Glide, Front (2) |
| 4 | ELMNT-BAKE |
| 5 | Screw (2) |
| 5 | WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V |
| 7 | Clip, Ground Wire |
| 7 | WPL 308498 |
| 8 | Bracket, Service |
| 10 | Cover, Rear |
| 11 | Cover, Service |
| 11 | SCREW |
| 13 | 4396923 Whirlpool Broil Pan Set Gray Porcelain |
| 14 | WPL 308173 |
| 17 | Screw, (2) 10-16 x 1 |
| 17 | WP8203546 Whirlpool Terminal Block |
| 18 | WPL 3169093 |
| 18 | WPL 3169094 |
| 18 | 8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit |
| 18 | 98005642 Whirlpool Clip |
