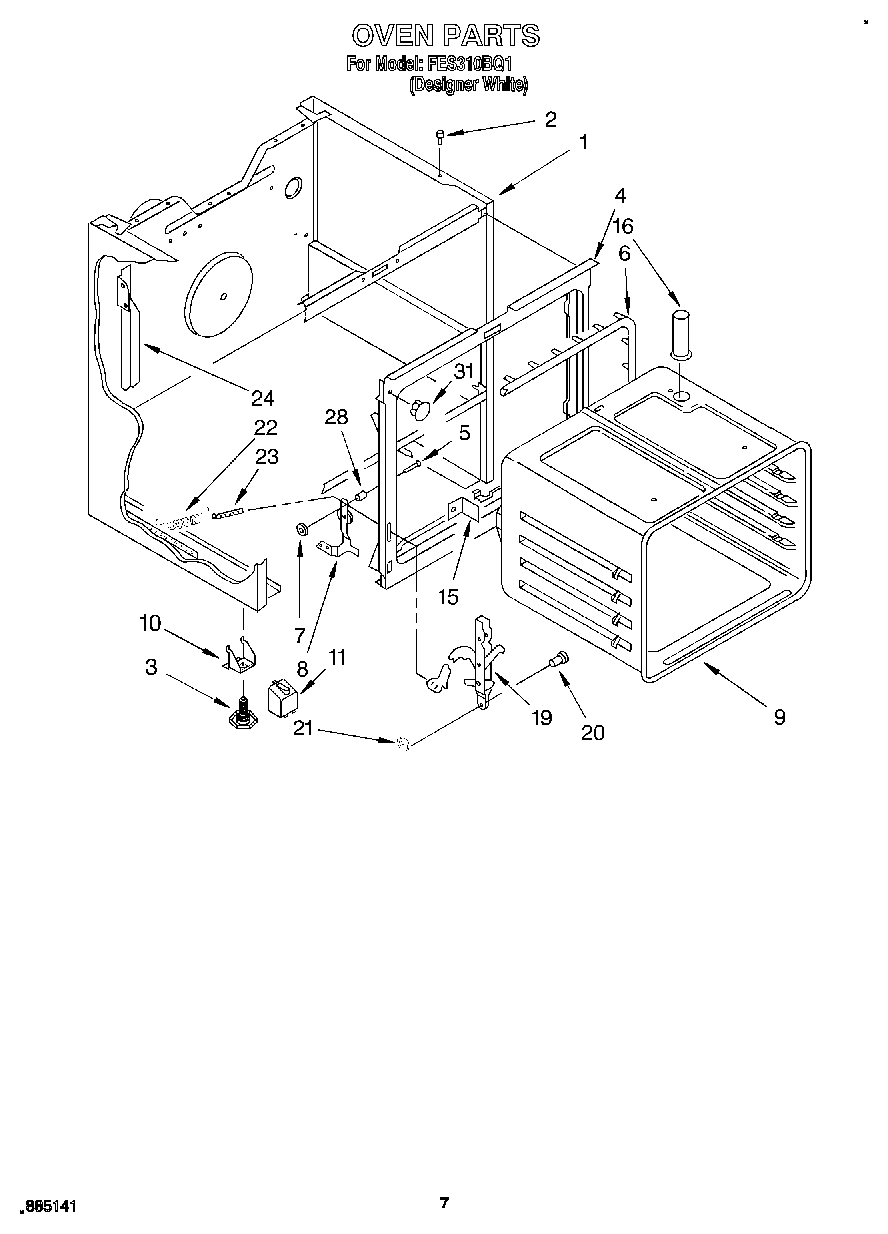

FES310BQ1 05 – OVEN

Products

Position	Product
1	Main Chassis (White)
2	238614 Whirlpool Bumper Hinge
3	Leg Leveling (4)
4	Front Frame
4	Screw (3)
5	Pin, Hinge Ear (2)
6	Seal, Door
7	Pushnut (2)
8	Hinge, R.H.
8	Hinge, L.H.
9	Oven (30“ Conv.)
9	Screw (Top)
10	Support, Foot (2)
11	Cover, Foot (2)
15	Bracket, Oven (Mounting)
16	9755804 Whirlpool Oven Vent Tube
16	Screw, 10A x 1/2 (2) (Black)
19	Channel, Arm (2)
20	WP307986 Whirlpool Hinge Pin
21	Retainer Ring (2)
22	Spring, Oven Door (2)
23	WP308125 Whirlpool Microwave Range/Cooktop Anchor
24	Wire Cover-Controls (Right)
24	Wire Cover
24	SCREW
28	Snubber, Door (2)
28	Anchor, Plastic
31	Plug Button
