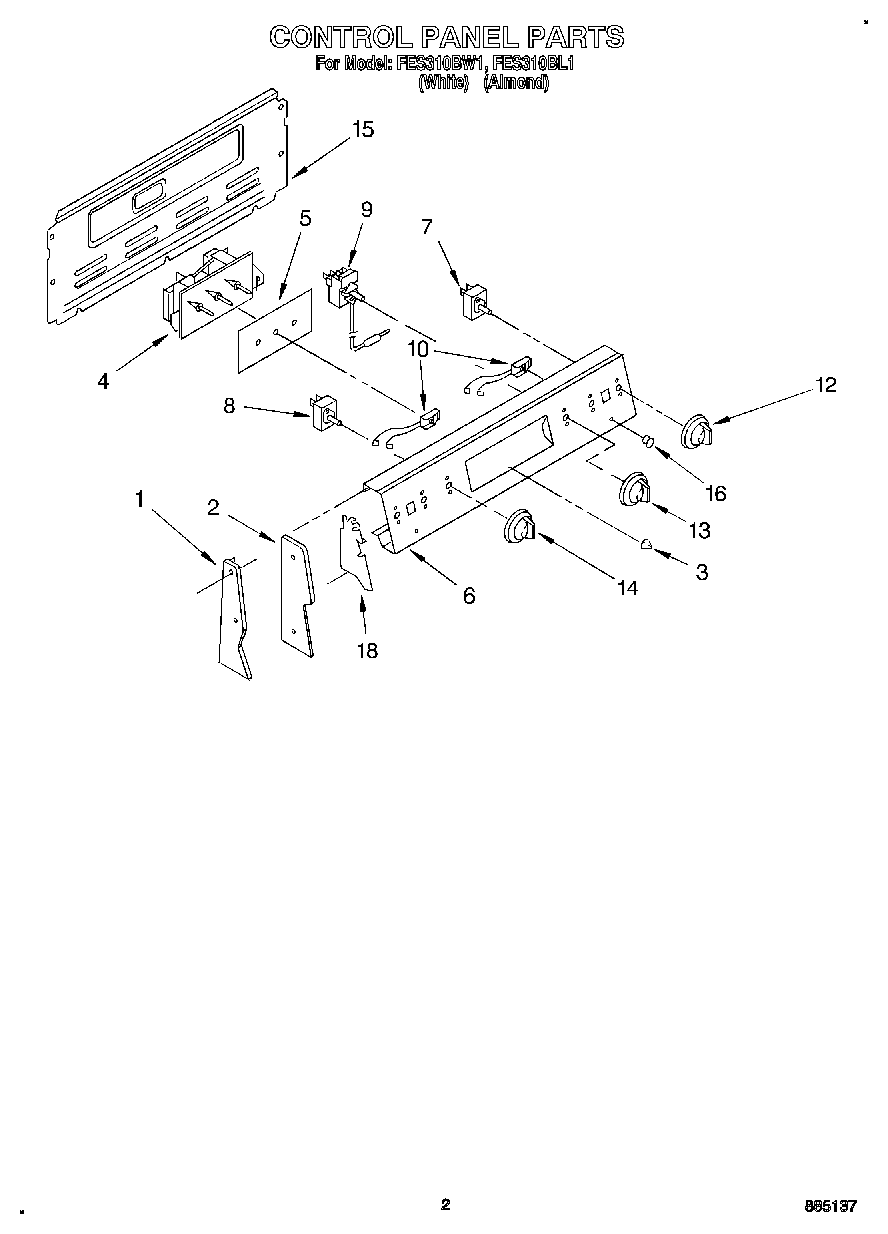

FES310BW1 02 – CONTROL PANEL

Products

Position	Product
1	End Trim R.H. (Black)
1	End Trim (LH, Black)
1	Panel, Control (Screw, 8-18 x 5/8 (4))
2	End Cap, R.H. (White/Almond/Gold)
2	End Cap, R.H. (White/Almond/Gold)
2	Screw,
3	WP3169181 Whirlpool Knob
4	Timer, Control
5	Glass, Timer
6	Panel, Control
7	SWITCH-INF
7	WP3149404 Whirlpool Oven Surface Element Switch
7	Screw, 8-32 x 3/16 (2)
8	Switch, Selector (5 Position)
9	Thermostat, 0ven
9	WP313808 Whirlpool Screw
10	Light, Indicator (Includes No. 12) (Surface Unit On)
10	Light, Indicator (250V)
12	WP3149983 Whirlpool Knob
13	Knob, Oven Temp.
14	Knob, Selector
15	Rear Cover Contr
15	SCREW
16	Lens, Amber
18	WP965173 Whirlpool Dishwasher Screw
18	Shield (2)
