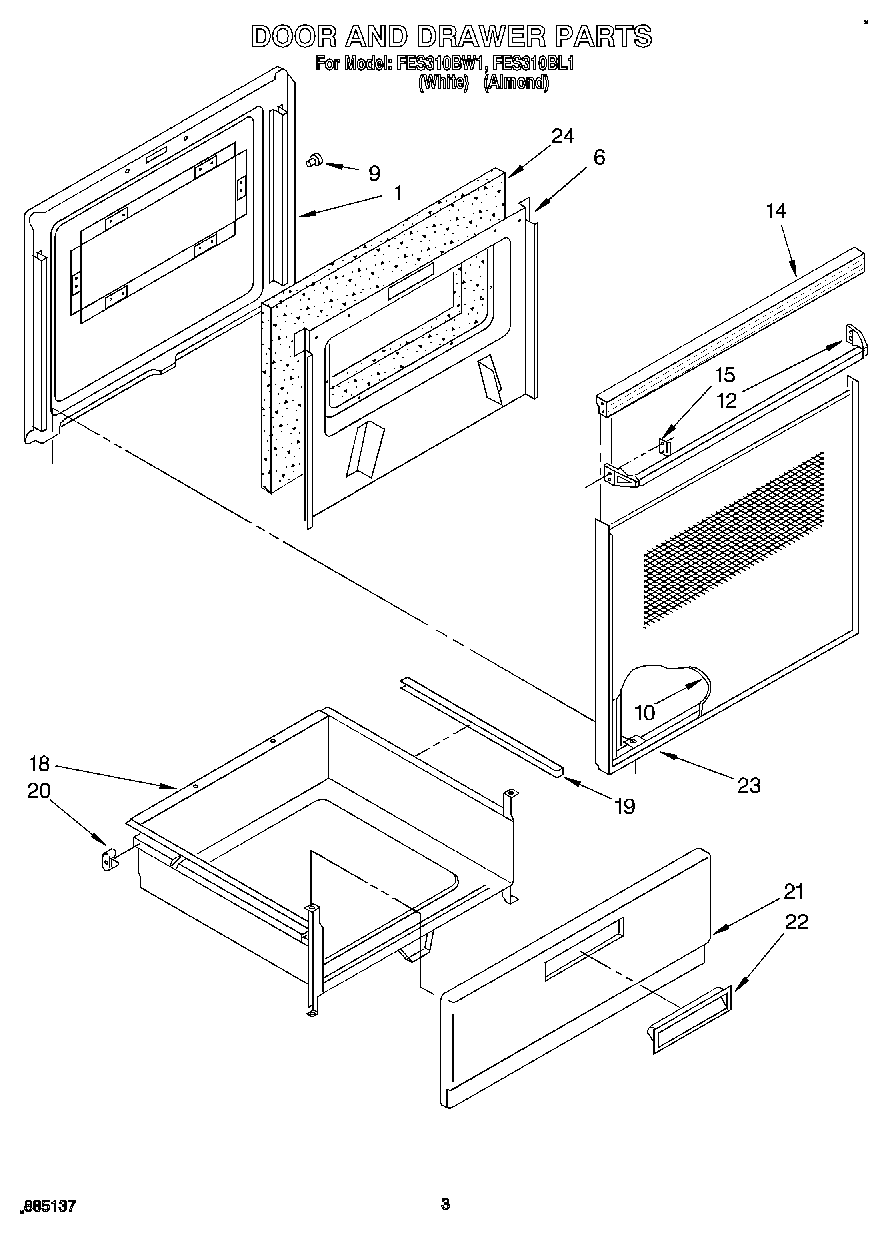

FES310BW1 03 – DOOR AND DRAWER

Products

Position	Product
1	Liner, Oven Door
6	Retainer, Insulation
6	Screw
9	Bumper (4)
10	Panel, Door (Black Glass)
12	Handle, Door (White/Almond)
12	WP308499 Whirlpool Nut
14	Top, Door Vent
15	Clip, Mtg (2)
18	Drawer, Utility
19	Protector, Drawer (2)
20	WP308685 Whirlpool Microwave Screw
20	Glide, Rear (2)
21	Panel, Drawer (Black)
21	WP488627 Whirlpool Refrigerator Screw
22	Grill, Bottom (Screw (3))
22	Handle, Drawer
23	Frame, Door (Black)
23	Screw, 10A x 1/2 (2) (Black)
23	Handle, Door (Screw (4))
24	Insulation, Door
