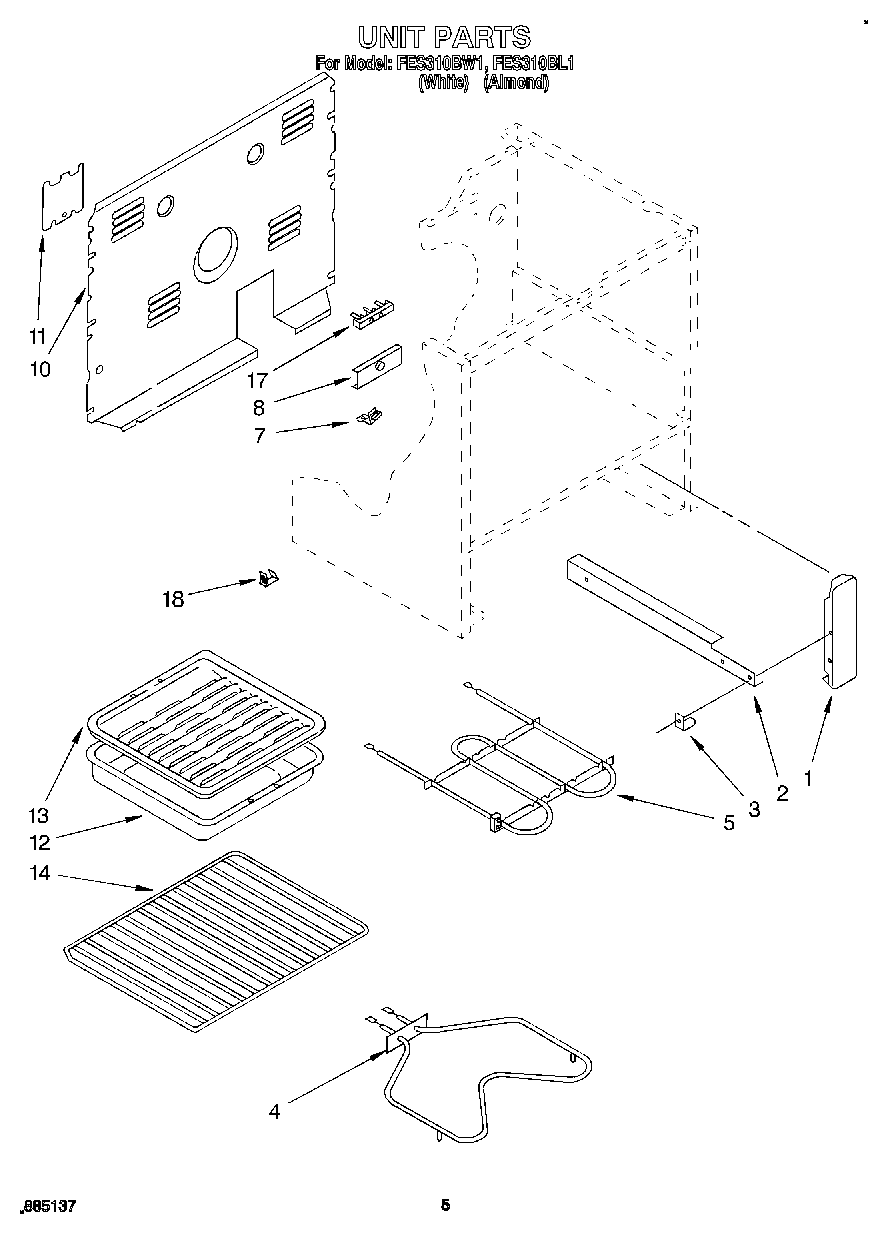

FES310BW1 04 – UNIT

Products

Position	Product
1	Bracket, Mounting (2)
2	Rail L.H. (Includes Illus. 3)
2	Rail R.H. (Includes Illus. 3)
3	Glide, Front (2)
3	Screw, 10A x 1/2 (2) (Black)
4	ELMNT-BAKE
5	Screw (2)
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
7	WPL 308498
7	Clip, Ground Wire
8	Bracket, Service
10	Cover, Rear
11	SCREW
11	Cover, Service
13	4396923 Whirlpool Broil Pan Set Gray Porcelain
14	WPL 308173
17	Screw, (2) 10-16 x 1
17	WP8203546 Whirlpool Terminal Block
18	98005642 Whirlpool Clip
18	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
18	WPL 3169093
18	WPL 3169094
