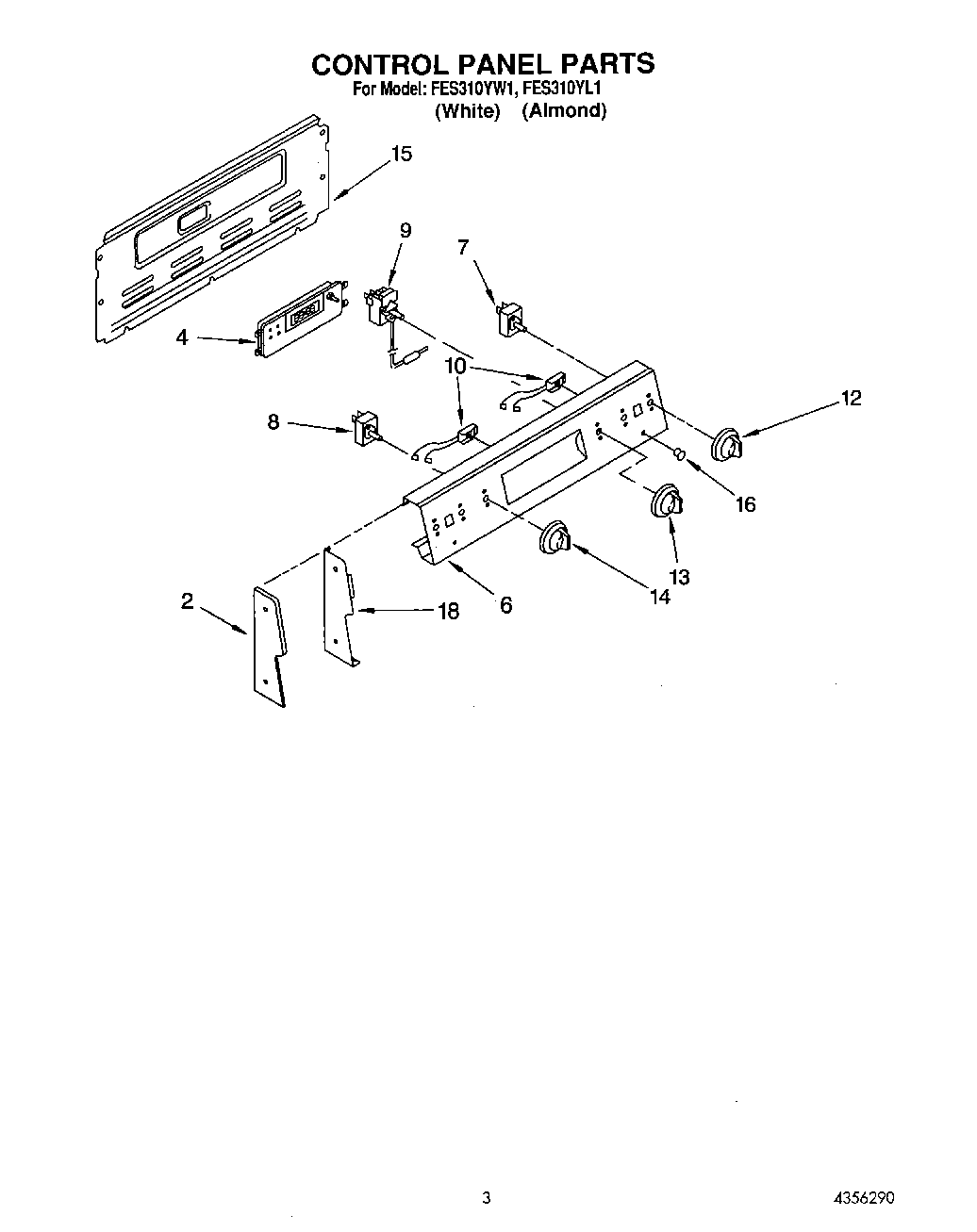

FES310YL1 02 – CONTROL PANEL

Products

Position	Product
2	End Cap R.H.
2	End Cap L.H.
2	Screw, 8 x 3/8 (4)
4	Timer, Clock (Oven Control Assembly)
6	Panel, Control
7	SWITCH-INF
7	WP3149404 Whirlpool Oven Surface Element Switch
8	Switch, Selector
8	WP486579 Whirlpool Air Conditioner Screw
9	Thermostat, Oven
9	WP313808 Whirlpool Screw
10	Light, Indicator (250V)
10	Light, Indicator (Includes No. 12) (Surface Unit On)
12	WP3149983 Whirlpool Knob
13	Knob, Oven Temp.
14	Knob, Selector
15	Harness-Conduit Asm.
15	SCREW
16	Lens, Amber
18	SHIELD (LH-White/Almond)
18	SHIELD (RH-White/Almond)
18	WP965173 Whirlpool Dishwasher Screw
