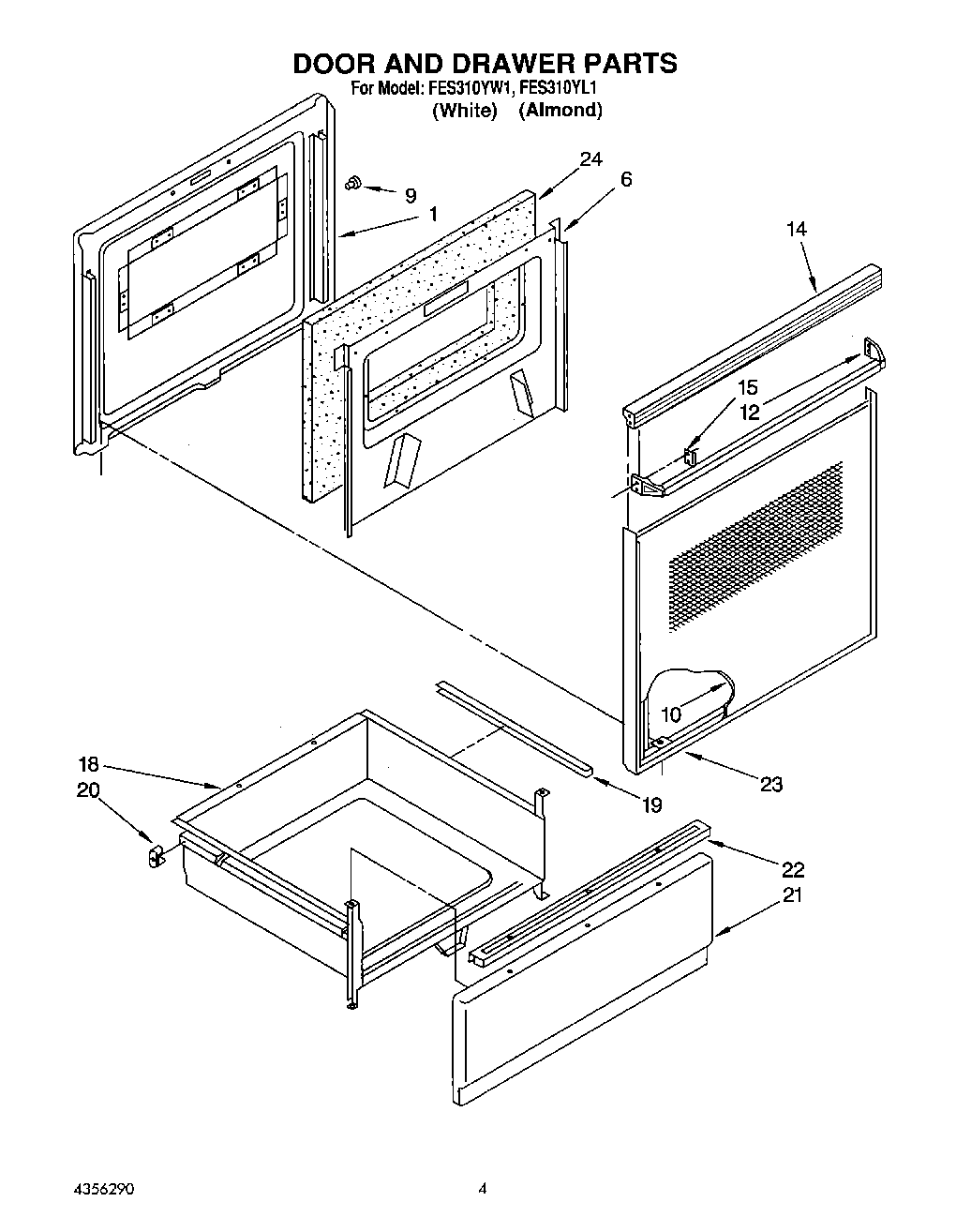

FES310YL1 03 – DOOR AND DRAWER

Products

Position	Product
1	Screw
1	Liner, Oven Door
6	Retainer, Insulation
6	Screw
9	Bumper (4)
10	Panel, Door (Black Glass)
12	Handle, Door
12	Handle, Door (Screw (4))
14	Top, Door (Black Model)
15	Clip, Mtg (2)
18	Drawer, Utility
19	Protector, Drawer (2)
20	Glide, Rear (2)
21	Panel Drawer (Black)
21	WP488627 Whirlpool Refrigerator Screw
22	Grill, Bottom (Screw (3))
22	Handle, Drawer
23	Screw, 10A x 1/2 (2) (Black)
23	Frame, Panel (Black Model)
24	Insulation, Door
