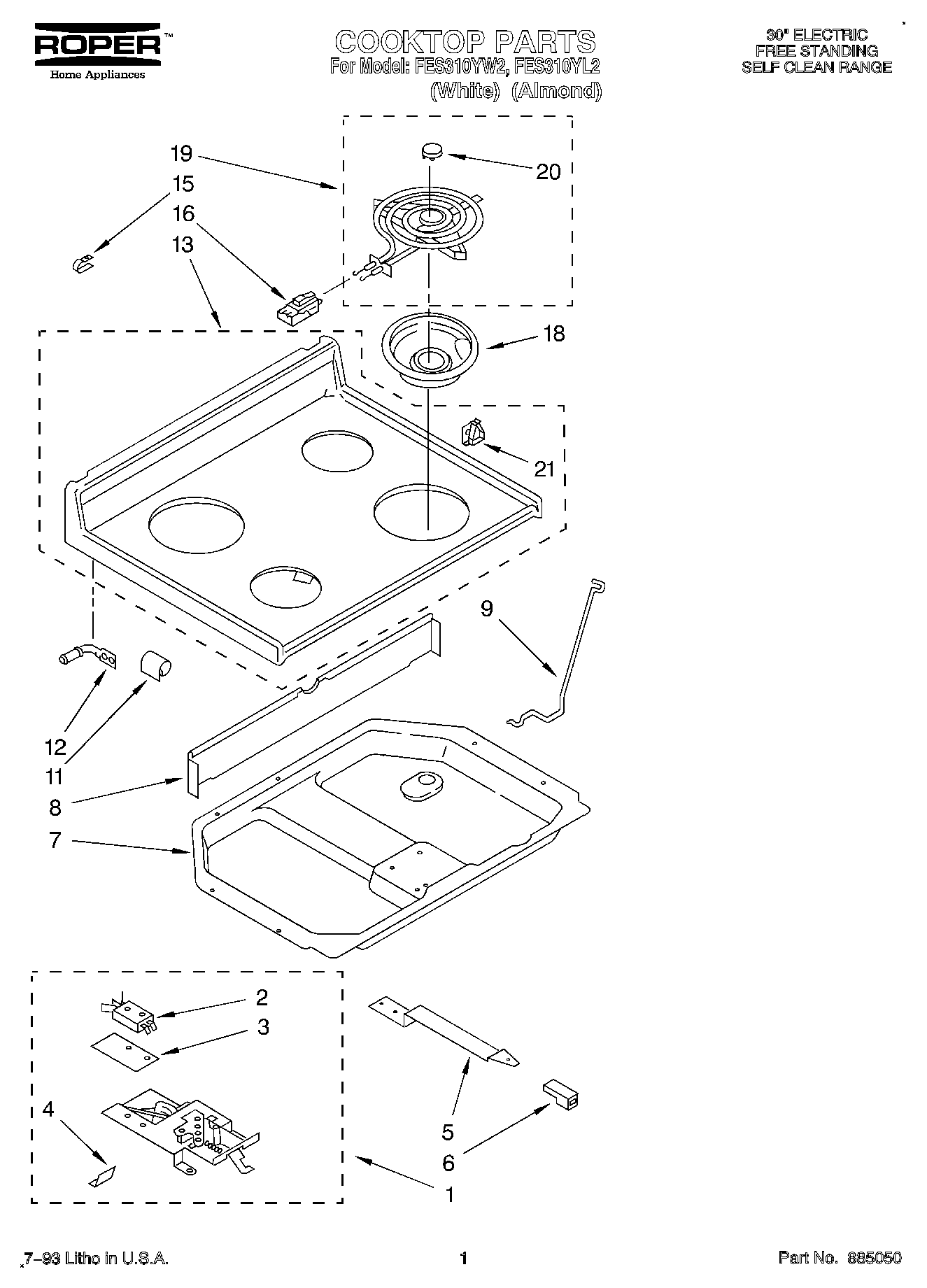

FES310YL2 01 – COOKTOP

Products

Position	Product
1	Latch & Switch Assembly
2	Safety Switch
2	Screw
3	Insulator, Switch
4	Screw
4	Shield, Latch
5	Handle, Latch
5	Screw
6	Knob, Latch
6	WP486579 Whirlpool Air Conditioner Screw
7	WP3390631 Whirlpool Screw
7	Box, Burner
8	Shield, Wiring
9	Rod, Cooktop
11	Bracket, Cooktop (2)
12	Pin, Cooktop (2)
13	Cooktop (Almond)
13	Cooktop (White)
15	SCREW
15	WP308605 Whirlpool Refrigerator Clamp
16	WP313808 Whirlpool Screw
16	WP4332752 Whirlpool Clip
18	WPW10196406 Whirlpool 6" Chrome Drip Bowl
18	DRIP BOWL 8" W/HOLE CHROME
19	WP660532 Whirlpool Oven Surface Element
19	WP660533 Whirlpool Oven 8" Surface Element
20	Medallion (4)
21	Nut (4)
21	814103 Whirlpool Clip
21	WP487887 Whirlpool Refrigerator Screw
21	Screw, 6-32 x 9/32 (4)
