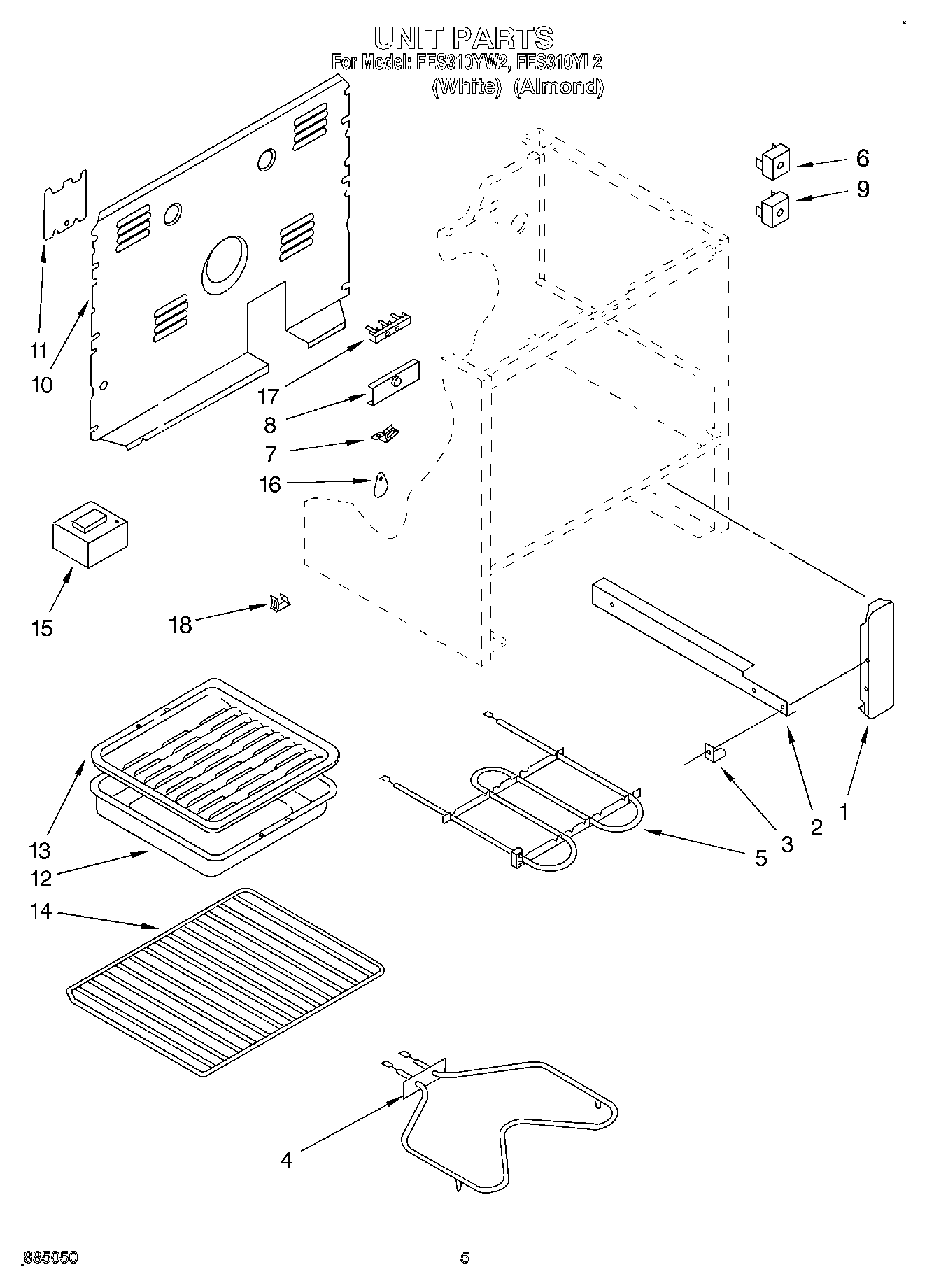

FES310YL2 04 – UNIT

Products

Position	Product
1	Bracket, Mounting (2)
2	Rail R.H. (Includes Illus. 3)
2	Rail L.H. (Includes Illus. 3)
3	Glide, Front (2)
3	Screw, 10A x 1/2 (2) (Black)
4	ELMNT-BAKE
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6	Sw
6	WP112432 Whirlpool Nut Assembly
7	Clip, Ground Wire
7	WPL 308498
8	Bracket, Service
9	Switch, Bake
9	WPL 314215
10	Cover, Rear
11	Cover, Service
11	SCREW
13	4396923 Whirlpool Broil Pan Set Gray Porcelain
14	WPL 308173
15	340184 Whirlpool Screw
15	Block, Balance
16	Screw (2)
16	WPL 311982
17	WP8203546 Whirlpool Terminal Block
17	Screw, (2) 10-16 x 1
18	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
18	WPL 3169093
18	WPL 3169094
18	98005642 Whirlpool Clip
