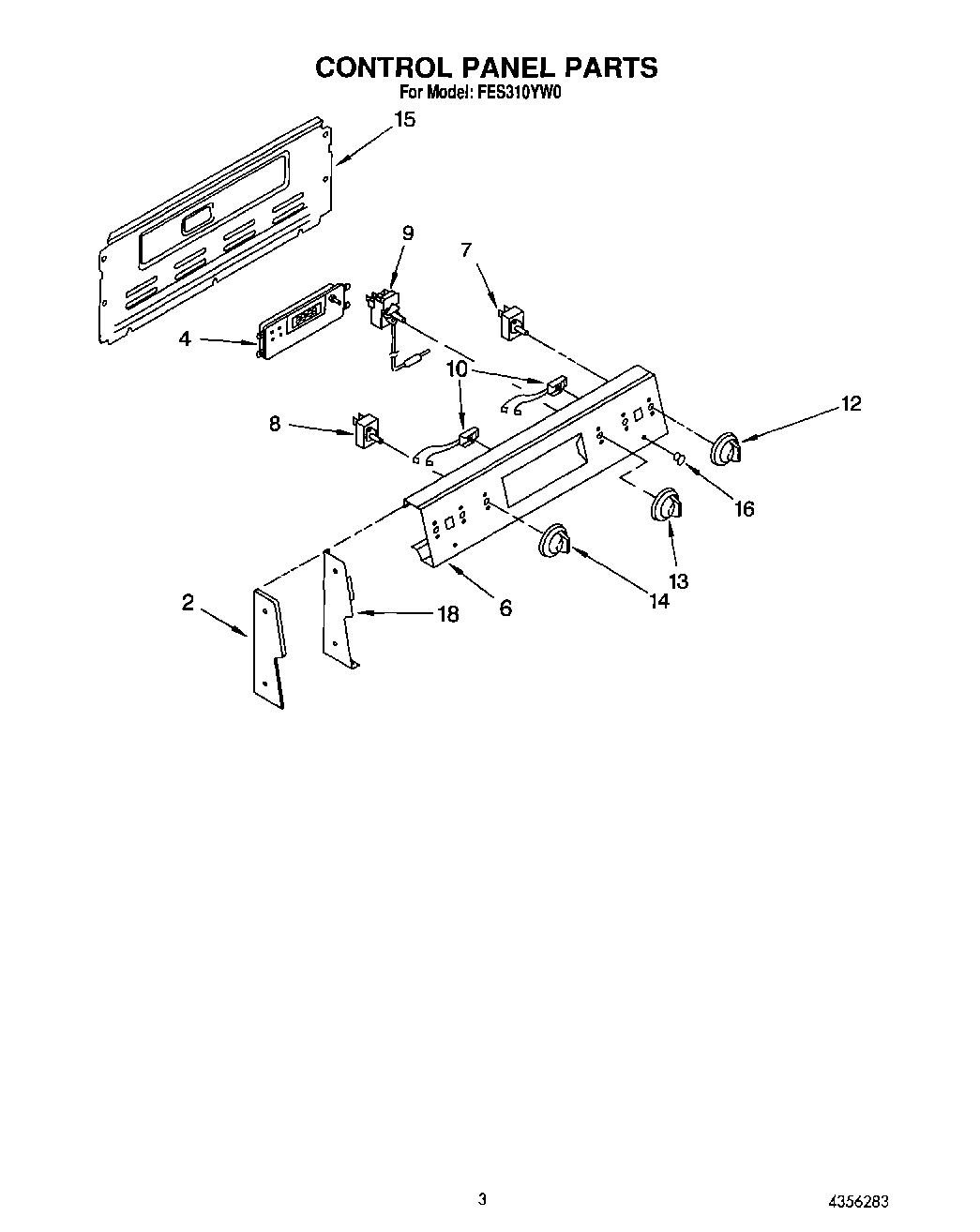

FES310YW0 03 – CONTROL PANEL

Products

PositionProduct
2End Cap R.H.
2End Cap L.H.
2Screw, 8 x 3/8 (4)
4Timer, Clock (Oven Control Assembly)
6Panel, Control
7SWITCH-INF
7WP3149404 Whirlpool Oven Surface Element Switch
8Switch, Selector
8WP486579 Whirlpool Air Conditioner Screw
9Thermostat, Oven
9WP313808 Whirlpool Screw
10Light, Indicator (250V)
10Light, Indicator (Includes No. 12) (Surface Unit On)
12WP3149983 Whirlpool Knob
13Knob, Oven Temp.
14Knob, Selector
15Harness-Conduit Asm.
15SCREW
16Lens, Amber
18SHIELD (LH-White/Almond)
18SHIELD (RH-White/Almond)
18WP965173 Whirlpool Dishwasher Screw
