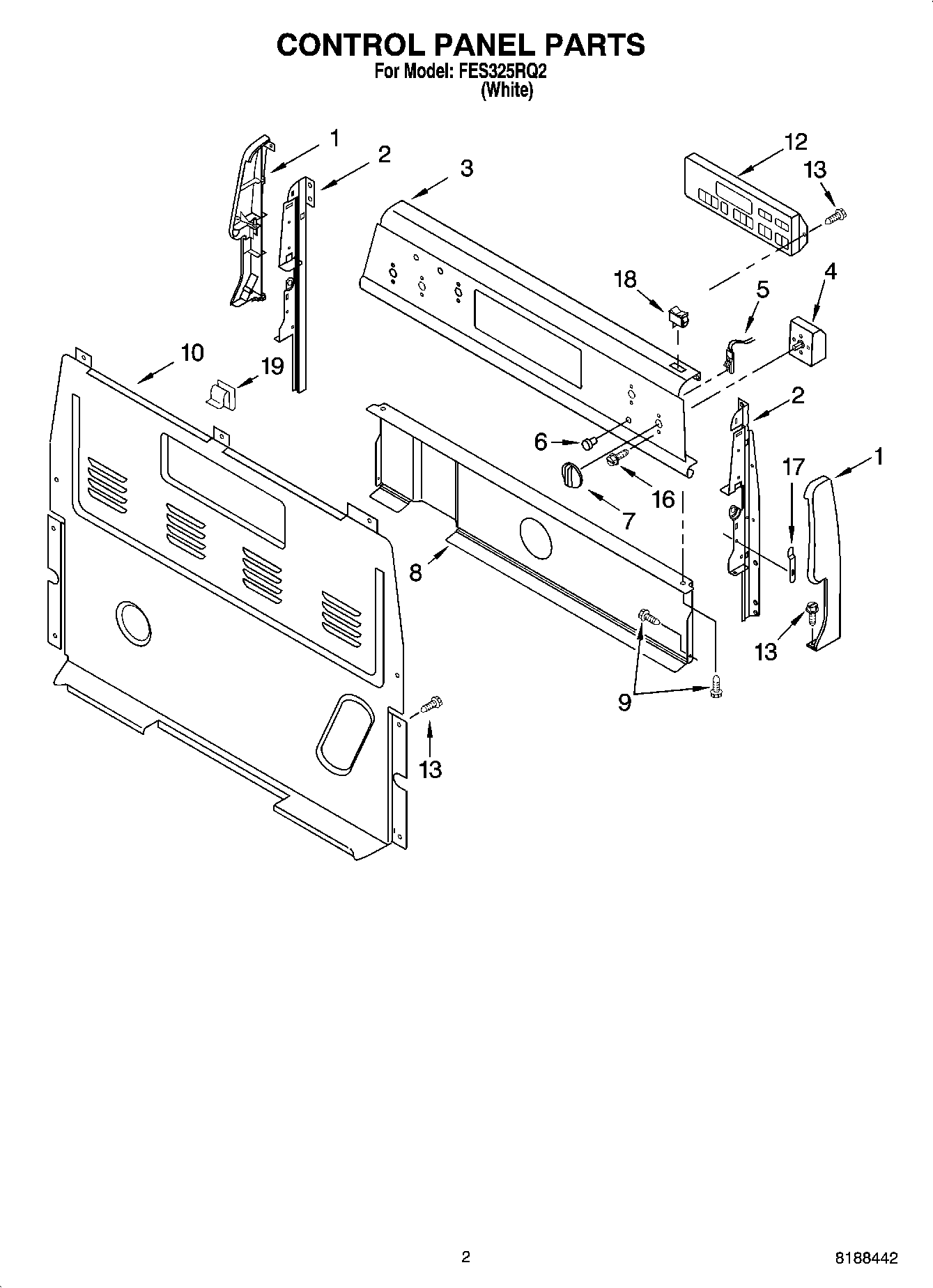

FES325RQ2 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Endcap (White Right Hand)
1	Endcap (White Left Hand)
2	Support, Endcap (Left Hand)
2	Support, Endcap (Right Hand)
3	Panel, Console
4	WP3149400 Whirlpool Oven Infinite Switch
4	WP3148952 Whirlpool Oven Infinite Switch
5	WP8523265 Whirlpool Indicator Light
6	WP3196068 Whirlpool Light Lens
7	WP3196232 Whirlpool Knob
8	Shield, Heat
9	Screw
10	WP8272473 Whirlpool Rear Cover
12	WP6610457 Whirlpool Electronic Control Board + Core
13	SCREW
16	WP3400882 Whirlpool Screw
17	3196200 Whirlpool Clip
18	3149360 Whirlpool Light Switch
19	WP8273564 Whirlpool Clip
