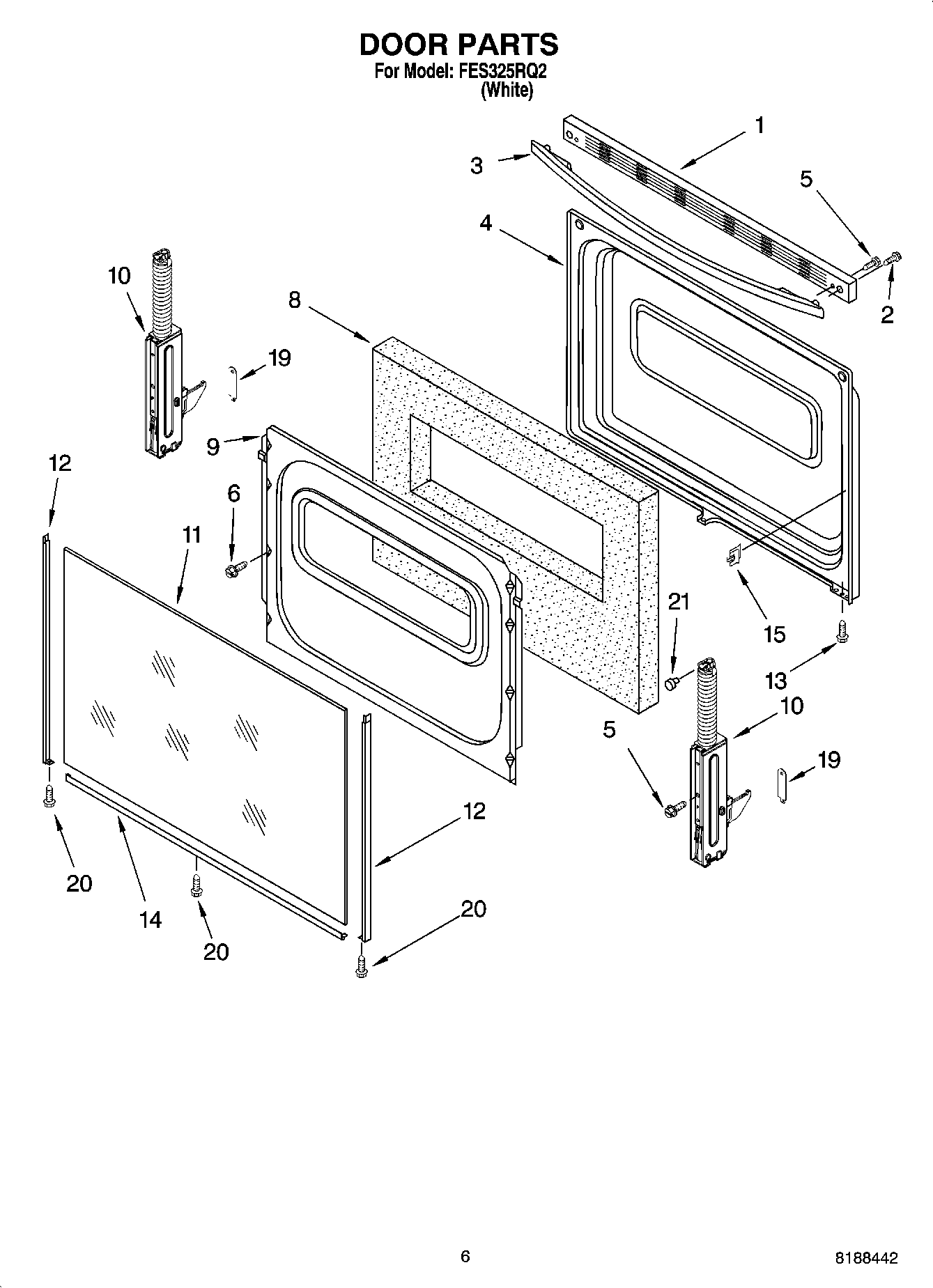

FES325RQ2 05 – DOOR PARTS, OPTIONAL PARTS

FES325RQ2 05 – DOOR PARTS, OPTIONAL PARTS

Written by

in

FES325RQ2 05 – DOOR PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI57387A7
3184020 Whirlpool Oven Wire
W11244557 Whirlpool Screw
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
3196696 Whirlpool Clip
Grease
WPL ARI57386A1
WPL ARI57385A4
WPL ARI57384A6
WPL ARI57383A2
WPL ARI57382A3
WPL 9758173
Harness, Wire (Pyro Rocker)
W11396691 Whirlpool Element Receptacle and Wire Kit
WPL ARI57388A6
WP3196154 Whirlpool Screw Assembly
Clip, Ground Wire
8212471 Whirlpool Oven Paint
4392899 Whirlpool Biscuit Touch-Up Paint
4396923 Whirlpool Broil Pan Set Gray Porcelain
FOIL, ALUMINUM OVEN (18“ X 25 )
WPW10208653 Whirlpool Insulation
4392901 Whirlpool Biscuit Spray Paint
511873 Whirlpool Refrigerator Paint
WPL 799832
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
350942 Whirlpool Spray Paint
799344 Whirlpool Refrigerator Paint
W11447673 Whirlpool Range Tip Anchor
72017 Whirlpool Appliance Touch-Up Paint White
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
8212473 Whirlpool Refrigerator Touch Up Paint
285006 Whirlpool Spray
Wire, 25` Roll (Red 14 Ga.)
350930 Whirlpool White Spray Paint
1WPW10016370 Whirlpool Door Trim
2WP3196164 Whirlpool Screw
3WPW10202216 Whirlpool Door Handle
49761342 Whirlpool Oven Door Liner
5W10777162 Whirlpool Screw
6WPW10031790 Whirlpool Screw
8WPW10278991 Whirlpool Insulation
9W11699790 Whirlpool Retainer
10W10347465 Whirlpool Door Hinge
11Glass, Door (White)
12WP8523166 Whirlpool Door Trim
12WP8523172 Whirlpool Left Door Trim
13W10491985 Whirlpool Screw
14WP8523175 Whirlpool Door Trim Assembly
15Clip, Glass (4)
199761517 Whirlpool Oven Clip Assembly
20WP3196175 Whirlpool Screw
21238614 Whirlpool Bumper Hinge
