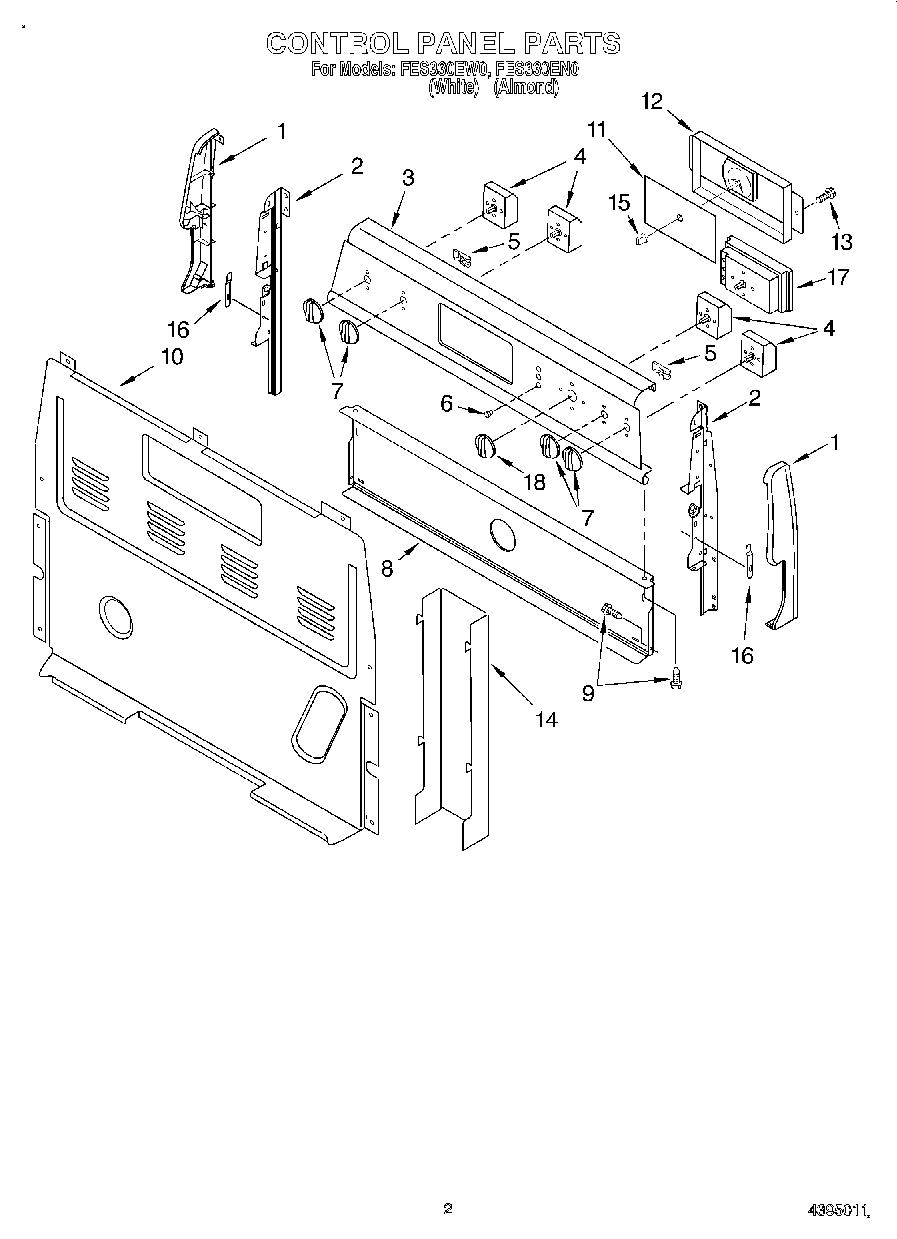

FES330EN0 02 – CONTROL PANEL

Products

PositionProduct
1Endcap (Left Hand)
1Endcap (Right Hand)
2Support, Endcap (Right Hand)
2Support, Endcap (Left Hand)
3Panel, Backguard
4WP3149404 Whirlpool Oven Surface Element Switch
4Switch, Infinite (Screw (8))
4SWITCH-INF
5Indicator, Surface
6WP3196068 Whirlpool Light Lens
7WP3196027 Whirlpool Knob
8Shield, Heat
9Screw
10WP8272473 Whirlpool Rear Cover
11Glass, Timer
12Timer, Clock
14SCREW
14WPW10326122 Whirlpool Black Cover
15WP3169181 Whirlpool Knob
163196200 Whirlpool Clip
17Control, Oven
18Knob, Oven Control
