FES330EN0 05 – DOOR, LIT/OPTIONAL

FES330EN0 05 – DOOR, LIT/OPTIONAL

Written by

in

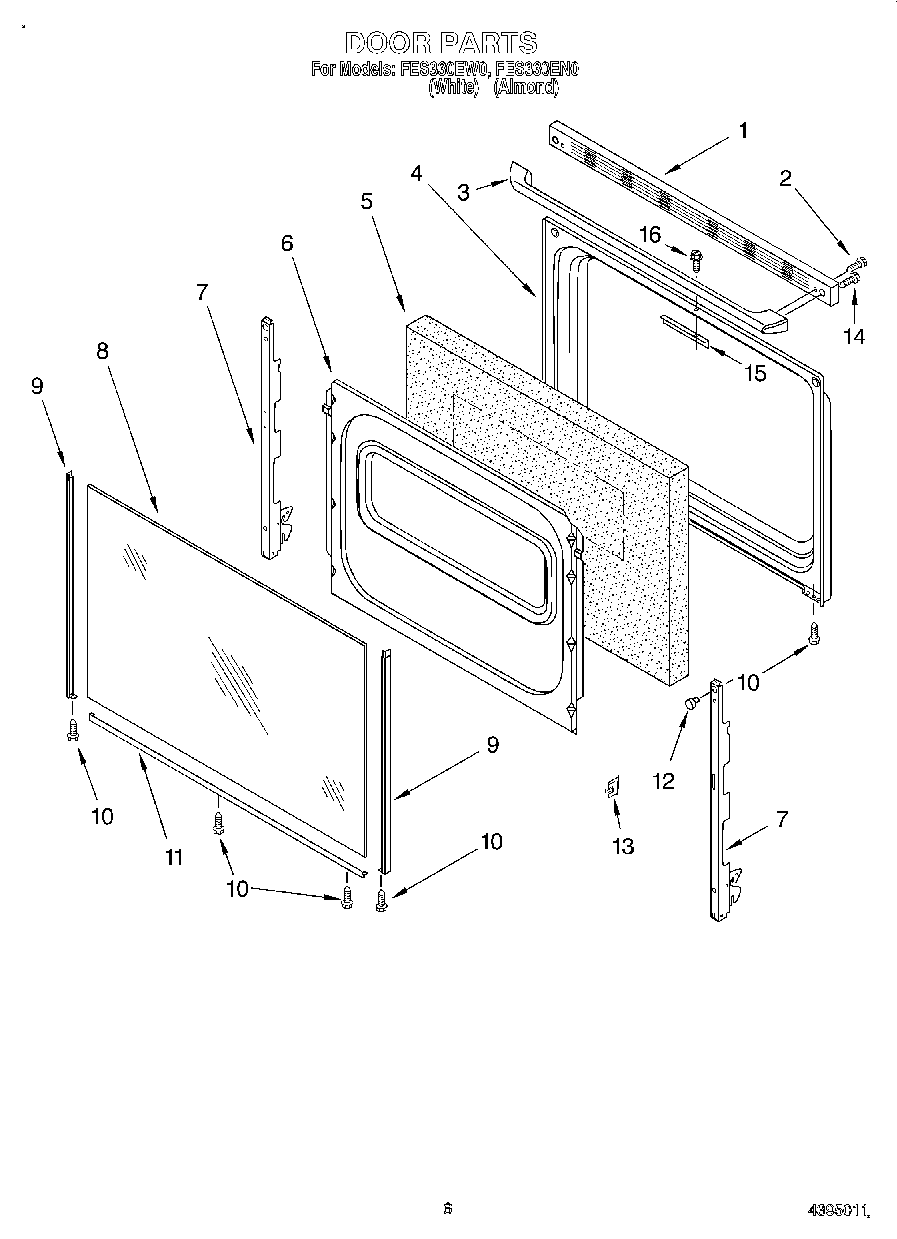

FES330EN0 05 – DOOR, LIT/OPTIONAL

Products

Position	Product
	3196696 Whirlpool Clip
	Literature (Installation, Instructions (Template))
	Clip, Ground Wire
	3400964 Whirlpool Oven Clip
	WPL LIT3195944
	Harness, Wire (Door Switch)
	W11244557 Whirlpool Screw
	WPL LIT3196485
	WP3196154 Whirlpool Screw Assembly
	3184020 Whirlpool Oven Wire
	WPL 3196484
	WPL LIT3196280
	W11396691 Whirlpool Element Receptacle and Wire Kit
1	Trim, Top (Black)
2	WP3196164 Whirlpool Screw
3	WPW10202217 Whirlpool Door Handle
4	Liner, Door
5	Insulation, Door
6	W11699790 Whirlpool Retainer
7	Hinge, Door (2)
8	Glass, Outer Door
9	Trim, Door Side (Left Hand)
9	Trim, Door Side (Right Hand)
10	W10491985 Whirlpool Screw
11	8184858 Whirlpool Door Trim
12	238614 Whirlpool Bumper Hinge
13	Clip, Glass (4)
14	WP179051 Whirlpool Screw
15	Bracket, Latch
16	Wire (12 Ga. 150 c Black)
16	18 Ga. 80~c Rating (Red)
16	Wire (14 Ga. 200 c Brown)
16	Golden Harvest
16	Grease
16	1
16	WP3400832 Whirlpool Screw
16	8212471 Whirlpool Oven Paint
16	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
16	Wire (14 Ga. 150 c Yellow)
16	Wire (14 Ga. 150 c Orange)
16	Wire (14 Ga. 150 c Green)
16	350942 Whirlpool Spray Paint
16	WPL 72112
16	Platinum (Uncut)
16	Enamal, Toast (1 Qt. Uncut)
16	Paint, Spray (13 Oz.) (Platinum)
16	Toast
16	Golden Harvest (Uncut)
16	72113 Whirlpool Touch-Up Paint
16	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
16	Almond (Uncut)
16	WP72107 Whirlpool Touchup
16	799344 Whirlpool Refrigerator Paint
16	72017 Whirlpool Appliance Touch-Up Paint White
16	350956 Whirlpool Spray Assembly
16	511873 Whirlpool Refrigerator Paint
16	WPL 799832
16	Wire (14 Ga. 150 c Brown)
16	Wire (14 Ga. 150 c Blue)
16	242831 Whirlpool Oven Wire
16	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
16	Paint, Spray 13 Oz. (Avocado)
16	paint, spray 13 oz. (coffee)
16	Paint, Touch-Up 1/2 Oz. (Coffee)
16	72109 Whirlpool Dacor Avocado Touch-Up Paint
16	285006 Whirlpool Spray
16	Wire, 25“ Roll (White 14 GA.)
16	Wire, 25` Roll (Red 14 Ga.)
16	Wire, 25` Roll (Black 14 Ga.)
16	FOIL, ALUMINUM OVEN (18“ X 25 )
16	WPW10208653 Whirlpool Insulation
16	350930 Whirlpool White Spray Paint
