FES330GW0 05 – DOOR, LIT/OPTIONAL

FES330GW0 05 – DOOR, LIT/OPTIONAL

Written by

in

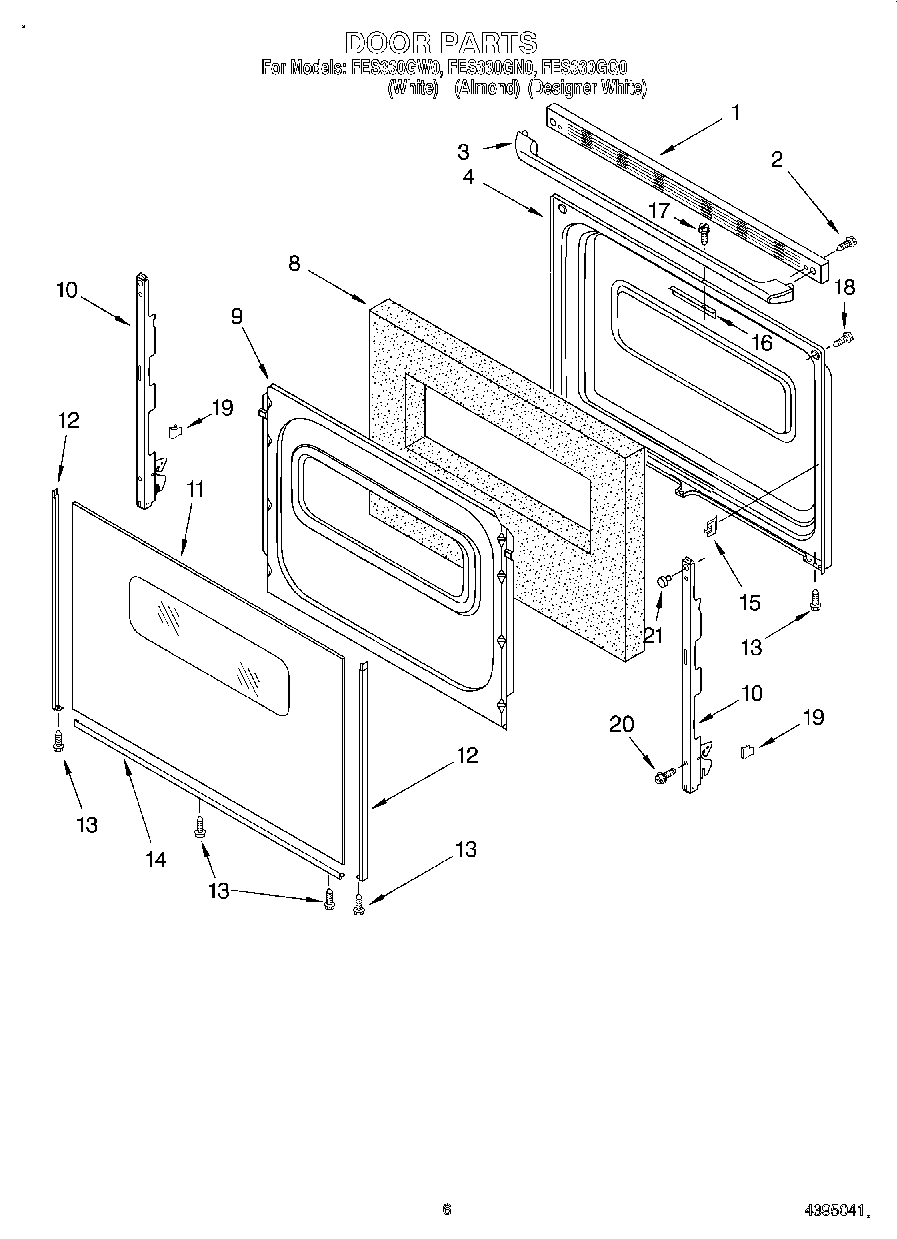

FES330GW0 05 – DOOR, LIT/OPTIONAL

Products

Position	Product
	Harness, Wire (Door Switch)
	Literature (Installation, Instructions (Template))
	Literature (Instruction, Installation)
	W11396691 Whirlpool Element Receptacle and Wire Kit
	3196696 Whirlpool Clip
	3184020 Whirlpool Oven Wire
	Clip, Ground Wire
	3400964 Whirlpool Oven Clip
	Safer Cooking Tips
	WPL LIT8053298
	814381 Whirlpool Pin
	WPL 8053625
	WPL LIT8053404
1	Trim, Top (Black)
1	WPW10016370 Whirlpool Door Trim
2	WP3196164 Whirlpool Screw
3	W10202219 Whirlpool Door Handle Assembly
3	WPW10202217 Whirlpool Door Handle
4	Liner, Door
8	Insulation, Door
9	W11699790 Whirlpool Retainer
10	Hinge, Door (2)
11	Glass, Door (Black)
11	Glass, Door (White)
13	W10491985 Whirlpool Screw
14	8184858 Whirlpool Door Trim
14	8184859 Whirlpool Range Oven Door Trim Kit (2 Sides, 1 Bottom)
15	Clip, Glass (4)
16	Bracket, Latch
17	WP3400832 Whirlpool Screw
18	WP179051 Whirlpool Screw
19	WP3196925 Whirlpool Clip Assembly
20	WP3196175 Whirlpool Screw
21	Wire (14 Ga. 150 c Yellow)
21	Wire (12 Ga. 150 c Black)
21	18 Ga. 80~c Rating (Red)
21	Wire (14 Ga. 200 c Brown)
21	1
21	8212471 Whirlpool Oven Paint
21	72113 Whirlpool Touch-Up Paint
21	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
21	Grease
21	Wire (14 Ga. 150 c Orange)
21	Wire (14 Ga. 150 c Green)
21	350942 Whirlpool Spray Paint
21	WPL 72112
21	Platinum (Uncut)
21	Enamal, Toast (1 Qt. Uncut)
21	Paint, Spray (13 Oz.) (Platinum)
21	Toast
21	Golden Harvest (Uncut)
21	Golden Harvest
21	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
21	Almond (Uncut)
21	WP72107 Whirlpool Touchup
21	799344 Whirlpool Refrigerator Paint
21	72017 Whirlpool Appliance Touch-Up Paint White
21	350956 Whirlpool Spray Assembly
21	511873 Whirlpool Refrigerator Paint
21	WPL 799832
21	238614 Whirlpool Bumper Hinge
21	Wire (14 Ga. 150 c Brown)
21	Wire (14 Ga. 150 c Blue)
21	242831 Whirlpool Oven Wire
21	Paint, Touch-Up 1/2 Oz. (Coffee)
21	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
21	Paint, Spray 13 Oz. (Avocado)
21	paint, spray 13 oz. (coffee)
21	72109 Whirlpool Dacor Avocado Touch-Up Paint
21	285006 Whirlpool Spray
21	Wire, 25“ Roll (White 14 GA.)
21	Wire, 25` Roll (Red 14 Ga.)
21	Wire, 25` Roll (Black 14 Ga.)
21	FOIL, ALUMINUM OVEN (18“ X 25 )
21	WPW10208653 Whirlpool Insulation
21	350930 Whirlpool White Spray Paint
