FES330KN0 01 – COOKTOP, LITERATURE

FES330KN0 01 – COOKTOP, LITERATURE

Written by

in

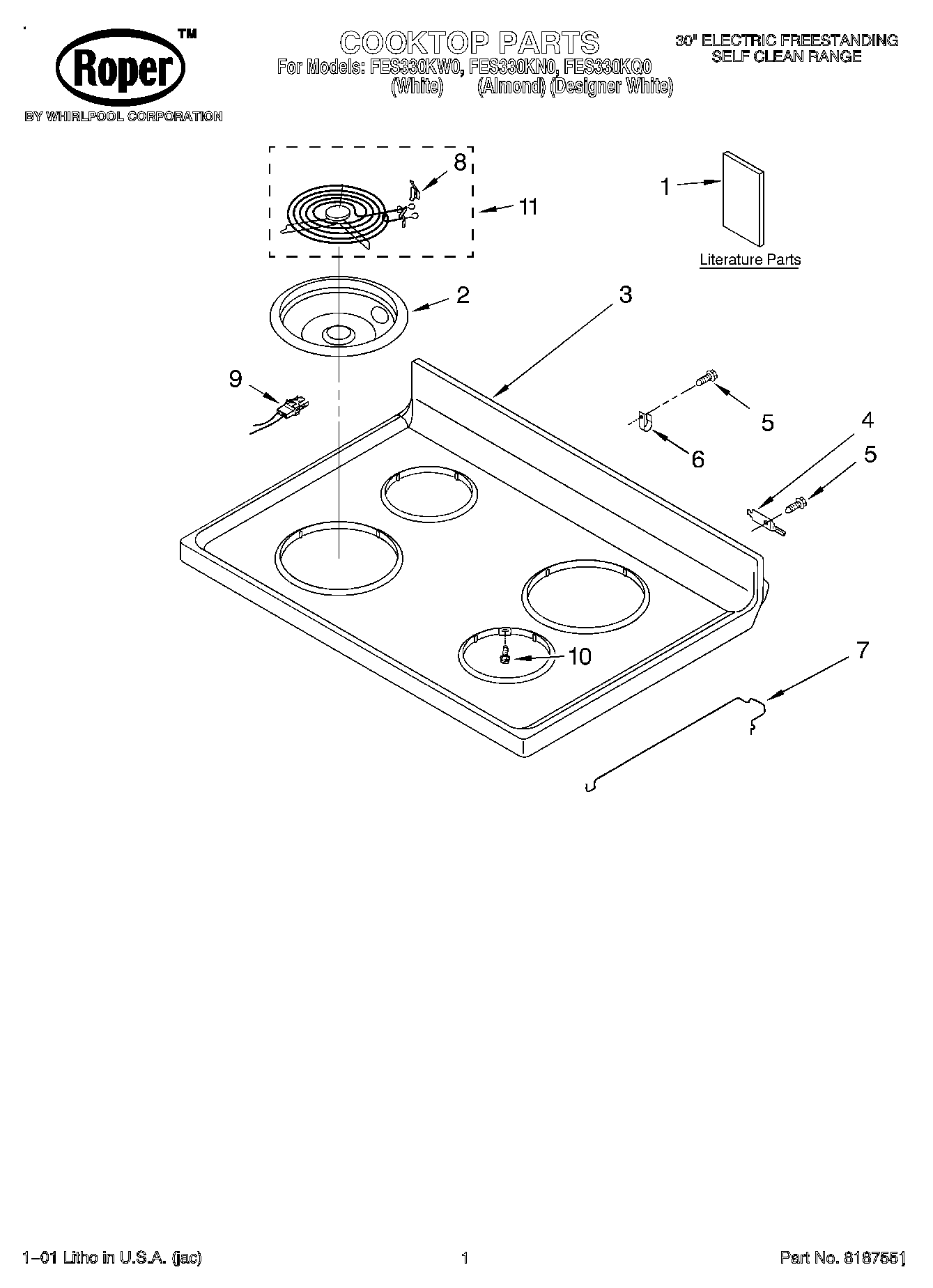

FES330KN0 01 – COOKTOP, LITERATURE

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Guide, Use & Care)
1WPL LIT8053298
1Literature (Instruction, Installation)
1Literature (Installation, Instructions (Template))
2WPW10196406 Whirlpool 6" Chrome Drip Bowl
2DRIP BOWL 8" W/HOLE CHROME
3Cooktop (Almond)
38195532 Whirlpool Cooktop Power Switch
4WP3195060 Whirlpool Cooktop Pin
5SCREW
6WP308605 Whirlpool Refrigerator Clamp
7WP3195812 Whirlpool Cooktop Rod
8WP3195917 Whirlpool Clip Assembly
9814399 Whirlpool Receptacle Kit
10WP3196154 Whirlpool Screw Assembly
11WP9761346 Whirlpool Stove Surface Burner Element
11WPW10345407 Whirlpool Surface Element
