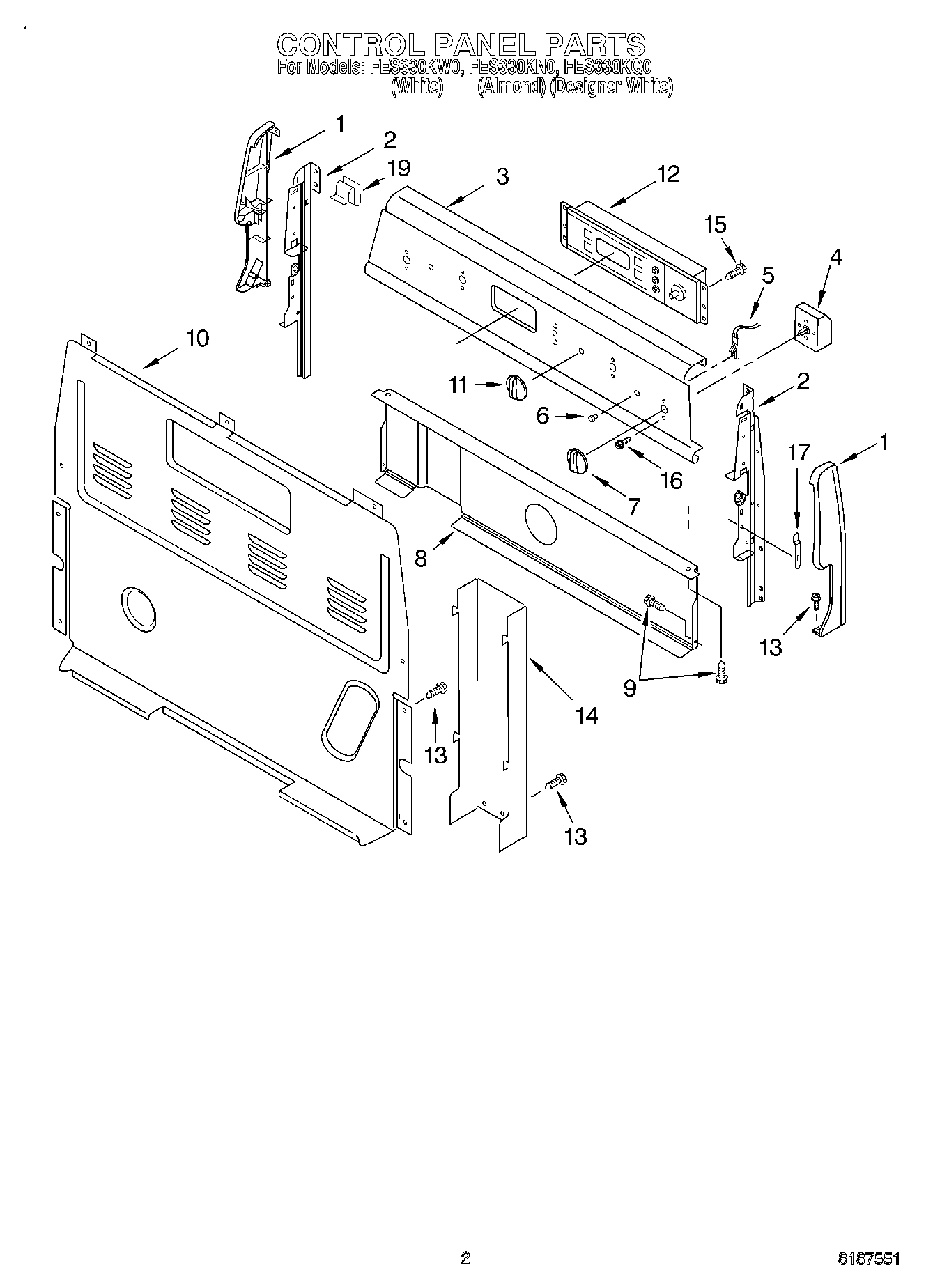

FES330KQ0 02 – CONTROL PANEL

Products

Position	Product
1	Endcap (Left Hand)
1	Endcap (Right Hand)
1	Endcap (Right Hand)
1	Endcap (Left Hand)
2	Support, Endcap (Left Hand)
2	Support, Endcap (Right Hand)
3	Panel, Backguard (Black)
3	Panel, Backguard (White)
4	SWITCH-INF
4	WP3149404 Whirlpool Oven Surface Element Switch
5	Indicator, Surface
6	WP3196068 Whirlpool Light Lens
7	WP3196028 Whirlpool Knob
7	WP3196027 Whirlpool Knob
8	Shield, Heat
9	Screw
10	WP8272473 Whirlpool Rear Cover
11	Knob-150 Control (Black)
11	Knob-150 Control (White)
12	Control, Range (Black)
12	Control-Range (White)
13	SCREW
14	WPW10326122 Whirlpool Black Cover
15	WP3196557 Whirlpool Screw
16	WP3400882 Whirlpool Screw
17	3196200 Whirlpool Clip
19	WP8273564 Whirlpool Clip
